QTech QSW-4700 Series

QSW-4700 Series Switches Hardware Installation and Reference Guide
Product Overview
37
Model
QSW-4700-52F
EMI
Certification
GB9254-2008CLASS A
Safety
Regulation
Compliance
GB4943-2011
Dimensions
(W x D x H)
442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Weight
4.5 kg (9.92 lbs.)
1.7.2. Appearance
The front panel of the QSW-4700-52F switch provides 48 GE SFP ports, four 10GE SFP+ ports,
one management port, one Console port and one USB port. The back panel has two power
supply module slots.

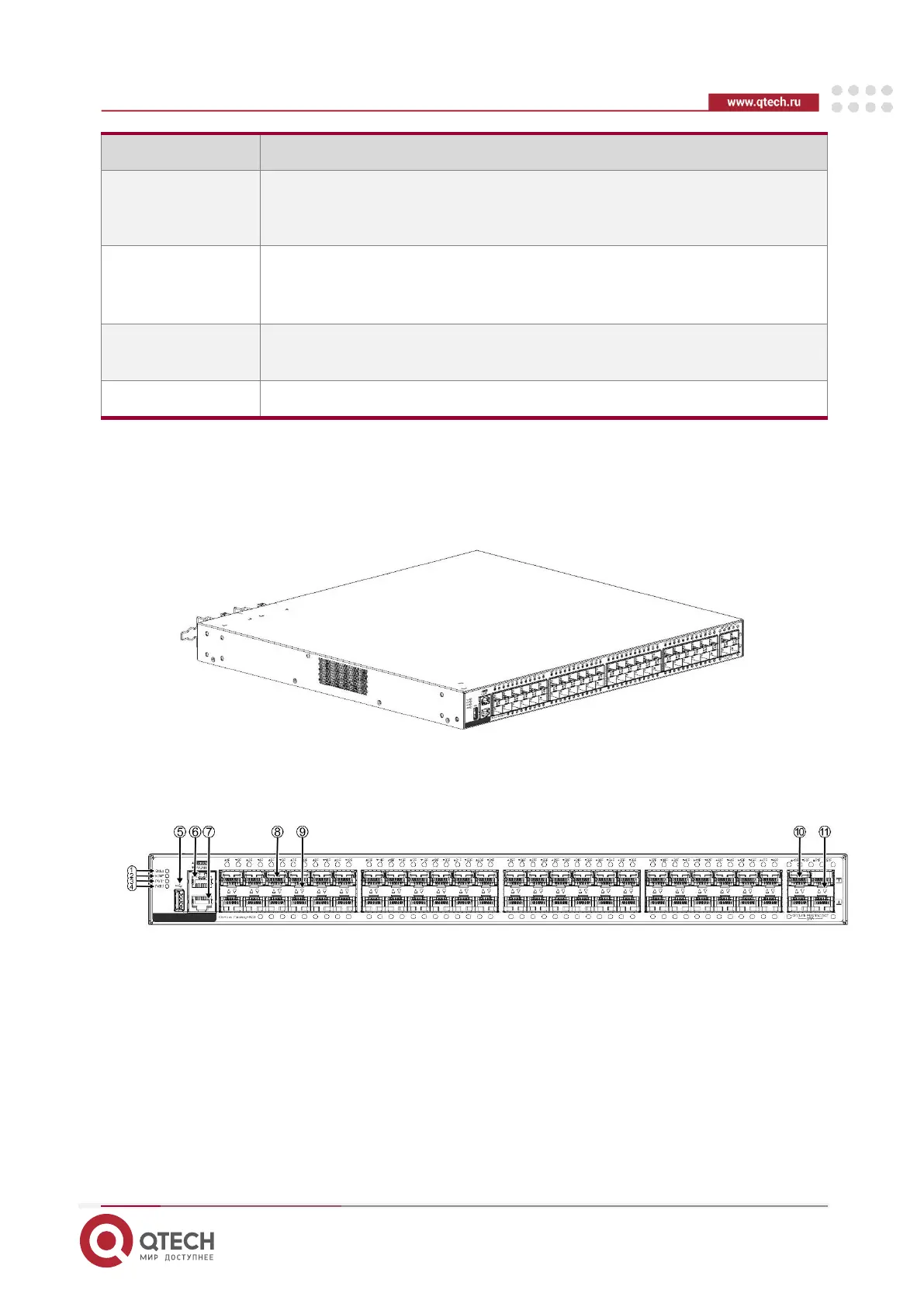

Figure 1-21 QSW-4700-52F Switch Appearance
1.7.2.1. Front Panel
Figure 1-22 Front Panel of QSW-4700-52F
1. System Status LED
2. Management Port LED
3. PWR1 Status LED
4. PWR2 Status LED
5. USB Port
6. Console Port
7. Management Port
8. GE SFP Port
