INSTALLING THE SWITCH
58
1. Rotate the brackets by 90 degrees and secure the brackets to the switch by using the
screws.

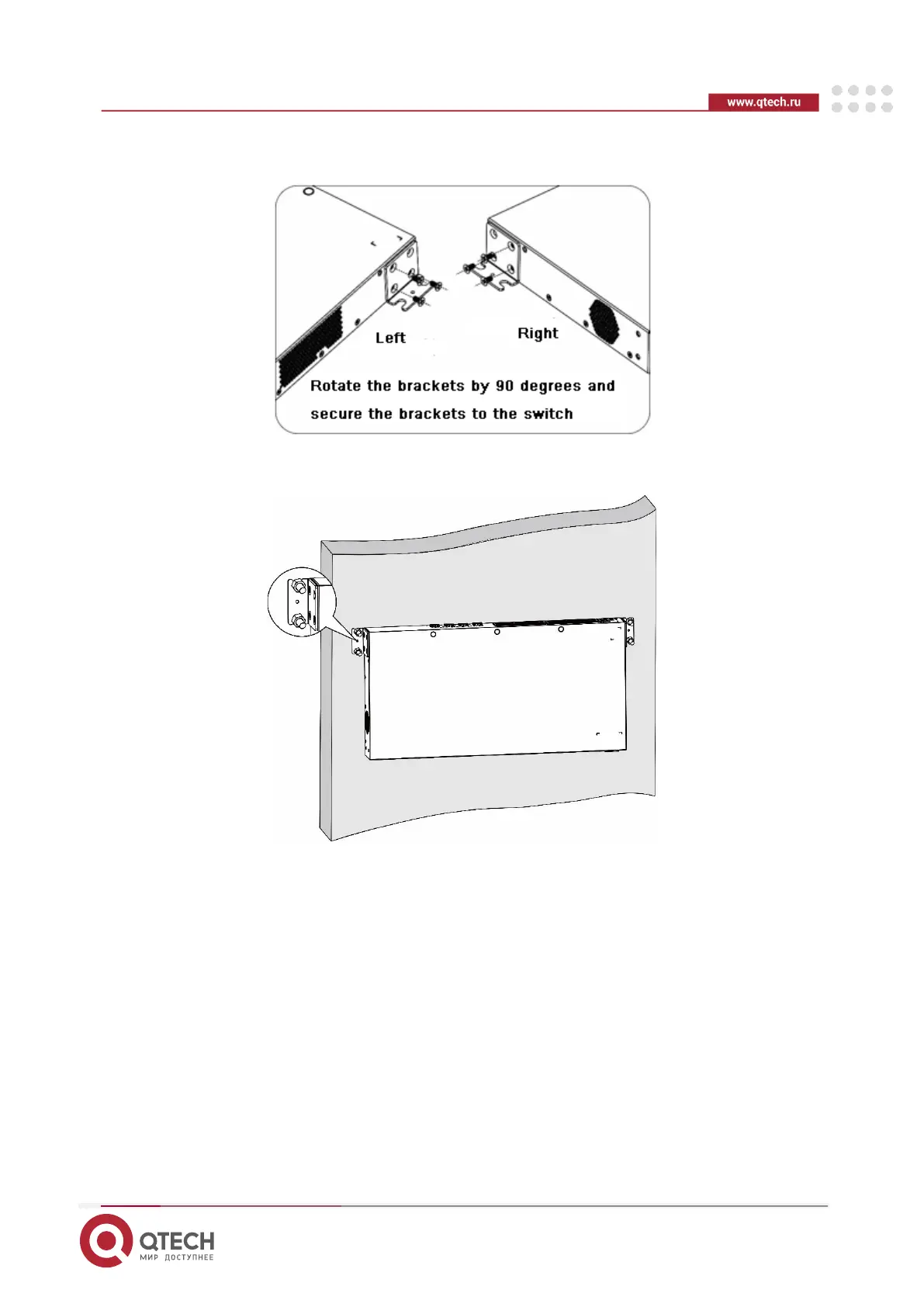

Figure 3-5 Securing Brackets
2. Secure the switch by using the expansion bolts.
Figure 3-6 Securing the Switch
3.3.3. Installing the Switch on a Workbench
In most cases, users do not have a standard 19-inch rack. Therefore, the most popular method
is to place the switch on a clean workbench.
• Attach the four rubber pads to the four corners on the bottom.
• Place the switch on the workbench to allow for adequate airflow.
3.4. Installing and Removing a Power Supply Module
Wear an anti-static wrist strap before the following operation.
3.4.1. Installing the AC Power Supply Module
1. Remove the module from its packing materials and make sure the input specifications
meet requirements.
