QSW-4700 Series Switches Hardware Installation and Reference Guide
Appendix
76
The cable management brackets and cabling troughs inside and outside the rack should
be smooth without sharp corners.
The metal hole traversed by cables should have a smooth and fully rounding surface or
an insulated lining.
Use cable ties to bundle up cables properly. Please do not connect two or more cable
ties to bundle up cables.
After bundling up cables with cable ties, cut off the remaining part. The cut should be
smooth and trim, without sharp corners.

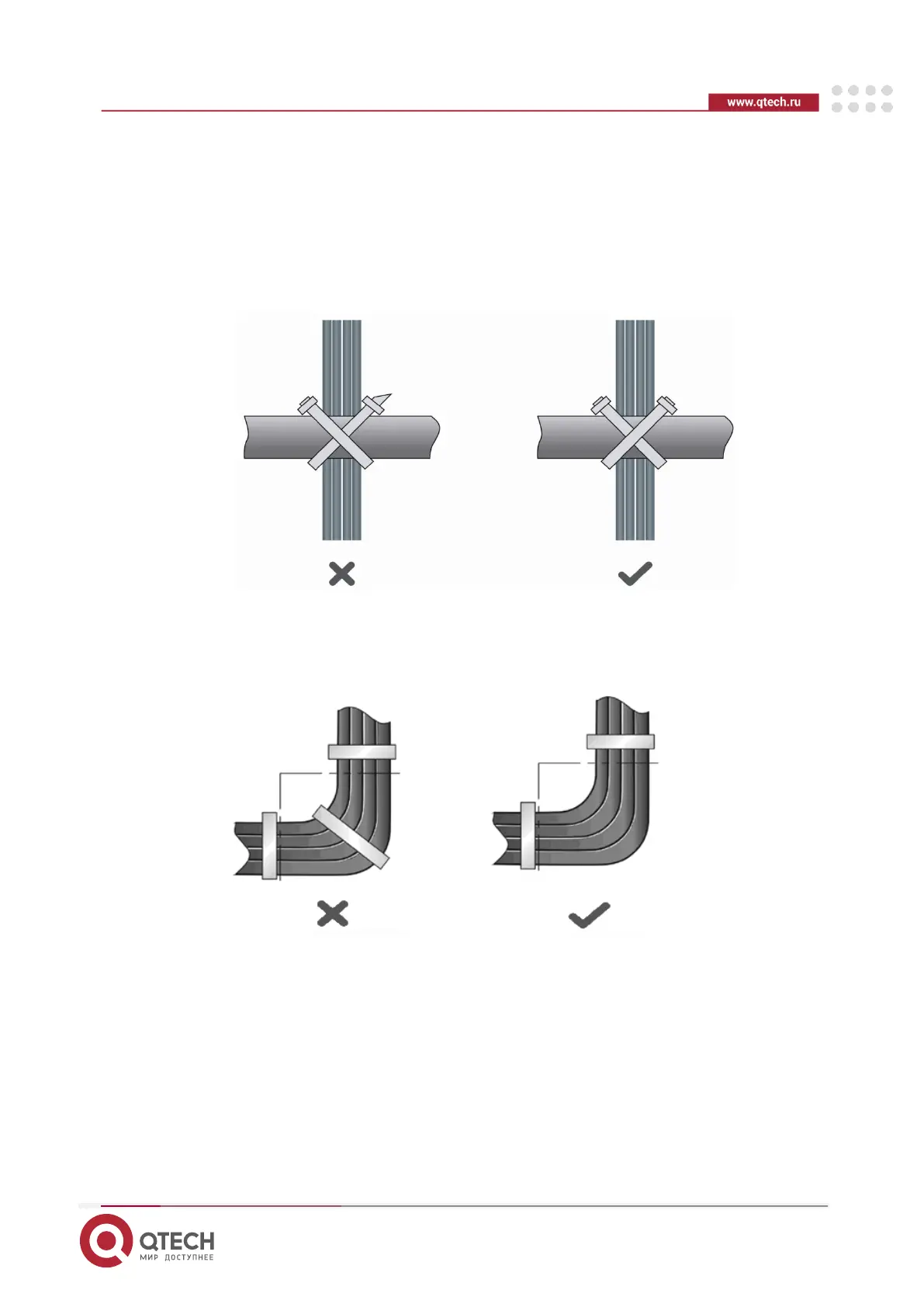

Figure 7-7 Binding Cables (2)
When cables need to be bent, please bundle them up but do not tie them where the
cables will be bent. When cables need to be bent, please bundle them up but do not tie
them where the cables will be bent.
Figure 7-8 Binding Cables (3)
Cables not to be assembled or remaining parts of cables should be folded and placed
in a proper position of the rack or cable trough. The proper position refers to a position
that does not affect device running or damage the switch or cable.
220 V and 48 V power cords must not be bundled on the guide rails of moving parts.
The power cords connecting moving parts such as door grounding wires should be
reserved with some access after being assembled to avoid suffering tension or stress.
After the moving part is installed, the remaining cable part should not touch heat
sources, sharp corners, or sharp edges. If heat sources cannot be avoided, high-
temperature cables should be used. If heat sources cannot be avoided, high-
temperature cables should be used.
