Spec:
M22759-12-20-16C
Date:
July 16, 2009
By:
Approved:

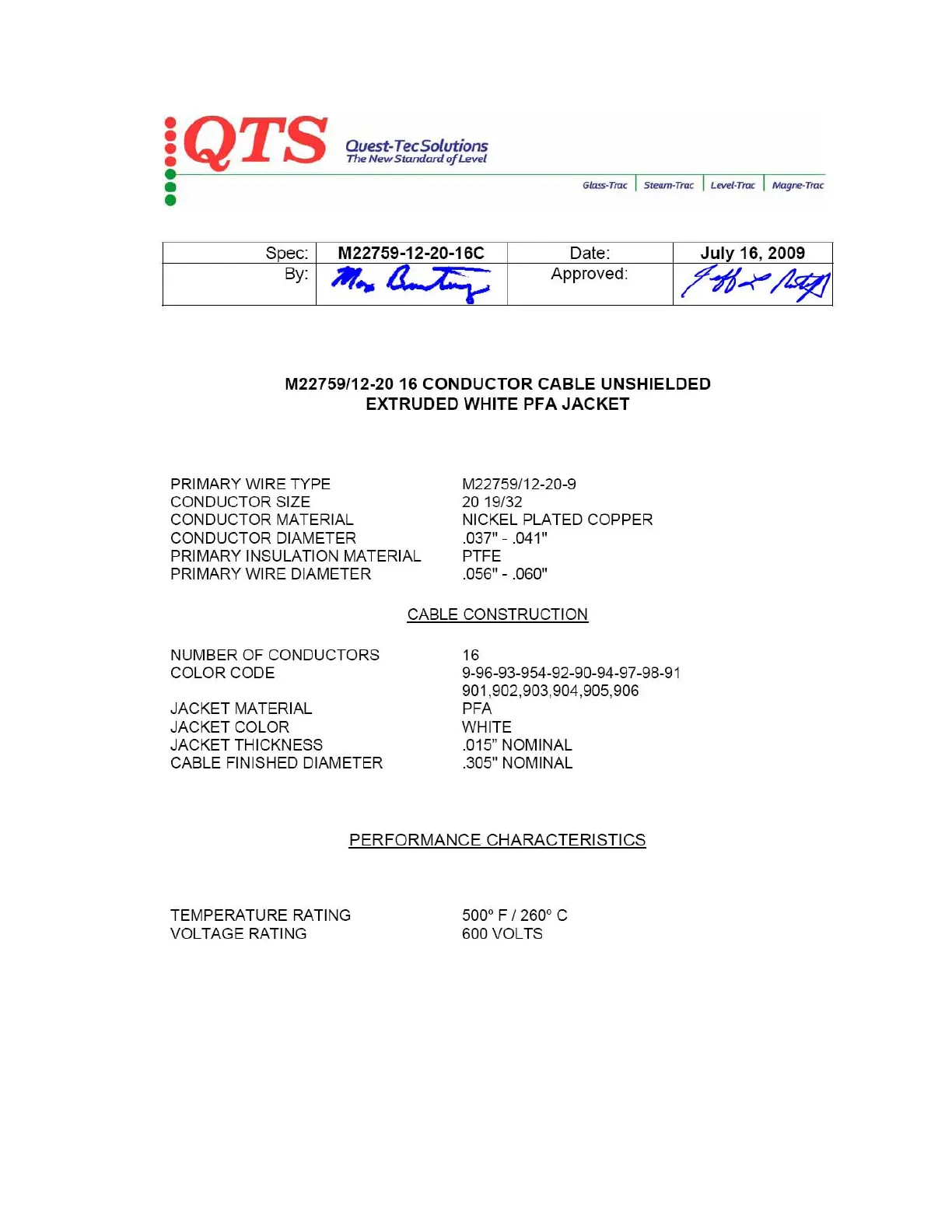

M22759/12-20 16 CONDUCTOR CABLE UNSHIELDED
EXTRUDED WHITE PFA JACKET
Scope: This cable is designed specifically for use with Level-Trac Remote Level Indicator Sys-
tems for the span between the probe manifold and control unit. The probe side will be termi-
nated with high temperature, nickel plated steel, un-insulated ring terminals for connection to
the probes and common lug. Although designed specifically for Level-Trac equipment it is suit-
able for most high temperature, unshielded, instrument applications.
PRIMARY WIRE TYPE M22759/12-20-9
CONDUCTOR SIZE 20 19/32
CONDUCTOR MATERIAL NICKEL PLATED COPPER
CONDUCTOR DIAMETER .037" - .041"
PRIMARY INSULATION MATERIAL PTFE
PRIMARY WIRE DIAMETER .056" - .060"
CABLE CONSTRUCTION
NUMBER OF CONDUCTORS 16
COLOR CODE 9-96-93-954-92-90-94-97-98-91
901,902,903,904,905,906
JACKET MATERIAL PFA
JACKET COLOR WHITE
JACKET THICKNESS .015” NOMINAL
CABLE FINISHED DIAMETER .305" NOMINAL
PERFORMANCE CHARACTERISTICS
TEMPERATURE RATING 500º F / 260º C
VOLTAGE RATING 600 VOLTS
Appendix B
14
