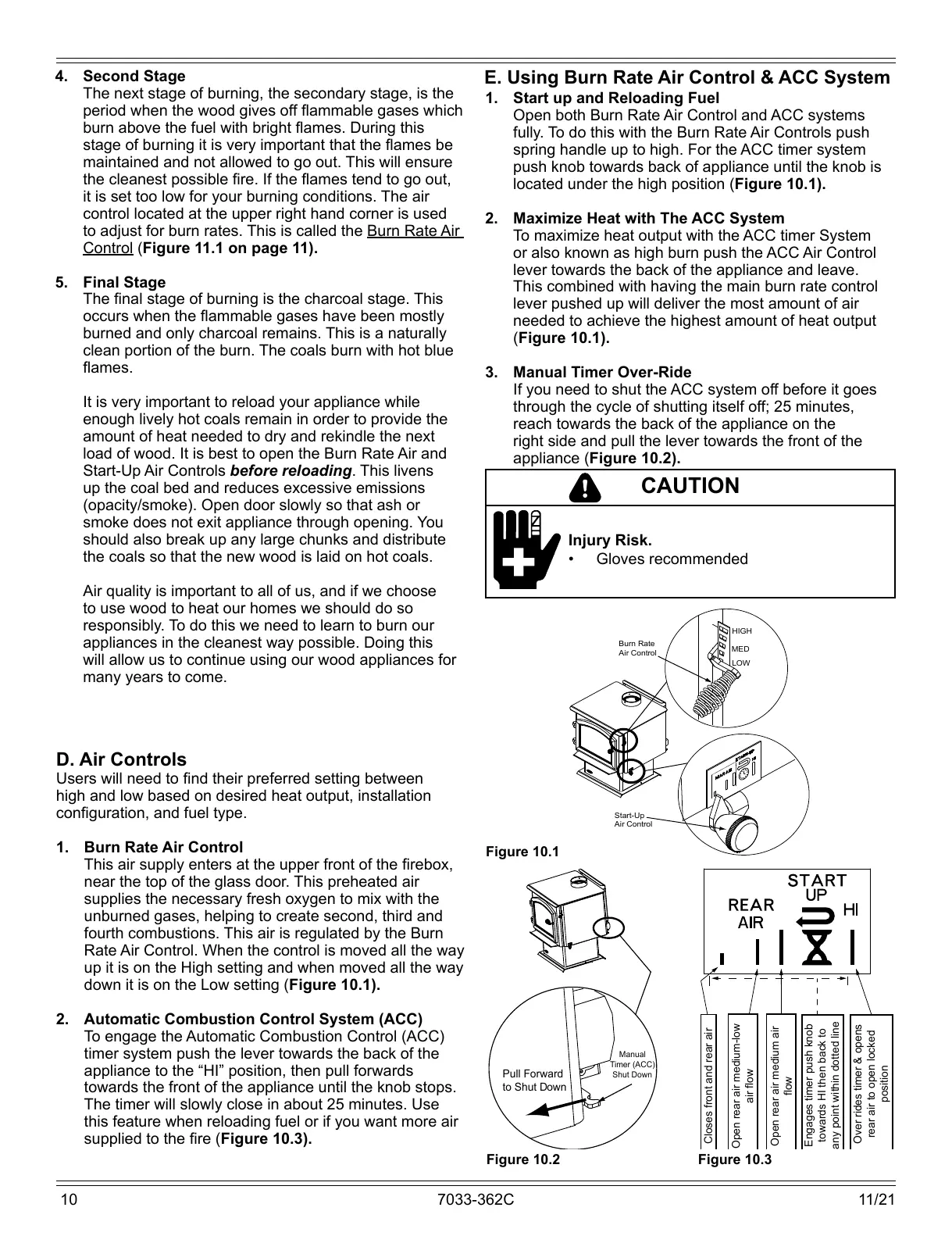

10 7033-362C 11/21
D. Air Controls
E. Using Burn Rate Air Control & ACC System
1. Start up and Reloading Fuel
Open both Burn Rate Air Control and ACC systems
fully. To do this with the Burn Rate Air Controls push
spring handle up to high. For the ACC timer system
push knob towards back of appliance until the knob is
located under the high position (Figure 10.1).
2. Maximize Heat with The ACC System
To maximize heat output with the ACC timer System
or also known as high burn push the ACC Air Control
lever towards the back of the appliance and leave.
This combined with having the main burn rate control
lever pushed up will deliver the most amount of air
needed to achieve the highest amount of heat output
(Figure 10.1).
3. Manual Timer Over-Ride
If you need to shut the ACC system off before it goes
through the cycle of shutting itself off; 25 minutes,
reach towards the back of the appliance on the
right side and pull the lever towards the front of the
appliance (Figure 10.2).
4. Second Stage
The next stage of burning, the secondary stage, is the
period when the wood gives off ammable gases which
burn above the fuel with bright ames. During this
stage of burning it is very important that the ames be
maintained and not allowed to go out. This will ensure
the cleanest possible re. If the ames tend to go out,
it is set too low for your burning conditions. The air
control located at the upper right hand corner is used
to adjust for burn rates. This is called the Burn Rate Air
Control (Figure 11.1 on page 11).
5. Final Stage
The nal stage of burning is the charcoal stage. This
occurs when the ammable gases have been mostly
burned and only charcoal remains. This is a naturally
clean portion of the burn. The coals burn with hot blue
ames.
It is very important to reload your appliance while
enough lively hot coals remain in order to provide the
amount of heat needed to dry and rekindle the next
load of wood. It is best to open the Burn Rate Air and
Start-Up Air Controls before reloading. This livens
up the coal bed and reduces excessive emissions
(opacity/smoke). Open door slowly so that ash or
smoke does not exit appliance through opening. You
should also break up any large chunks and distribute
the coals so that the new wood is laid on hot coals.
Air quality is important to all of us, and if we choose
to use wood to heat our homes we should do so
responsibly. To do this we need to learn to burn our
appliances in the cleanest way possible. Doing this
will allow us to continue using our wood appliances for
many years to come.
Users will need to nd their preferred setting between
high and low based on desired heat output, installation
conguration, and fuel type.
1. Burn Rate Air Control
This air supply enters at the upper front of the rebox,
near the top of the glass door. This preheated air
supplies the necessary fresh oxygen to mix with the
unburned gases, helping to create second, third and
fourth combustions. This air is regulated by the Burn
Rate Air Control. When the control is moved all the way
up it is on the High setting and when moved all the way
down it is on the Low setting (Figure 10.1).
2. Automatic Combustion Control System (ACC)
To engage the Automatic Combustion Control (ACC)
timer system push the lever towards the back of the
appliance to the “HI” position, then pull forwards
towards the front of the appliance until the knob stops.
The timer will slowly close in about 25 minutes. Use
this feature when reloading fuel or if you want more air
supplied to the re (Figure 10.3).
Injury Risk.
Gloves recommended
CAUTION
Figure 10.1
Figure 10.2
HIGH
MED
LOW
Burn Rate
Air Control
Start-Up
Air Control
Manual
Timer (ACC)
Shut Down
Pull Forward
to Shut Down
Figure 10.3
Over rides timer & opens
rear air to open locked
position
Open rear air medium air
flow
Engages timer push knob
towards HI then back to
any point within dotted line
Open rear air medium-low
air flow
Closes front and rear air
