Quadra-Fire 3100 Series Owner's Manual

2 7033-362C 11/21
CONFIDENTIAL PROPERTY OF HEARTH & HOME TECHNOLOGIES INC.
PART NAME:
DRAWN BY:
SCALE:
MATERIAL:
SHEET:
PART NUMBER:
REV:
THIS PRINT IS CHECKED AND CONTROLLED BY THE ENGINEERING
DEPARTMENTS OF HEARTH & HOME TECHNOLOGIES INC.
ECO # DATE BYREV
UNLESS OTHERWISE SPECIFIED DIMS ARE INCHES[MM] & : TOLERANCES ARE: (2) PLACE DEC : ± 0.03 (3) PLACE DEC: ± 0.005 ANGLE: ± 2° FRACTION: ± 1/16
OUTSIDE MATERIAL. NORMAL DIM & INSIDE MATERIAL.
OUTSIDE APEX
INSIDE APEX - DIMS ENCLOSED BY AN OVAL ARE CRITICAL DIMENSIONS
REVISIONS
ITEM PART NUMBER PART NAME QTY
BARCODE LABEL
Hearth & Home Technologies, 352 Mountain House Road,
Halifax, PA 17032 United States of America
HF
o
QUADRA-FIRE WOODFIRE COMPLIANCE LABEL
This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/043A - Date tested: May 2012
MODEL QUADRA-FIRE 3100 SERIES ACC FREESTANDING WOOD STOVE
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012: ......................................................... 71%
AVERAGE PARTICULATE EMISSION FACTOR BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE WITH AS/NZS 4013: ......................................................... 1.4 g/kg
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD:
.......................... 7.1 kW
APPROVED FUEL:
............................................................................................................... BURN ONLY HARDWOOD WITH A MOISTURE CONTENT
LESS THEN 25% (dry basis).
Wetback - All Models: .........................................................................................
Manufactured by:................................................................................................
PERFORMANCE MAY VARY FROM TEST VALUES DEPENDING ON ACTUAL OPERATING CONDITIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States
NOTE:
7033-309G
INSTALLATION
DATE:
Serial No. /
N de série:
Date of Manufacture / Date de fabrication:
2021 2022 2023 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
MILLENIUM
LIMITED EDITION
Serial
No.
Model
Name
Test Lab &
Report No.
Mfg. Date
SAMPLE

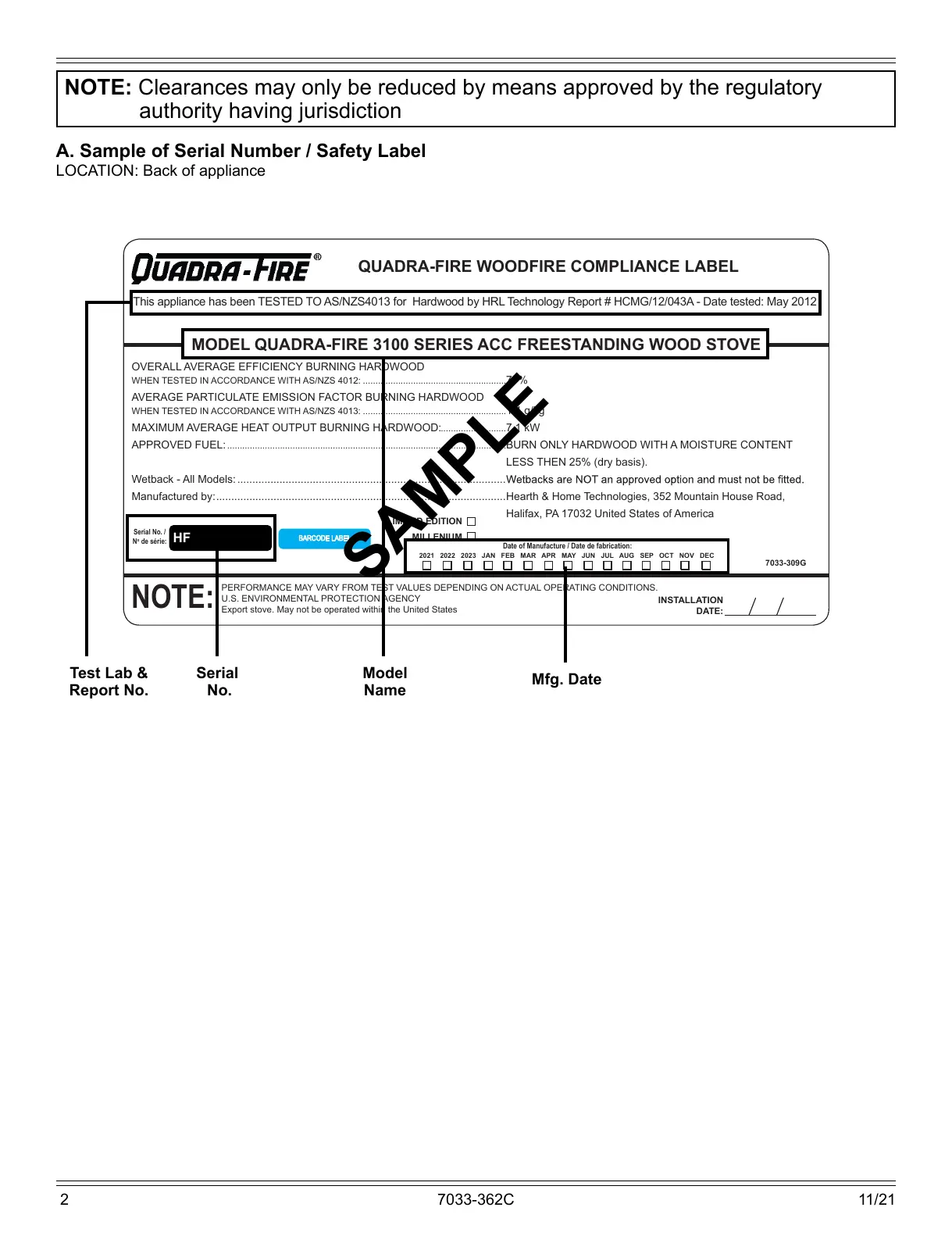

A. Sample of Serial Number / Safety Label
LOCATION: Back of appliance
NOTE: Clearances may only be reduced by means approved by the regulatory
authority having jurisdiction
All manuals and user guides at all-guides.com

Quadra-Fire 3100 Series Specifications

General

EPA Certified	Yes
Flue Size	6 inches
Efficiency	78%
Firebox Size	2.0 cu ft
Log Length	18 inches
Depth	26.5 inches
Maximum Burn Time	10 hours
