Quadra-Fire 3100 Series Owner's Manual

13 7033-362C 11/21
INCORRECT POSITIONS

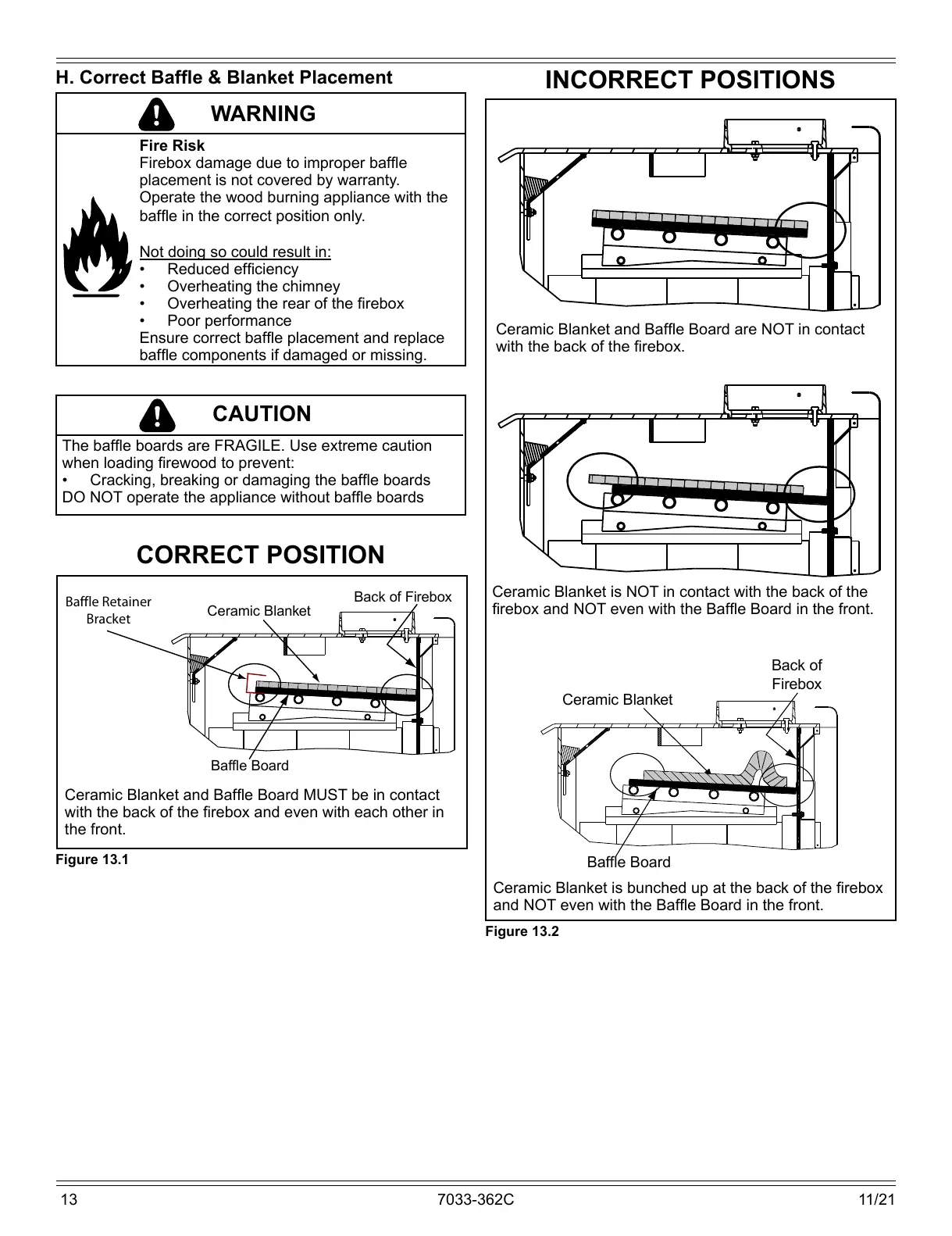

H. Correct Bafe & Blanket Placement
Figure 13.1
Figure 13.2
CORRECT POSITION
Ceramic Blanket and Bafe Board are NOT in contact
with the back of the rebox.
Ceramic Blanket is NOT in contact with the back of the
rebox and NOT even with the Bafe Board in the front.
Ceramic Blanket is bunched up at the back of the rebox
and NOT even with the Bafe Board in the front.
Ceramic Blanket
Back of
Firebox
Baffle Board
Ceramic Blanket and Bafe Board MUST be in contact
with the back of the rebox and even with each other in
the front.
Ceramic Blanket
Back of Firebox
Baffle Board
Baffle Retainer
Bracket
CAUTION
The bafe boards are FRAGILE. Use extreme caution
when loading rewood to prevent:
• Cracking, breaking or damaging the bafe boards
DO NOT operate the appliance without bafe boards
WARNING
Fire Risk
Firebox damage due to improper bafe
placement is not covered by warranty.
Operate the wood burning appliance with the
bafe in the correct position only.
Not doing so could result in:
• Reduced efciency
• Overheating the chimney
• Overheating the rear of the rebox
• Poor performance
Ensure correct bafe placement and replace
bafe components if damaged or missing.
All manuals and user guides at all-guides.com

Quadra-Fire 3100 Series Specifications

General

EPA Certified	Yes
Flue Size	6 inches
Efficiency	78%
Firebox Size	2.0 cu ft
Log Length	18 inches
Depth	26.5 inches
Maximum Burn Time	10 hours
