Quadra-Fire 3100 Series Owner's Manual

3 7033-362C 11/21

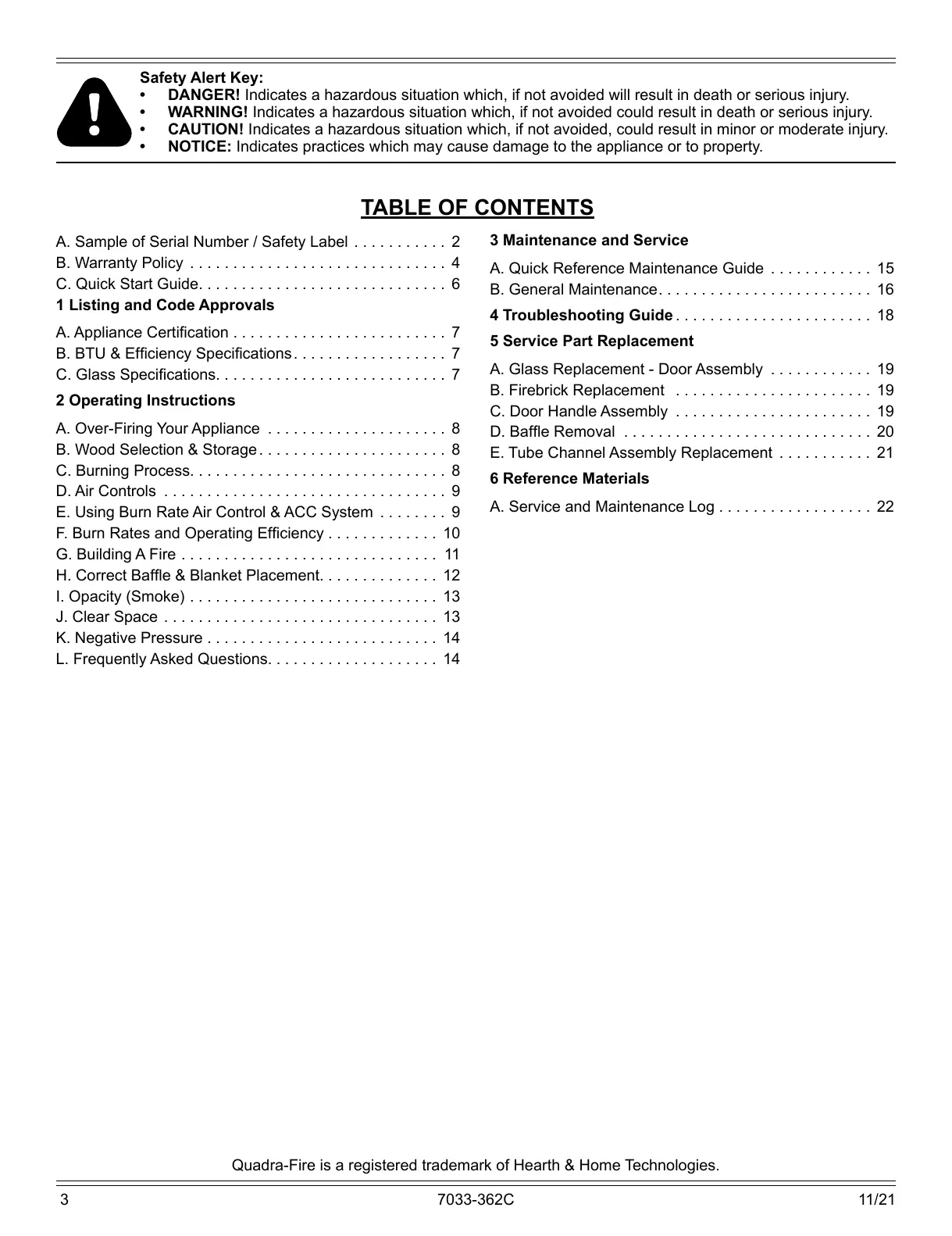

TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
A. Sample of Serial Number / Safety Label ........... 2
B. Warranty Policy .............................. 4
C. Quick Start Guide............................. 6
1 Listing and Code Approvals
A. Appliance Certication . . . . . . . . . . . . . . . . . . . . . . . . . 7
B. BTU & Efciency Specications.................. 7
C. Glass Specications........................... 7
2 Operating Instructions
A. Over-Firing Your Appliance ..................... 8
B. Wood Selection & Storage...................... 8
C. Burning Process.............................. 8
D. Air Controls ................................. 9
E. Using Burn Rate Air Control & ACC System ........ 9
F. Burn Rates and Operating Efciency ............. 10
G. Building A Fire .............................. 11
H. Correct Bafe & Blanket Placement.............. 12
I. Opacity (Smoke) ............................. 13
J. Clear Space ................................ 13
K. Negative Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
L. Frequently Asked Questions.................... 14
3 Maintenance and Service
A. Quick Reference Maintenance Guide ............ 15
B. General Maintenance......................... 16
4 Troubleshooting Guide ....................... 18
5 Service Part Replacement
A. Glass Replacement - Door Assembly ............ 19
B. Firebrick Replacement ....................... 19
C. Door Handle Assembly ....................... 19
D. Bafe Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
E. Tube Channel Assembly Replacement ........... 21
6 Reference Materials
A. Service and Maintenance Log . . . . . . . . . . . . . . . . . . 22
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
All manuals and user guides at all-guides.com

Quadra-Fire 3100 Series Specifications

General

EPA Certified	Yes
Flue Size	6 inches
Efficiency	78%
Firebox Size	2.0 cu ft
Log Length	18 inches
Depth	26.5 inches
Maximum Burn Time	10 hours
