D. Bafe Removal
1. Remove all ash from the rebox, and extinguish all hot embers before disposal into a metal container.
2. The bafe board has 2 pieces. With the ceramic blanket still in place, slide one bafe piece over the top of other one and
pull out top piece through the door opening and then remove bottom bafe piece (Figure 21.1).
3. Remove the ceramic blanket.
4. Re-install the bafe pieces one piece at a time. Be sure the bafe boards are even with the front manifold tube and is
resting on all tubes (Figure 21.3).
5. To re-install the ceramic blanket, it is easier to fold it in half rst. Place on top of bafe board, open up and atten and
smooth out the blanket. Re-check the bafe board for correct positioning (Figure 21.2).

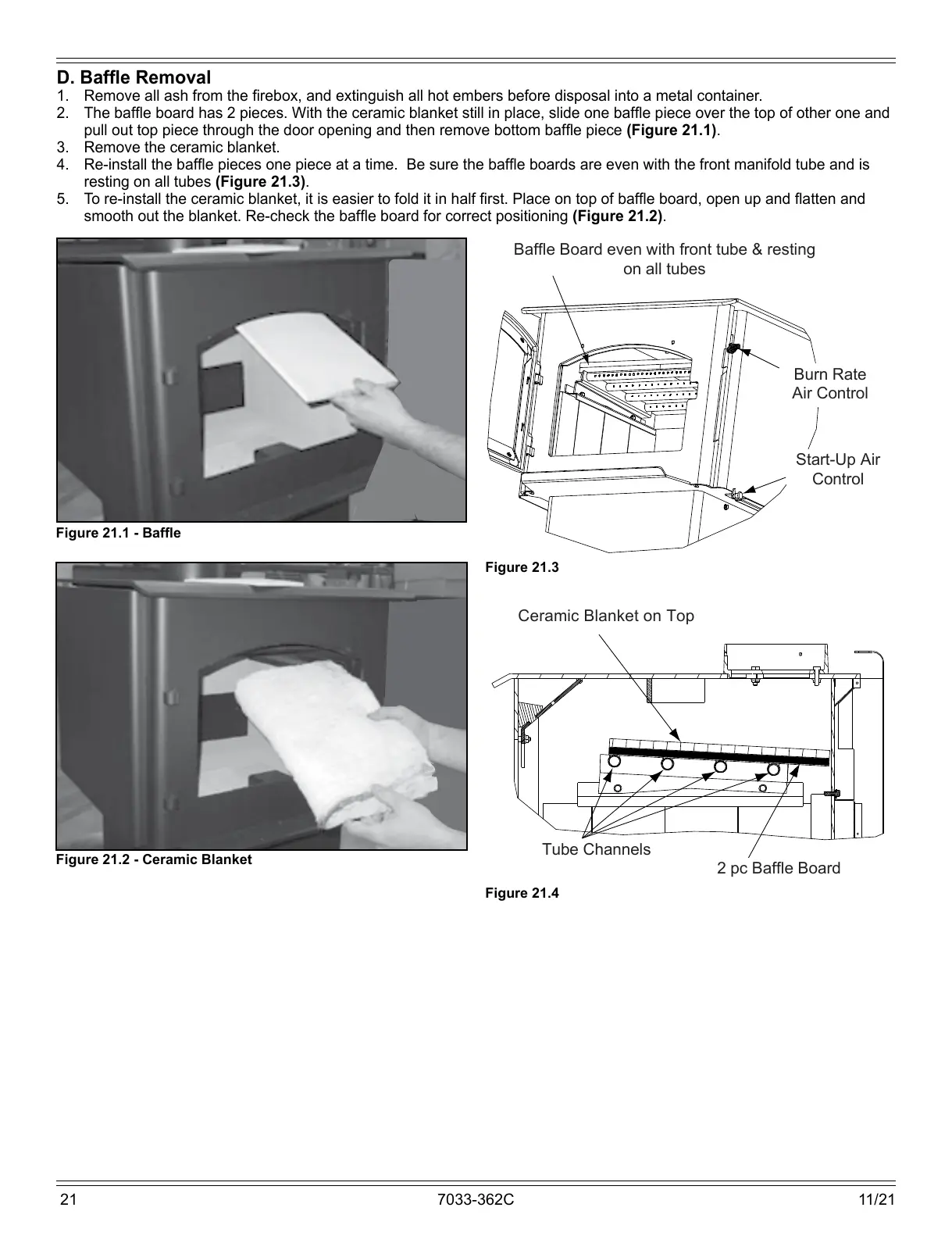

Figure 21.1 - Bafe
Figure 21.2 - Ceramic Blanket
Figure 21.3
Figure 21.4
