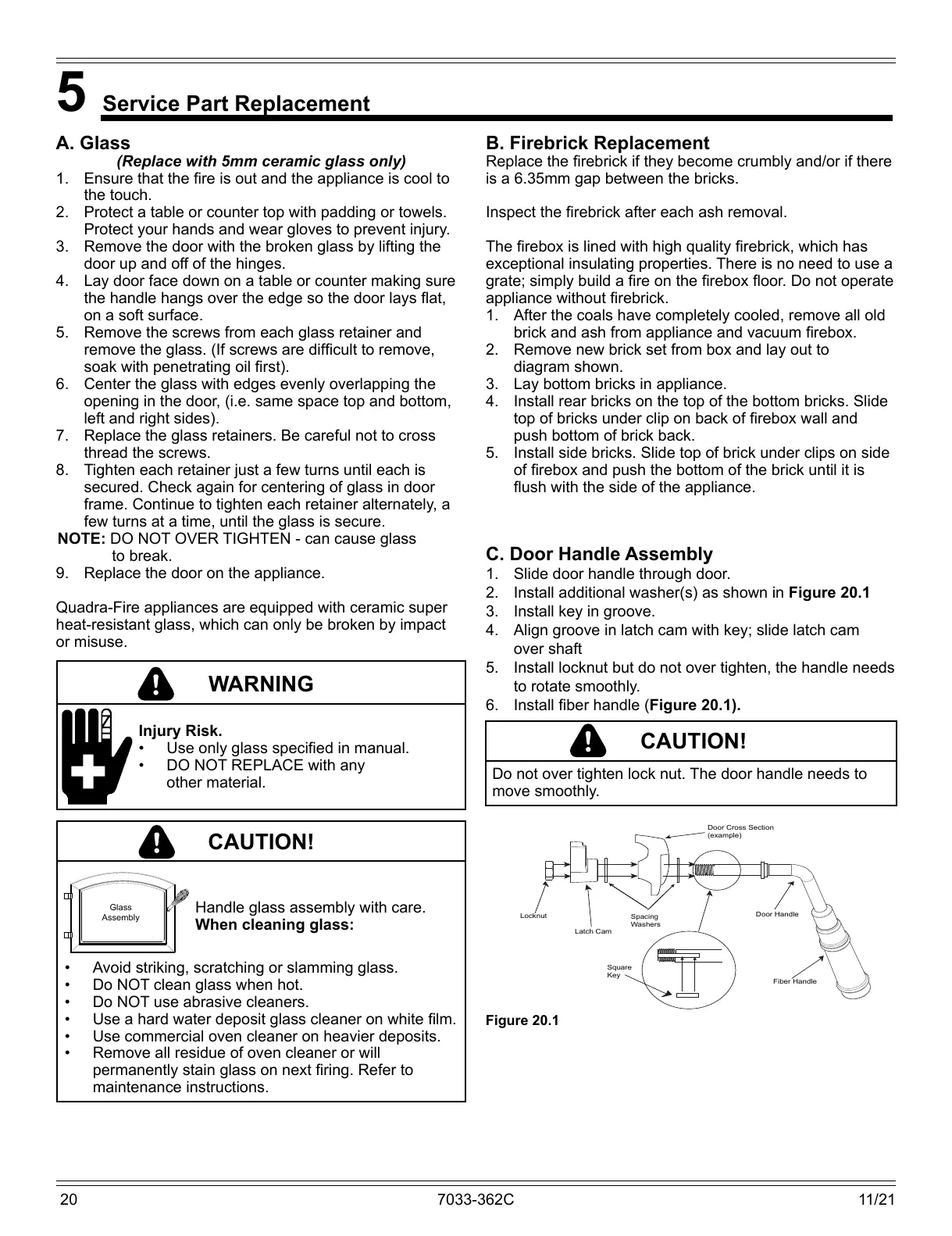

20 7033-362C 11/21
A. Glass
(Replace with 5mm ceramic glass only)
1. Ensure that the re is out and the appliance is cool to
the touch.
2. Protect a table or counter top with padding or towels.
Protect your hands and wear gloves to prevent injury.
3. Remove the door with the broken glass by lifting the
door up and off of the hinges.
4. Lay door face down on a table or counter making sure
the handle hangs over the edge so the door lays at,
on a soft surface.
5. Remove the screws from each glass retainer and
remove the glass. (If screws are difcult to remove,
soak with penetrating oil rst).
6. Center the glass with edges evenly overlapping the
opening in the door, (i.e. same space top and bottom,
left and right sides).
7. Replace the glass retainers. Be careful not to cross
thread the screws.
8. Tighten each retainer just a few turns until each is
secured. Check again for centering of glass in door
frame. Continue to tighten each retainer alternately, a
few turns at a time, until the glass is secure.
NOTE: DO NOT OVER TIGHTEN - can cause glass
to break.
9. Replace the door on the appliance.
Quadra-Fire appliances are equipped with ceramic super
heat-resistant glass, which can only be broken by impact
or misuse.
Figure 20.1
C. Door Handle Assembly
1. Slide door handle through door.
2. Install additional washer(s) as shown in Figure 20.1
3. Install key in groove.
4. Align groove in latch cam with key; slide latch cam
over shaft
5. Install locknut but do not over tighten, the handle needs
to rotate smoothly.
6. Install ber handle (Figure 20.1).
Locknut
Latch Cam
Spacing
Washers
Door Cross Section
(example)
Door Handle
Fiber Handle
Square
Key
B. Firebrick Replacement
Replace the rebrick if they become crumbly and/or if there
is a 6.35mm gap between the bricks.
Inspect the rebrick after each ash removal.
The rebox is lined with high quality rebrick, which has
exceptional insulating properties. There is no need to use a
grate; simply build a re on the rebox oor. Do not operate
appliance without rebrick.
1. After the coals have completely cooled, remove all old
brick and ash from appliance and vacuum rebox.
2. Remove new brick set from box and lay out to
diagram shown.
3. Lay bottom bricks in appliance.
4. Install rear bricks on the top of the bottom bricks. Slide
top of bricks under clip on back of rebox wall and
push bottom of brick back.
5. Install side bricks. Slide top of brick under clips on side
of rebox and push the bottom of the brick until it is
ush with the side of the appliance.
WARNING
Injury Risk.
• Use only glass specied in manual.
• DO NOT REPLACE with any
other material.
CAUTION!
Do not over tighten lock nut. The door handle needs to
move smoothly.
Handle glass assembly with care.
When cleaning glass:
• Avoid striking, scratching or slamming glass.
• Do NOT clean glass when hot.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on white lm.
• Use commercial oven cleaner on heavier deposits.
• Remove all residue of oven cleaner or will
permanently stain glass on next ring. Refer to
maintenance instructions.
CAUTION!
5 Service Part Replacement
