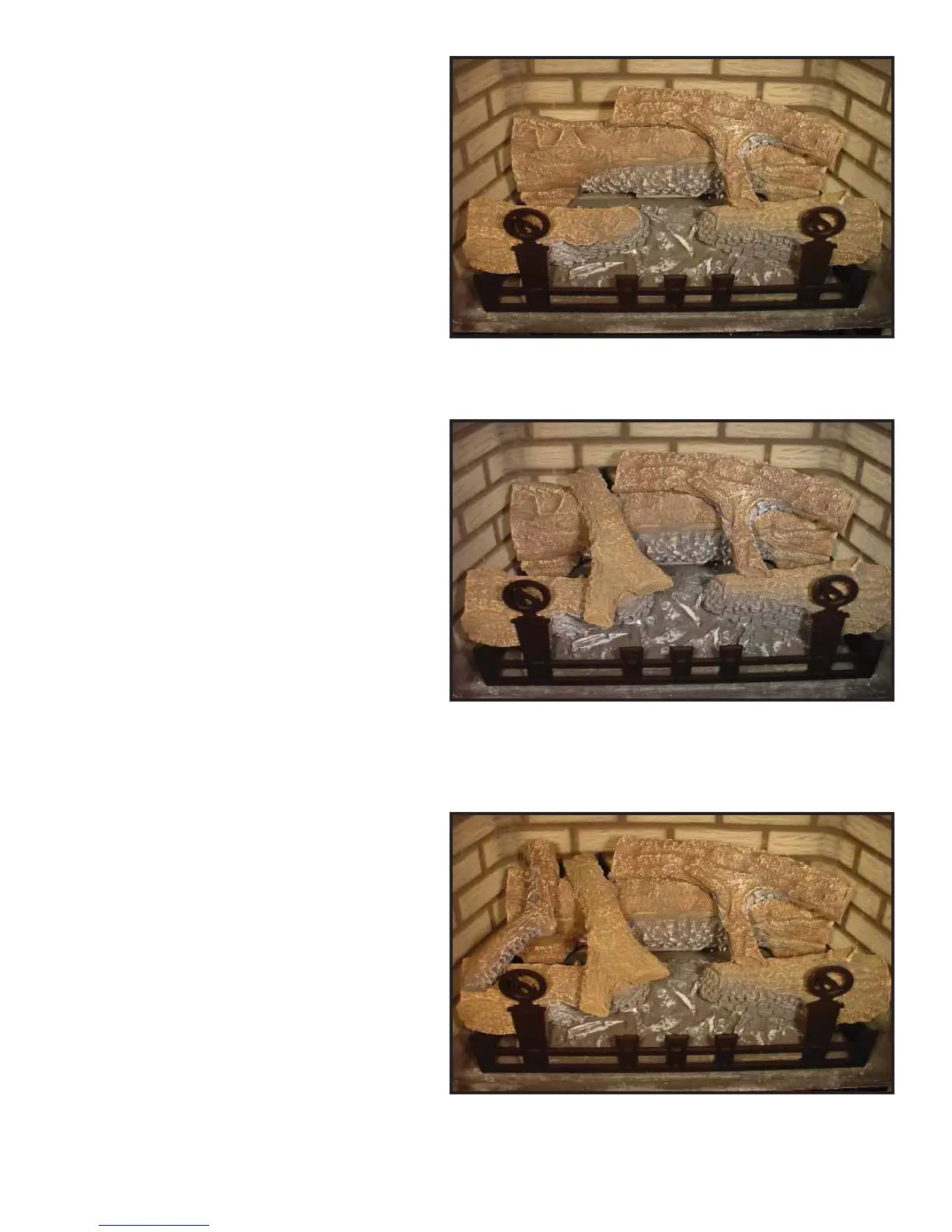

Figure 12.7
Figure 12.8
Figure 12.9
1
1
LOG #6: (SRV340-705)
Rest log #6 on the left smooth cut-out area on top
of log #1 and place the lower end on log #3. The
notch on the bottom of log #6 should rest on the
wedge shape on the end of log #3.
LOG #5: (SRV330-704)
Place the “Y” end of log #5 against the corre-
sponding bump on log #3. The other end of the
log should rest in the second smooth cut-out area
on top of log #1.
LOG #4: (SRV330-706)
Nest log #4 in the cut-out area on the right side of
log #1. The thinnest “arm” of log #4 rests on top
of log #2.
2
2
3
3
4
4
1
1
2
2
3
3
4
4
5
5
1
1
2
2
3
3
4
4
5
5
6
6
