H. Install the Log Assembly
Log Set Assembly: LOGS-QFI30FB
Models: QFI30FB
CAUTION: Logs are fragile, handle with care. Glass Rock (2201-853):Fill each light hole evenly with the glass rock.
Use all of the glass rock provided.
Figure 3. Install Glass Rock
Figure 4. Place Log #1 Figure 5. Place Log #2
Figure 1. Logs Installed
GRATE TINES
GRATE TINES
PILOT BRACKET
PILOT BRACKET
LOG PINS
LOG PINS
LIGHT
LIGHT
HOLES
HOLES
GRATE BAR
GRATE BAR
1
1
2
2
5
5
6
6
4
4
3
3
7
7

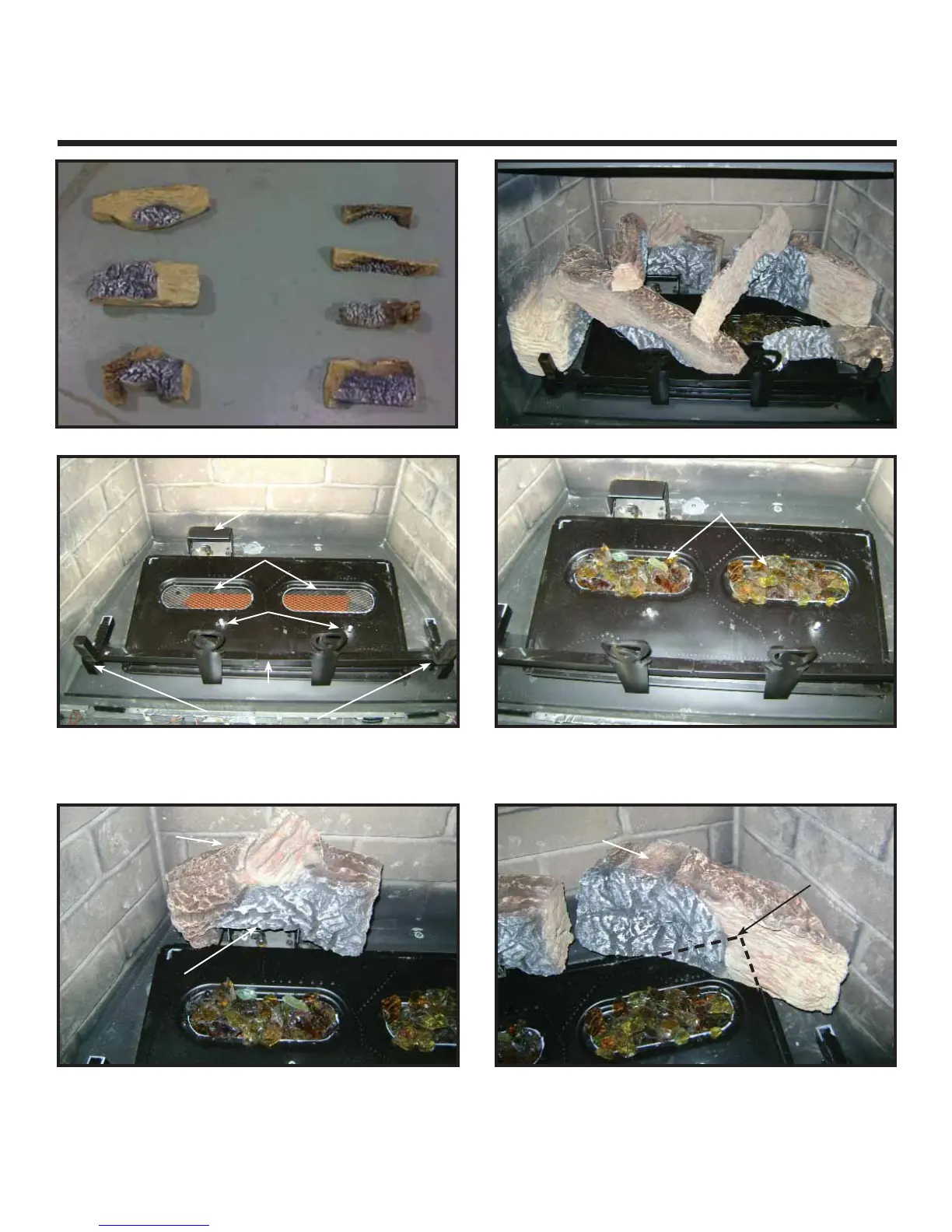

Figure 2. Reference Points for Log Placement
Log #1 (SRV2221-703): Position Log #1 as shown in Figure 4. See Figure 2 for additional points of reference. Center the
log over the pilot bracket. Pull the log forward until contact is made with burner.
Log #2 (SRV2221-701): Position Log #2 as shown in Figure 5. See Figure 2 and Figure 6 for additional points of reference.
The recessed area on the bottom of the log and the back right corner of the burner top mate.
