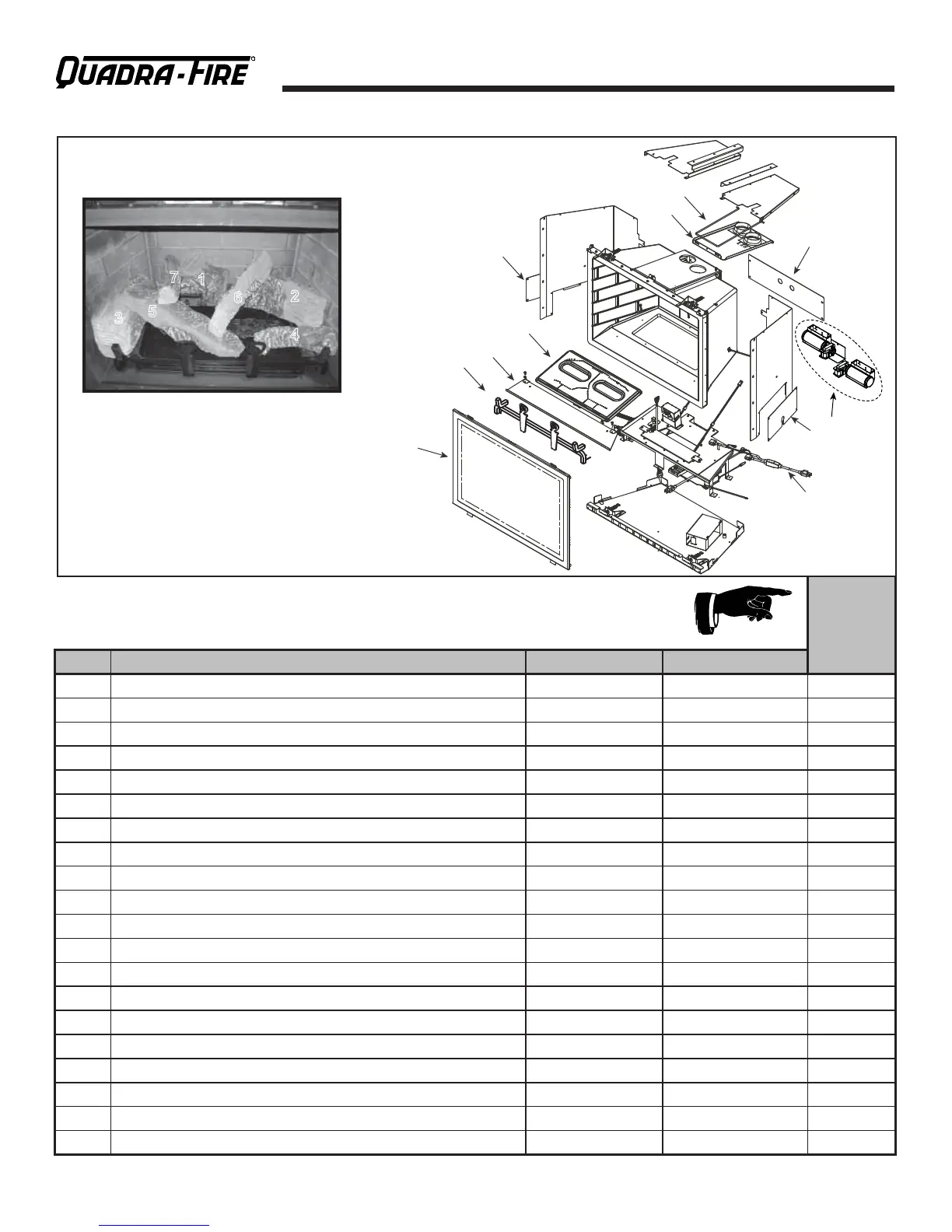

C. Service Parts
QFI30FB
R
Beginning Manufacturing Date: Jul 2010
Ending Manufacturing Date: ______
30” FireBrick Insert
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Assembly LOGS-QFI30FB
Y
1 Log 1 SRV2221-701
2 Log 2 SRV2221-702
3 Log 3 SRV2221-703
4 Log 4 SRV2221-704
5 Log 5 SRV2221-705
6 Log 6 SRV2221-706
7 Log 7 SRV2221-707
8 Slide Plate Handle 2019-201
9 Slide Plate Assembly 2201-012
Gasket, Termination Plate 2201-401
10 Cover Plate, Left 2202-113
11
Burner Assembly
2221-007
Y
12
Media Tray
2201-112
13 Grate Assembly 2221-016
14 Glass Door Assembly GLA-2201
Y
15 Power Cord Assembly 2201-017
Y
16 Cover Plate, Right 2202-114
17 Blower Assembly GFK-210
18 Cover Plate, Back 2202-104
Additional service part numbers on following page.
Log Set Assembly
3
5
7
1
6
2
4
8
18
9
10
11
12
13
14
15
17
16
