Quadra-Fire QFI30FB - 14 Reference Materials; Appliance Dimension Diagram

Quadra-Fire • QFI30FB, QFI35FB • 2221-900 Rev. K • 3/11 40
14
14
Reference Materials
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only.

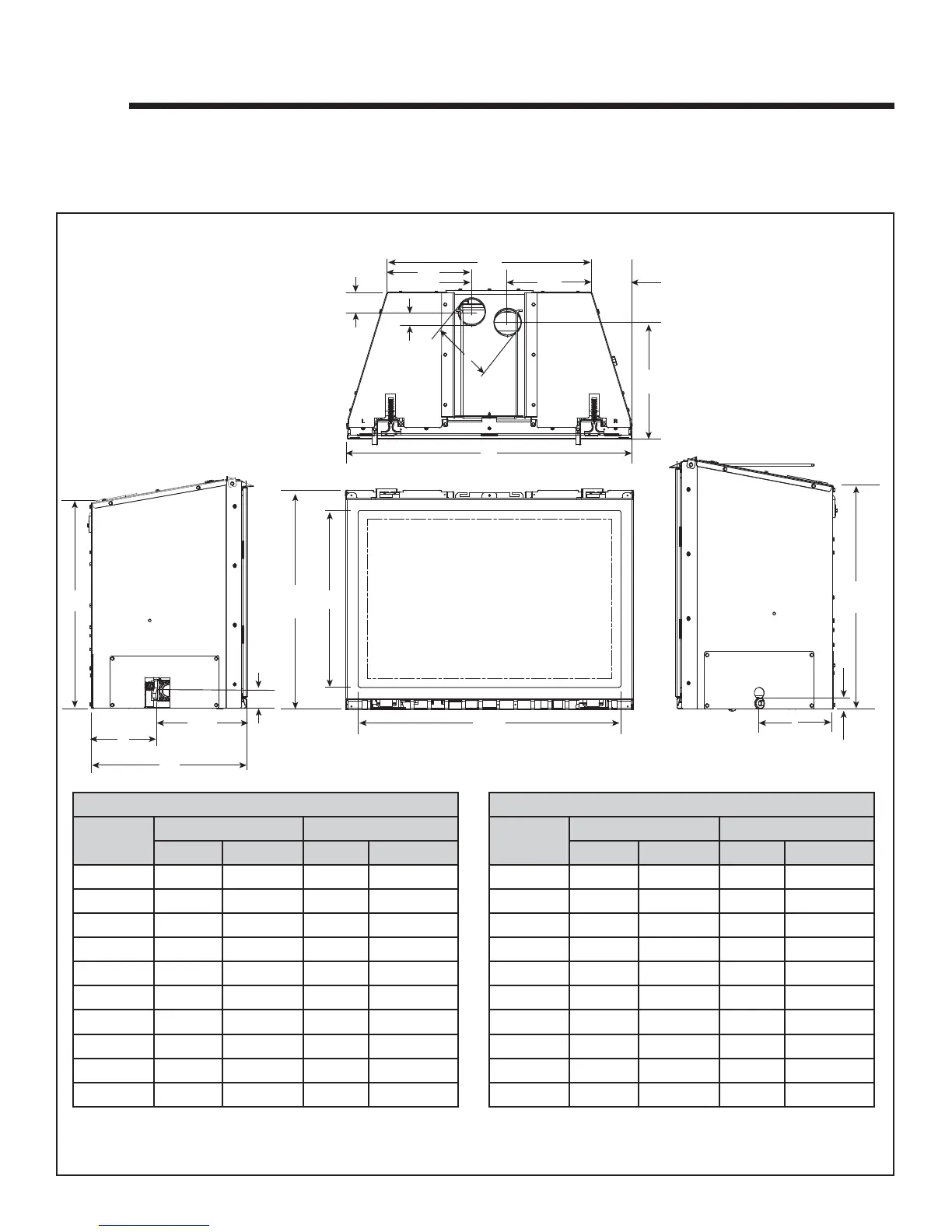

Figure 14.1 Appliance Dimensions
A
B
C
D
E
F
G
I
M
N
S
T
H
P
R
Q
O
L
K
J
MODEL DIMENSIONS
Location
QFI35FB QFI30FB
Inches Millimeters Inches Millimeters
A 25-1/4 641 21-1/4 552
B 34-3/4 864 30 762
C 31-1/2 800 26-3/4 679
D 20 508 18 457
E 24-5/8 626 22-9/16 573
F 22 559 20-3/8 518
G* 17 432 15-5/8 397
H 10-11/16 271 8-11/16 221
I 21-11/16 551 19-15/16 506
J 1-9/16 40 1-9/16 40
MODEL DIMENSIONS
Location
QFI35FB QFI30FB
Inches Millimeters Inches Millimeters
K 8-3/4 222 8-3/4 222
L 7-13/16 183 6-3/8 162
M 1-7/16 37 1-7/16 37
N 8-1/2 216 7-1/8 181
O 3-11/16 94 3-11/16 94
P 6-3/8 162 6-3/16 157
Q 1-13/16 46 1-15/16 49
R 1-3/8 35 1-1/16 28
S 4-1/2 114 4-3/16 106
T 13-3/8 340 12-1/8 308
*Note: Location G on Figure 14.1 is measuring the appliance depth, for installation depth reference Location G on
Figure 5.1.
