Quadra-Fire QFI30FB - Vent Kits Components

41Quadra-Fire • QFI30FB, QFI35FB • 2221-900 Rev. K • 3/11

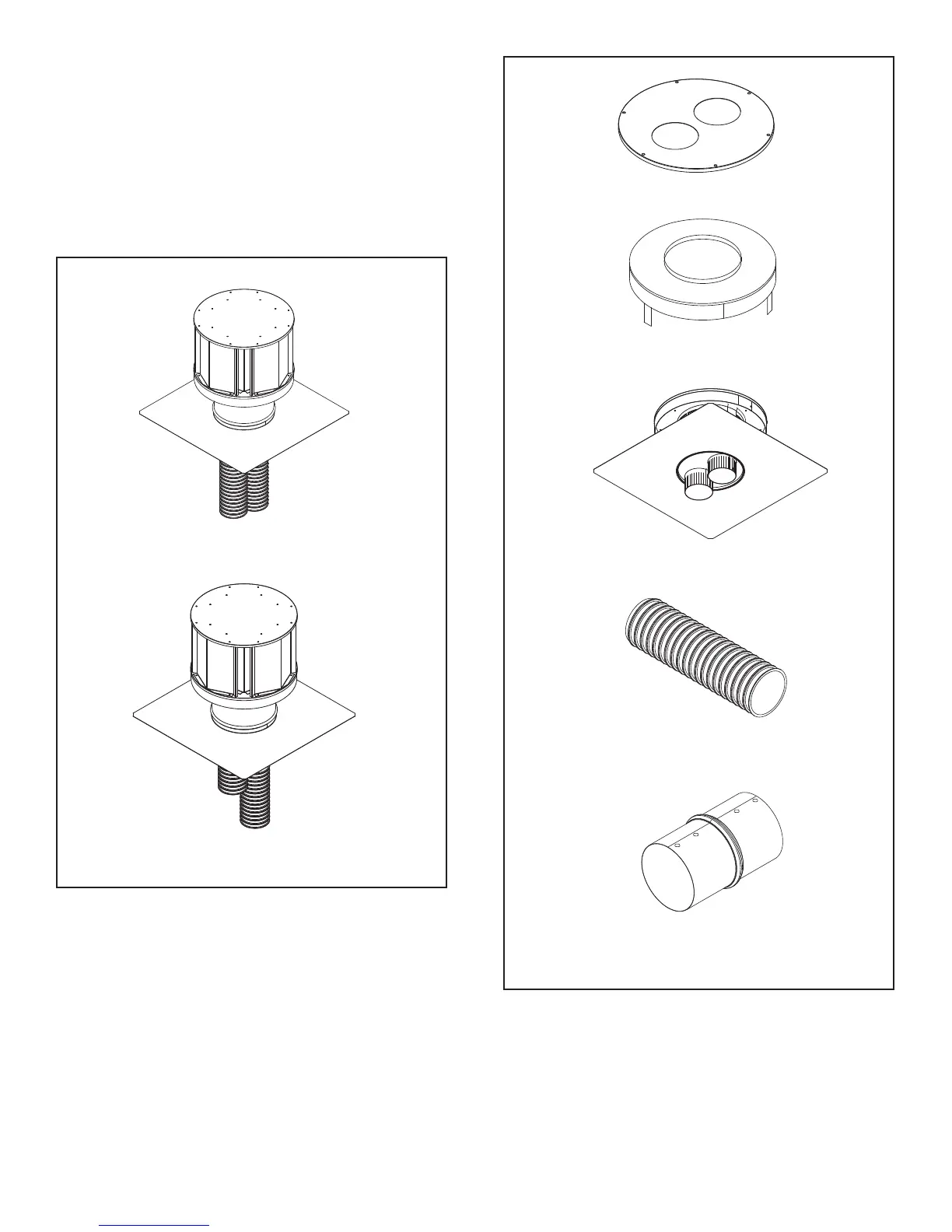

Figure 14.2 Direct Vent Flex Liner Kits
Figure 14.3 Direct Vent Flex Liner Accessory Kits
Direct Vent Flex Liner Accessory Kits (see Figure 14.3)
Flash-Damp: Zero clearance damper fl ashing kit for use
with LINK-DV-30B or LINK-DV4-30B liner kits.
LINK-ZC-ADP: Zero clearance chimney adapter
DV-46DVA-GK: Adapter kit (colinear to coaxial 3 inches
included in above kits). It is permissible to use DV-46DVA-
GK to connect collinear fl ex vent to SL-D vent pipe to
extend the run.
FLEX3-30: One 3 inch fl exible liner expands to 30 feet.
FLEX-CNCT: Connector kit - 3 inch liner to 3 inch liner,
one connector per kit.
FLASH-DAMP
FLEX3-30
LINK-DV-30B
LINK-ZC-ADP
DV-46DVA-GK
FLEX3-CNCT
LINK-DV4-30B
B. Vent Kits Components
Direct Vent Flex Liner Kits (see Figure 14.2)
LINK-DV-30B: Masonry 3 inch fl ex liner kit. Expands to 30
feet. Includes: two liners, termination cap, fl ashing, and
link adapter.
LINK-DV4-30B: Masonry 3 inch fl ex liner kit. Expands to 30
feet and 4 feet respectively. Includes: two liners, termination
cap, fl ashing, and link adapter.
