33Quadra-Fire • QFI30FB, QFI35FB • 2221-900 Rev. K • 3/11

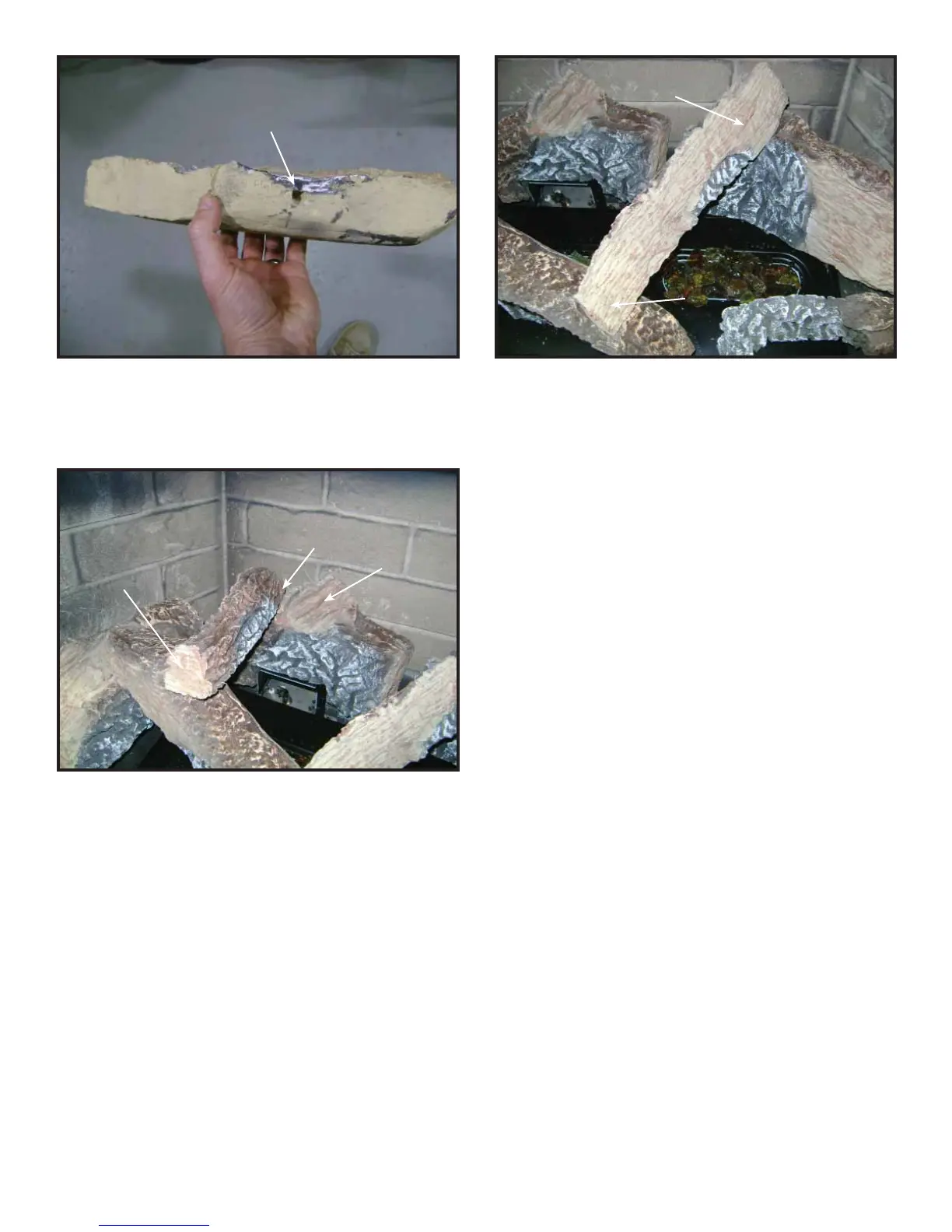

Figure 12. Log #5 - Bottom View
6
6
5
5
Log #6 (SRV2221-705): Position Log #6 as shown in Figure 13. See Figures 2, 5 and 11 for additional reference points.
Place the front end of log #6 n the fl at spot indicated in Figure 11. Place the back end of Log #6 on the fl at spot indicated
in Figure 5.
Figure 13. Place Log #6
Figure 14. Place Log #7
Log #7 (SRV2221-707): Position Log #7 as shown in Figure 14. See Figure 2 and 11 for additional reference points. Place
the front end of Log #7 on the fl at spot indicated in Figure 11. Place the back end of Log #7 on the left side of the knot. See
Figure 14.
LEFT END
LEFT END
RIGHT END
RIGHT END
LOG PIN SLOT
LOG PIN SLOT
PLACE END OF LOG
PLACE END OF LOG
ON FLAT SPOT
ON FLAT SPOT
PLACE END OF LOG
PLACE END OF LOG
ON FLAT SPOT
ON FLAT SPOT
7
7
PLACE END OF LOG
PLACE END OF LOG
ON FLAT SPOT
ON FLAT SPOT
REST END OF LOG
REST END OF LOG
ON THE LEFT SIDE
ON THE LEFT SIDE
OF KNOT
OF KNOT
KNOT
KNOT
2221-935B
