Quadra-Fire • QFI30FB, QFI35FB • 2221-900 Rev. K • 3/11 36

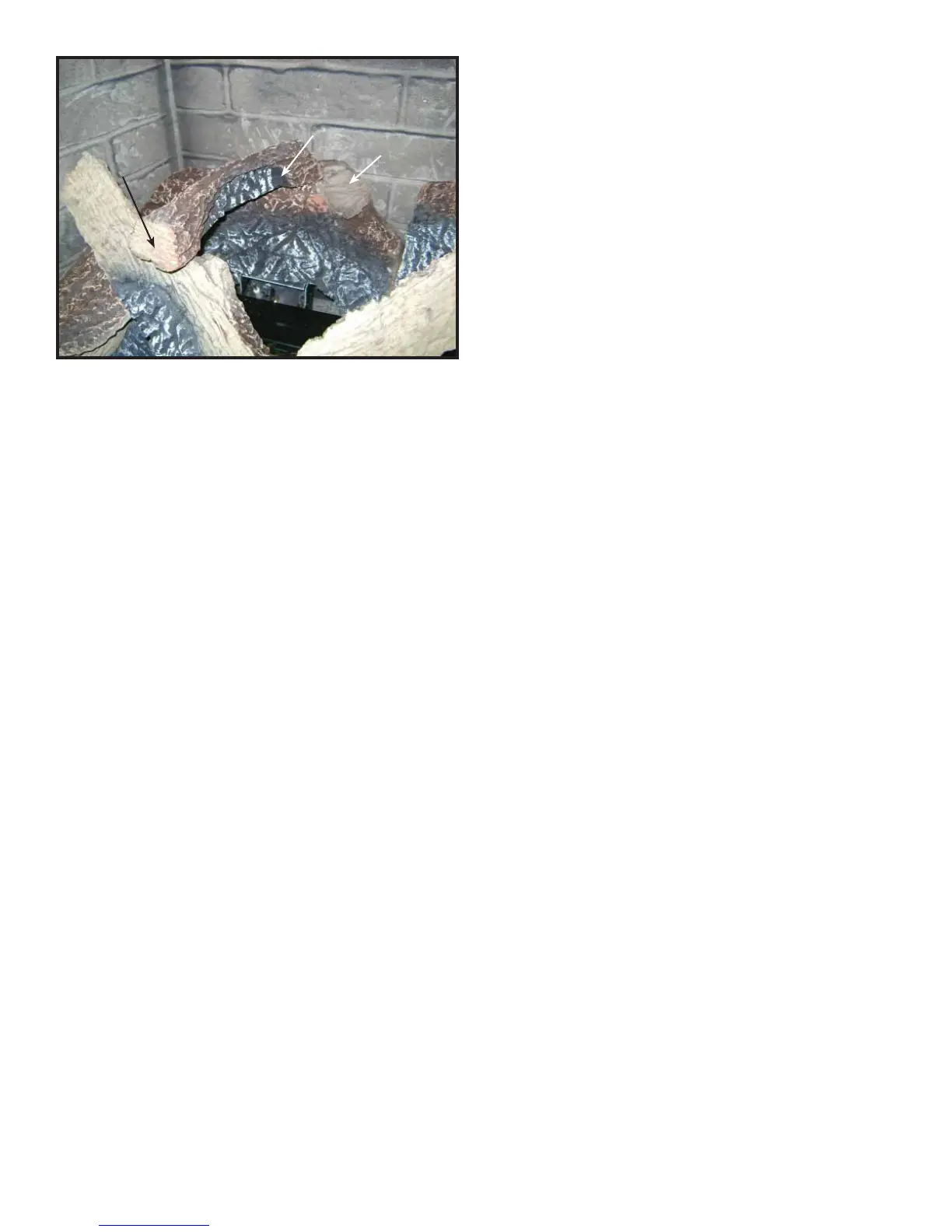

Figure 12. Place Log #7
Log #7 (SRV2221-707): Position Log #7 as shown in Figure 12. See Figure 2 and 10 for additional reference points. Place
the front and back ends of the log on the fl at spots as shown in Figure 12.
7
7
PLACE END OF LOG
PLACE END OF LOG
ON FLAT SPOT
ON FLAT SPOT
REST END OF LOG
REST END OF LOG
ON THE LEFT SIDE OF
ON THE LEFT SIDE OF
KNOT
KNOT
KNOT
KNOT
2223-935B
