Disassembly & Storage
Disassembly & Storage

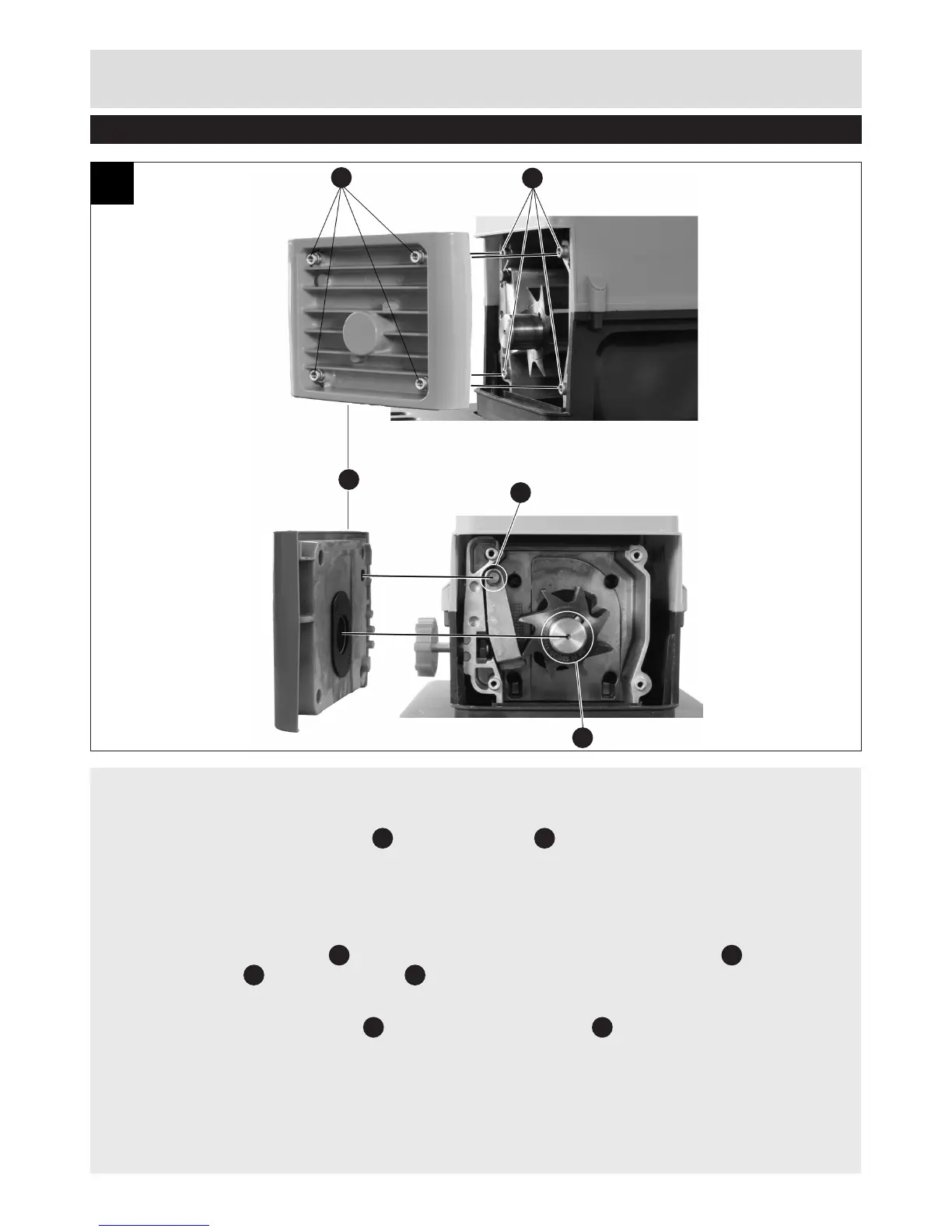

In case of more stubborn blockages you may have to clear material from inside the cutter housing. Proceed
as follows:
• Remove the four allen screws
14
on the housing cover
16
.
• Remove the cover. This may require light jerking movements, as this housing cover also contains two
counter bearings.
• Remove any further blockage from the equipment.
• When tting the cover
16
back on, ensure it is tted correctly so that the blade shaft
18
, the pressure
plate rod
17
and the four recesses
15
for the allen screws are all correctly aligned and t smoothly into
the recesses on the cover. Ensure that the cutting pressure plate is positioned correctly.
• Screw on the housing cover
15
rmly with the four allen screws
14
.
Storage
For convenient storage the shredder unit can be put inside the collection box once disassembled. To do
this turn the shredder upside down and rest it carefully on the hopper. Remove the four screws (Fig. C)
holding the base to the shredder body unit.
E
14
16
17
18
15
