Chapter 1
14
QBOX-200S Series Users Manual
System Tour
Refer to the figure below to identify the components of the system.
Front Panel

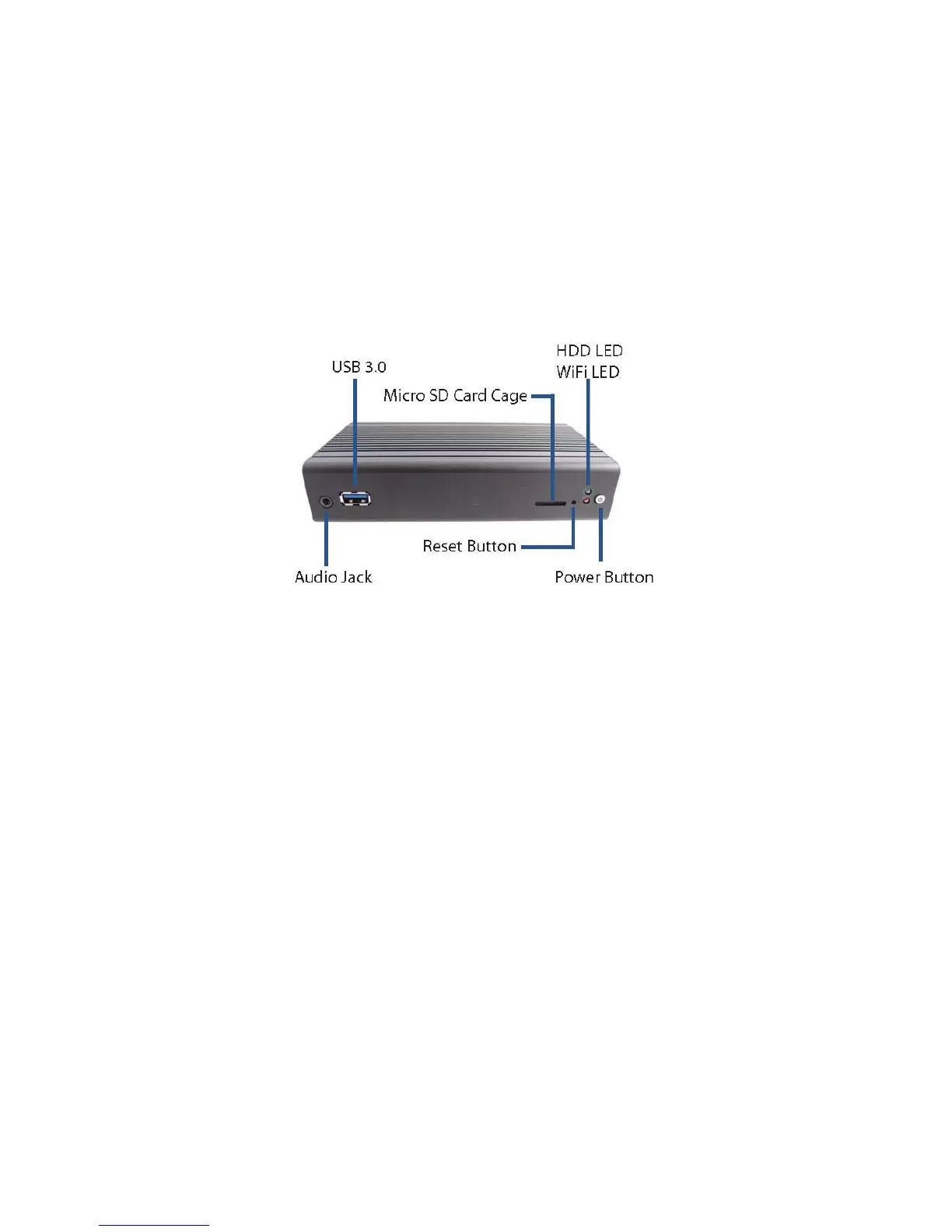

Figure 1 Front Panel
Power Switch
The power button allows powering ON and OFF the system.
WiFi LED (Green)
The WiFi LED will light when the WiFi is on.
HDD LED (Red)
The hard disk LED blinks when data is being written into or read from the HDD.
Phone Jack
Audio Out
The green stereo headphone jack is used to connect the system’s audio out
signal to amplified speakers or headphones.
