 Rear Panel

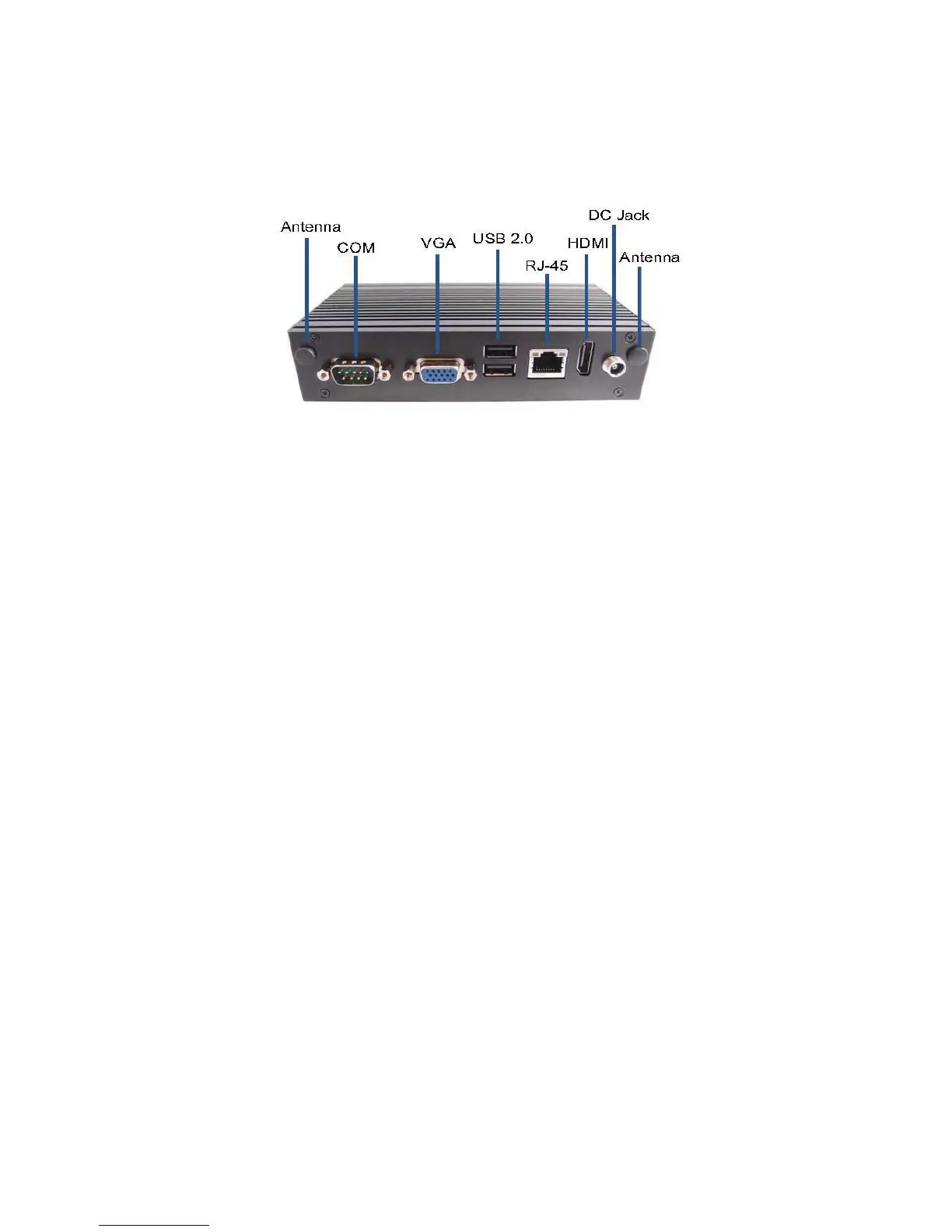

Figure 2 Rear Panel
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
COM 1
D-Sub 9 pin connector for RS-232/422/485 connection
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
HDMI
HDMI connector for display output
VGA
D-Sub 15 pin VGA connector for display output
Antenna
2x reserved holes for wireless antenna connections.

Quanmax QBOX-200S Series Specifications

General

Brand	Quanmax
Model	QBOX-200S Series
Category	Touch Panel
Language	English
