Chapter 2

QBOX-200S Series User’s Manual

 Connect LAN port

Connect one end of a network cable to the LAN port on the system rear

panel and the other end to a hub or switch.

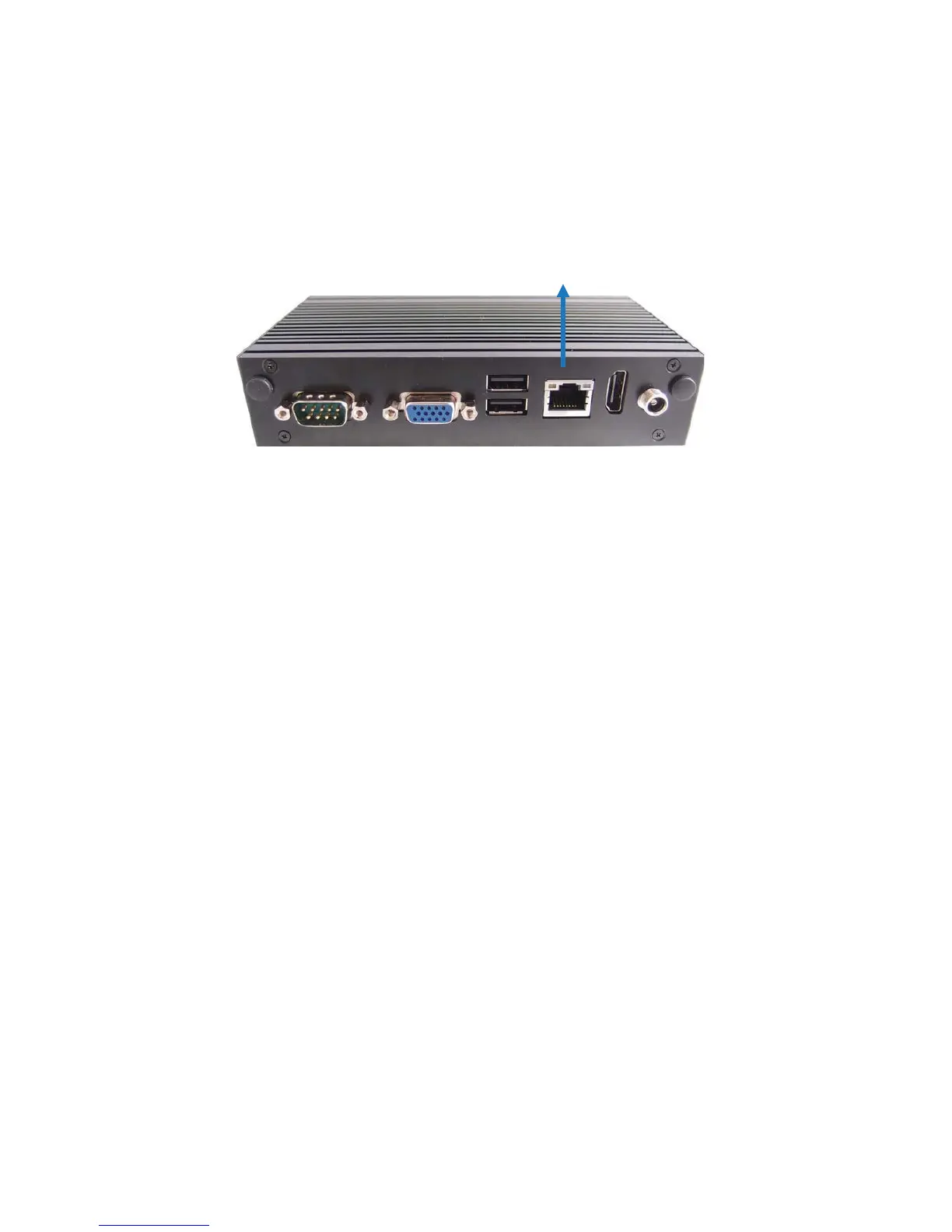

Figure 6 RJ45 connector

RJ45
