 Rear Panel

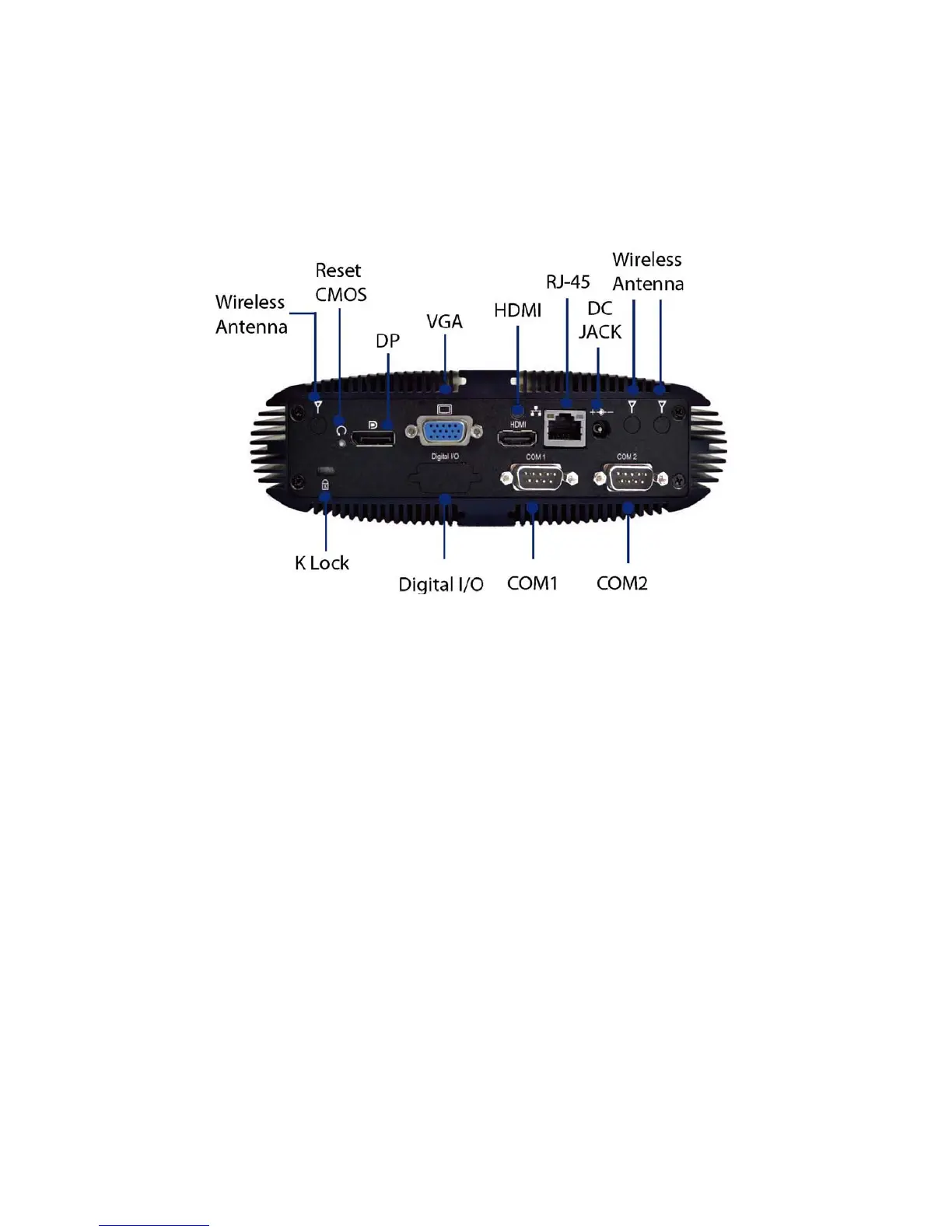

Figure 2 Rear Panel
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
COM 1
D-Sub 9 pin connector for RS-232/422/485 connection
COM 2
D-Sub 9 pin connector for RS-232/422/485 connection
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
