Chapter 1
21
QBOX-2600 User’s Manual
Mechanical Dimensions
Dimension: 183.86 x 55.98 x 109.5 mm (W x H x D)

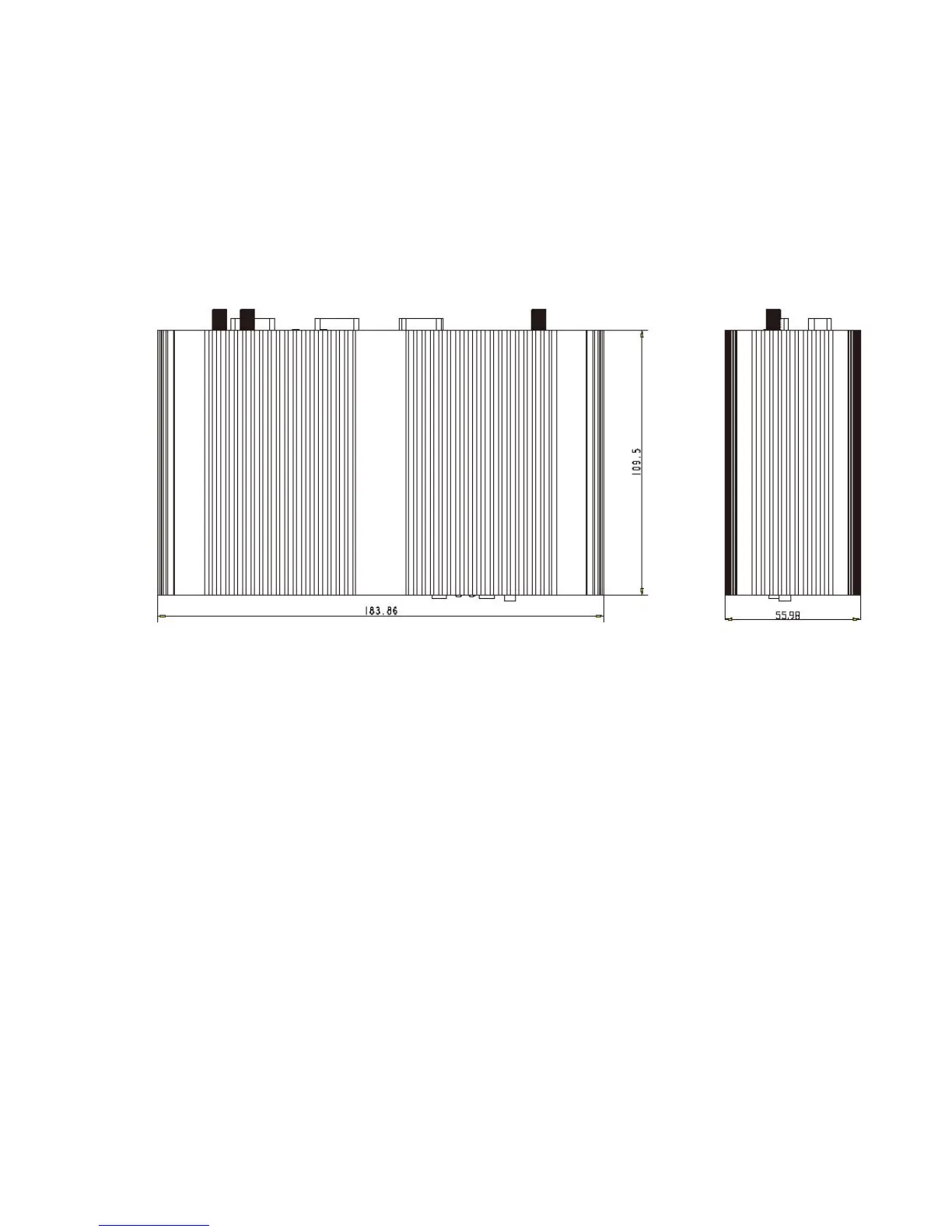

Figure 3 Mechanical Dimensions
