Chapter 2
25
QBOX-2600 User’s Manual
DIO
Digital Input / Output

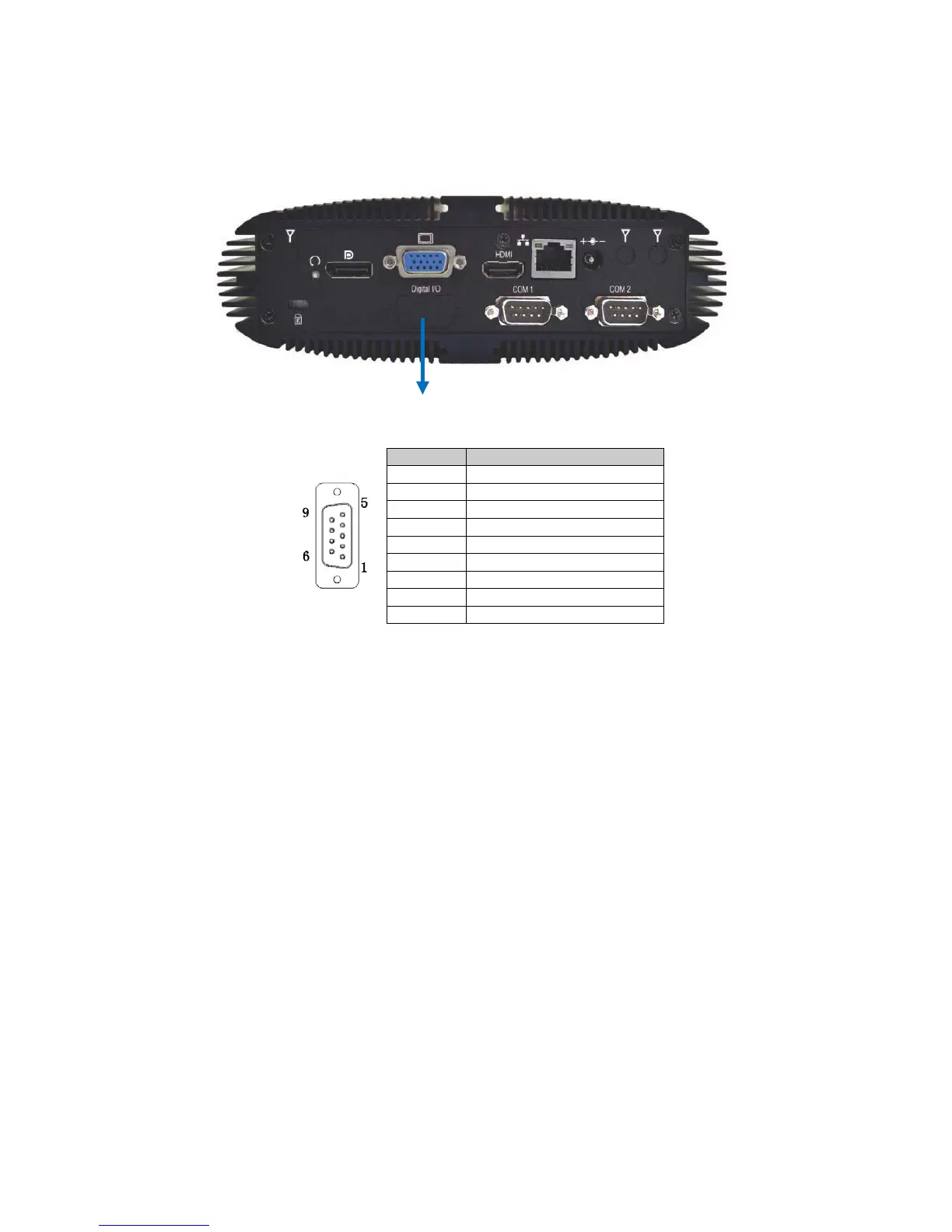

DIO port with the pin definition.
Digital Input / Output D-SUB 9P
Pin
Signal Name
1
+5V
2
Digital Input 0
3
Digital Output 0
4
Digital Input 1
5
Digital Output 1
6
Digital Input 2
7
Digital Output 2
8
Digital Input 3
9
Digital Output 3
Figure 8 DIO port
