Quanta Computer D52B-1U - Hybrid 3.5+2.5 HDD Configuration; Nvme SSD M.2 Adapter Add-On Card (Optional)

ABOUT THE SYSTEM HDD / M.2 ADAPTER CONFIGURATION
1-15

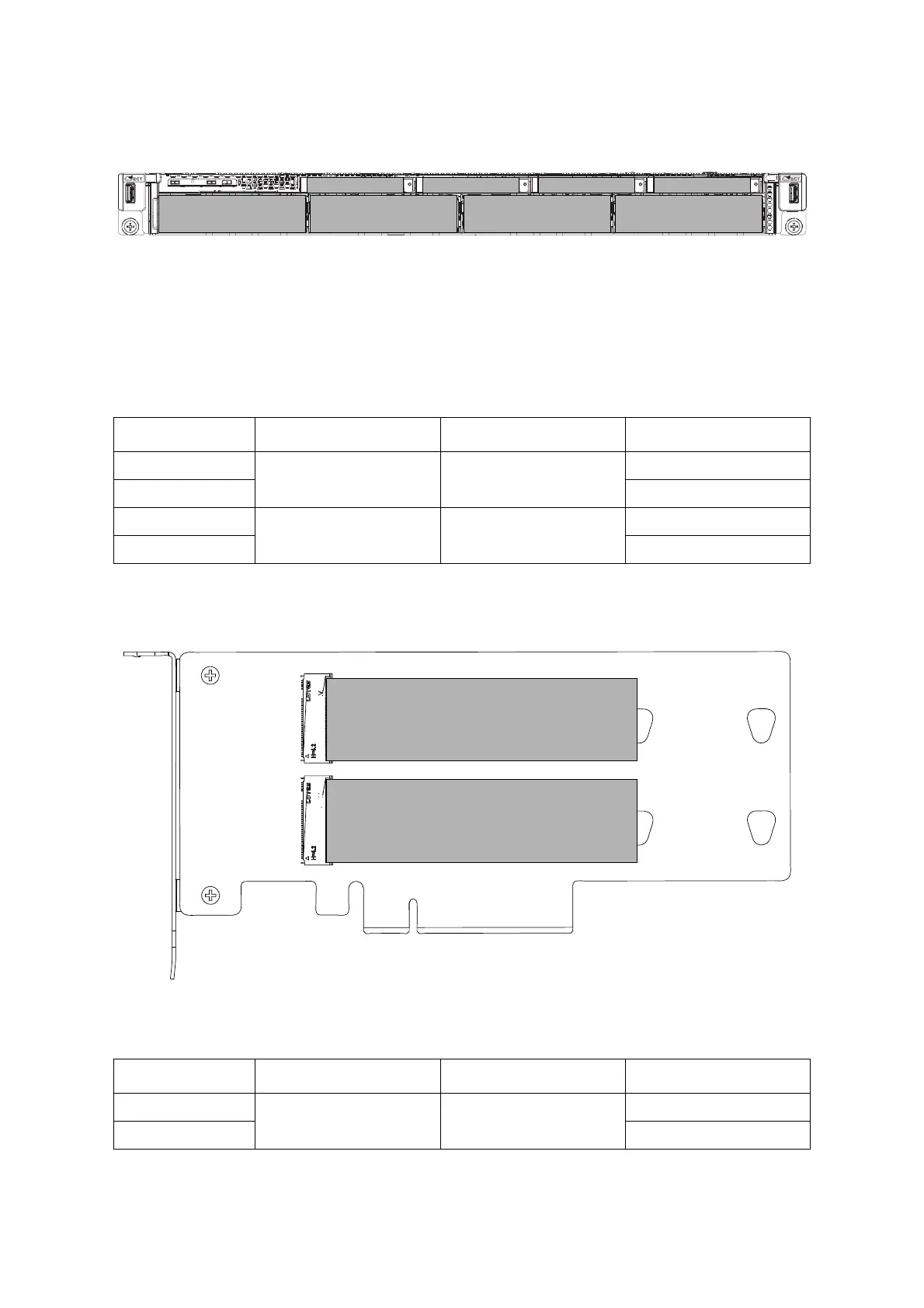

Hybrid 3.5”+2.5” HDD Configuration
Figure 1-10. Hybrid 3.5” + 2.5” HDD Configuration
NVMe SSD M.2 Adapter Add-On Card (Optional)
Figure 1-11. M.2 Slot Number
0
Note: The M.2 SSD is installed for OS installation only.
Table 15: Intel® VMD PCIe Root Port BIOS Setup Option Table (only for NVMe SSD)
HDD SLOT#CPU SOCKET PSTACK VMD PORT
4
00
1A
51B
6
12
3A
73B
Table 16: Intel® VMD PCIe Root Port BIOS Setup Option Table
M.2 SLOT#CPU SOCKET PSTACK VMD PORT
1
00
1C
21D
HDD0 HDD1 HDD2 HDD3
HDD4 HDD5 HDD6 HDD7
ALL SATA/SAS SKU
HDD0~HDD7 support SATA/SAS HDD/SSD
3.5” SATA/SAS + 2.5” SATA/SAS/NVME SKU
HDD0~HDD3 support SATA/SAS HDD/SSD
HDD4~HDD7 support SATA/SAS HDD/SSD or NVMe
SSD
M.2 Slot1
M.2 Slot2
