ABOUT THE SERVER SYSTEM REAR FEATURES
1-12
System Rear Features
System Rear View

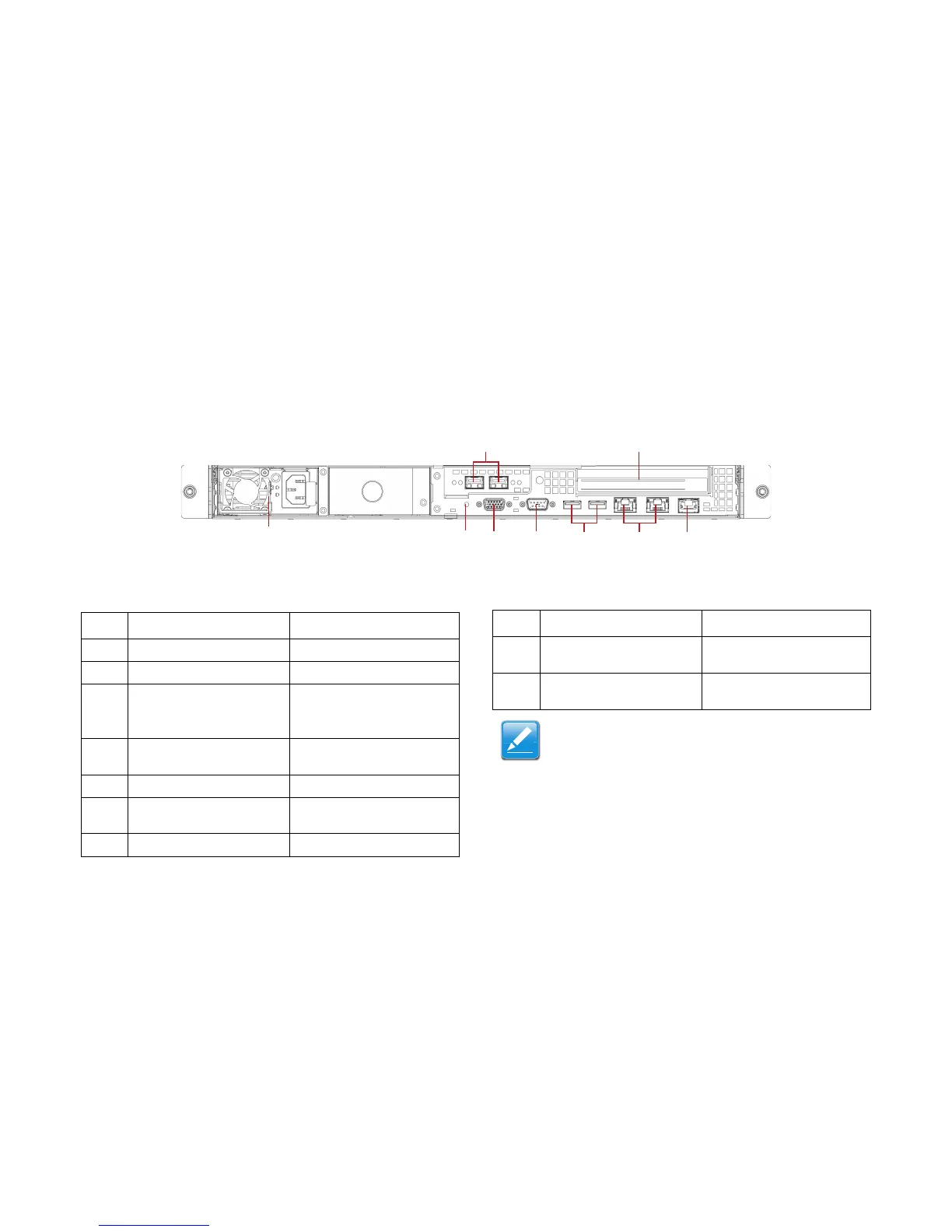

Figure 1-8. I/O Features (shown with ports on Mezzanine card)
12
9876534
Table 1-8: System I/O Features
I
TEM FEATURE DESCRIPTION
1 10GbE SFP+ Port Optional
2 PCIe Card PCIe x16 G3 card
3 PSU
Power supply unit
Left: PSU1
Right: PSU0
4ID button
Press this to illuminate the ID
LED on the front panel
5 VGA port Connect a monitor to this port
6 Console port
Connect a serial cable to this
port
7 USB port (2) USB 2.0 ports
8 GbE (or 10GbE) LAN port
Connect this to the data
network
9
Dedicated Management LAN
Port
Connect this to a network
monitoring station
Note:
The system supports single and redundant PSU. Redundant
PSU is optional.
Table 1-8: System I/O Features (Continued)
I
TEM FEATURE DESCRIPTION
