1.2 A Tour of the System
The system is available as a 2.5” or a 3.5” form factor. The following illustrations show the major component parts of these two vari-
ants.
2.5” HDD System

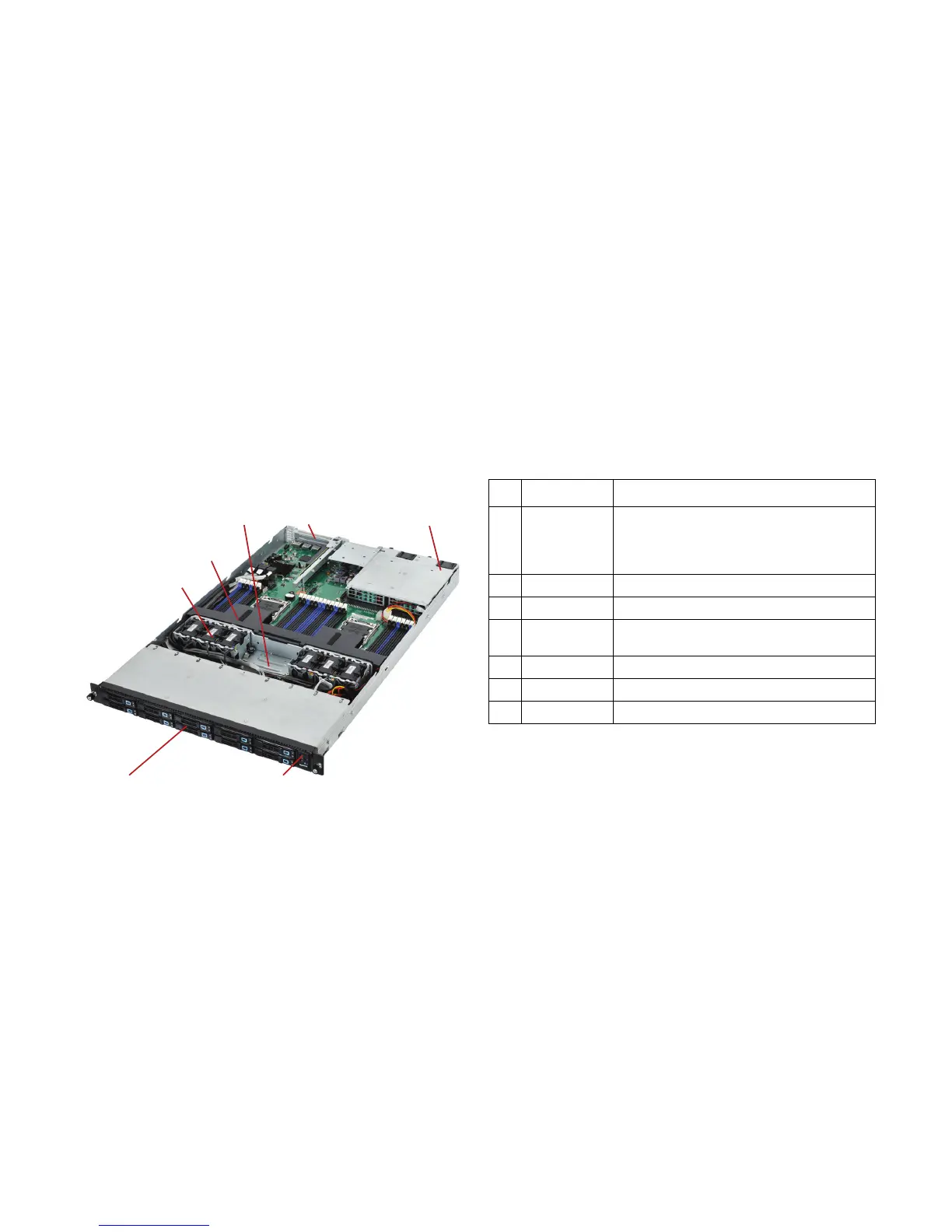

Figure 1-1. 2.5” HDD System Component Overview
Table 1-2: 2.5” HDD System Component Overview
NO. ITEM DESCRIPTION
1 Riser Assembly
(1) PCIe x16 G3 low profile riser slot
(1) PCIe x8 G3 10GbE SFP+ Mezzanine slot
(1) PCIe x8 G3 Quanta LSISAS/RAID Mezzanine
slot
2 Hot-Swap PSU (2) Power supply units
3 Front Panel Control and LED panel for system status
4
2.5” Hard
Drives
(10) 2.5” hard disk drives (HDD)
5 System Fan (6) Fan module assembly
6 Air Duct Maintains proper airflow throughout system
7 iBBU holder Backup battery unit for mezzanine expansion card
