NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-outs;
however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no
higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
035-24059-017 REV-
LD26943
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
CONTROL PANEL BOTTOM DETAIL
20.7 [0.81]
1177 [46.35]
5” VICTAULIC
INLET
5” VICTAULIC
OUTLET
137.5
[5.43]
5” VICTAULIC INLET
5” VICTAULIC OUTLET
2938.4 [115.69]
3” VICTAULIC OUTLET
3” VICTAULIC OUTLET
588.3
[23.16]
6968.9 [274.37] - FRAME LENGTH
7006.0 [275.83] - OVERALL LENGTH
4986.1 [196.30]
6459.3 [254.30]
3154.3 [124.18]
2061.5 [81.16]
1256.1 [49.45]
411.4
[16.20]
1275.7 [50.22]
1085.1 [42.72]
732.9 [28.85]
685.7
[27.00]
(OPTIONAL HEAT
RECOVERY UNIT)
2241.5 [88.25] - FRAME WIDTH
2253.344 [88.71]
OVERALL WIDTH
FRAME HEIGHT
2251.4 [88.64]
2397.7 [94.40]
1611.6 [63.45]
1305.1 [51.38]
1839.5 [72.42]
1753.2 [69.03]
194.6 [7.66]
36.4
[1.43]
ORIGIN
80.3
[3.16]
2077.3
[81.78]
15.9mm [5/8”] DIA
MOUNTING HOLES (TYP.)
QTC3205THE, QTC3225THE

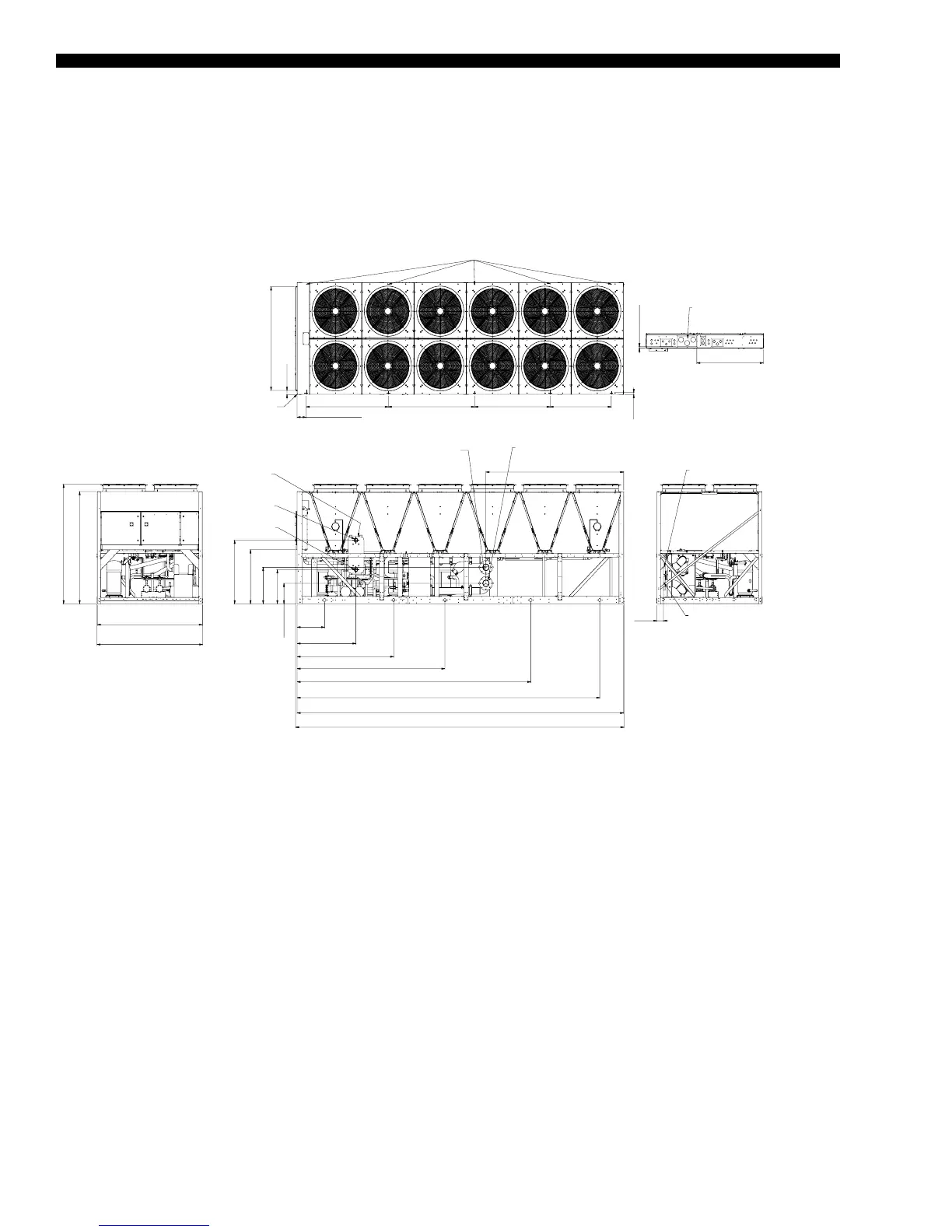

Unit Dimensions (Cont'd)
