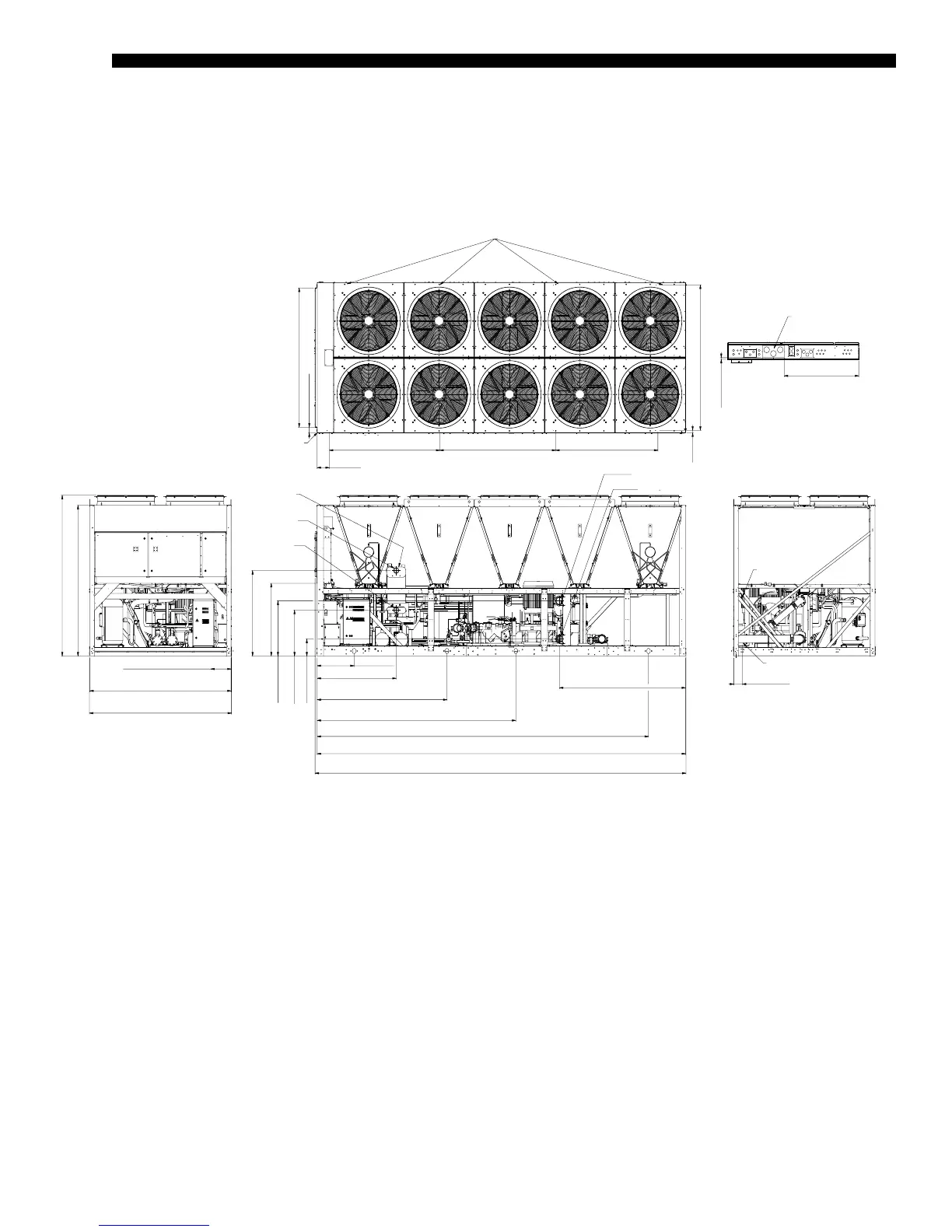

FORM QTC3-EG6 (1118)
QUANTECH
31
035-24059-012 REV-B
LD26942
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
CONTROL PANEL BOTTOM DETAIL
20.7 [0.81]
1177 [46.35]
4” VICTAULIC INLET
4” VICTAULIC OUTLET
4” VICTAULIC
INLET
4” VICTAULIC
OUTLET
5848.3 [230.25]
FRAME LENGTH
5885.7 [231.72]
5260.0
[207.08]
2002.8
[78.85]
3154.3
[124.18]
2061.5
[81.16]
1256.1 [49.45]
588.3 [23.16]
822.4 [32.38]
685.7 [27.00]
254.4 [10.02]
1275.7 [50.22]
1085.1
[42.72]
(OPTIONAL HEAT
RECOVERY UNIT)
3” VICTAULIC OUTLET
3” VICTAULIC INLET
FRAME WIDTH
OVERALL WIDTH
2254.4 [88.76]
2242.1 [88.27]
140.8mm OR 288.0mm
[5.54”]-[11.34”] -DIMENTION VARIES BASED
ON CHILLER MODEL SELECTED
FRAME HEIGHT
2248.0 [88.50]
136.8 [5.38]
1621.5
[63.84]
1839.5
[72.42]
1753.2
[69.03]
194.6
[7.66]
2077.3 [81.78]
82.4 [3.24]
ORIGIN
2169.2
[85.40]
36.4
[1.43]
MOUNTING HOLES (TYP.)
QTC3160TSE, QTC3150THE, QTC3170THE
Unit Dimensions (Cont'd)
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-
outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
