QUANTECH
FORM QTC3-EG6 (1118)
30
035-24059-010 REV-D
LD26941
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
CONTROL PANEL BOTTOM DETAIL
20.7 [0.81]
1177.0 [46.35]
4” VICTAULIC
INLET
4” VICTAULIC
OUTLET
MOUNTING
136.8 [5.38]
36.4 [1.43]
MOUNTING
HOLES TYPE
36.4 [1.43]
254.4 [10.02]
822.400 [32.3780]
WATER CONNECTIONS
885.9 [34.88]
4731.4 [186.28]
FRAME LENGTH
4768.9 [187.75]
588.3 [23.16]
15.9 [0.63]
MOUNTING
HOLES TYPE
1917.9 [75.51]
1518.6 [59.79]
1753.2 [69.03]
194.6 [7.66]
1473.2 [58.00]
1275.7 [50.22]
685.7 [27.00]
(OPTIONAL HEAT
RECOVERY UNIT)
FRAME HEIGHT
2248.0 [88.50]
FRAME WIDTH
OVERALL WIDTH
2255.7 [88.81]
2242.0 [88.27]
221 [8.7] OR 288.0 [11.34]
DIMENTION VARIES BASED
ON CHILLER SELECTED
3” VICTAULIC OUTLET
3” VICTAULIC INLET
2077.3 [81.78]
82.9 [3.26]
QTC3125TSE, QTC3140TSE, QTC3129THE

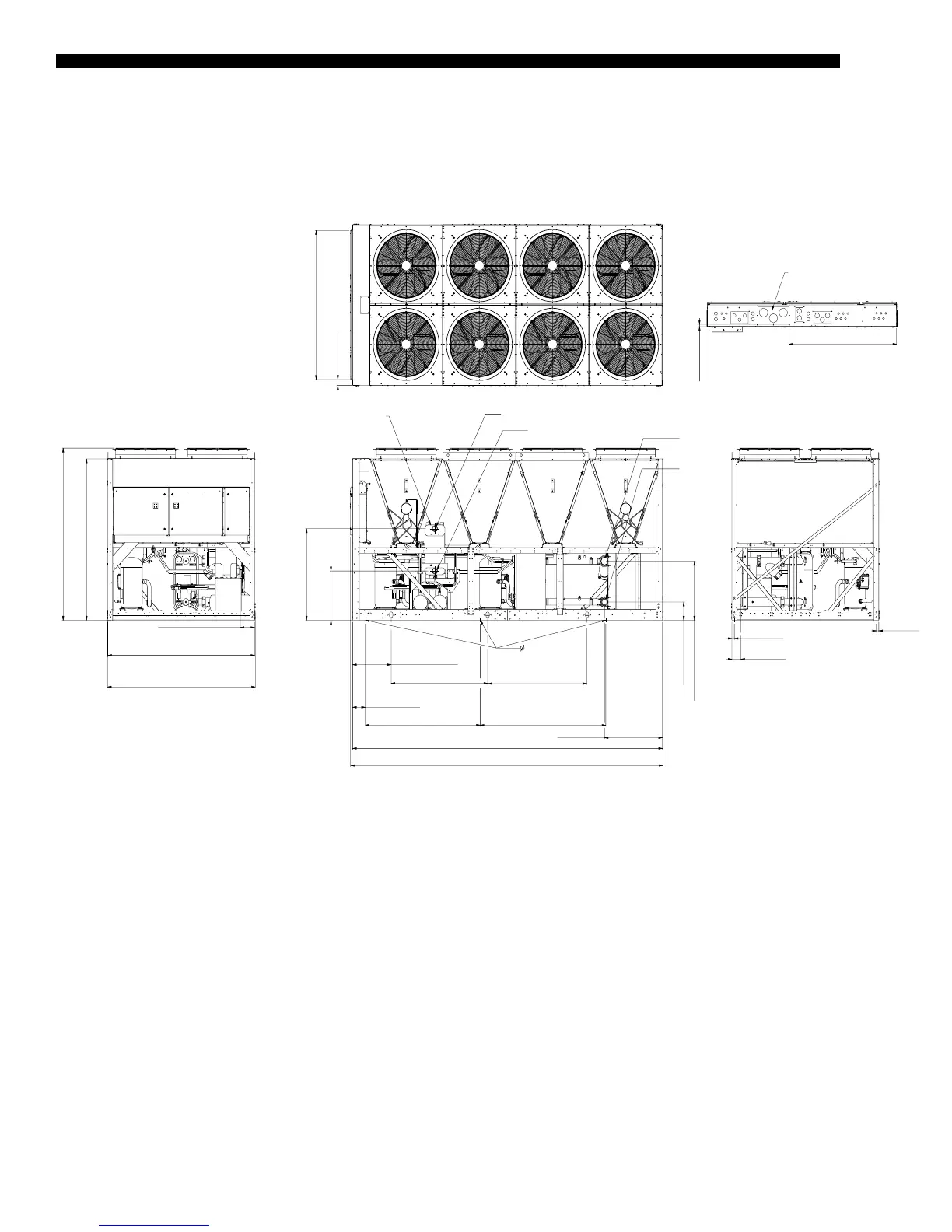

Unit Dimensions (Cont'd)
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-
outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
