FORM QTC3-EG6 (1118)
QUANTECH
29
QTC3110TSE, QTC3090THE, QTC3100THE
1177 [46.4]
1678 [66.1]
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
(190mm x 120mm EUROPEAN BUILD)
035-24059-006 REV E
573 [22.5]
1669 [65.7]
561 [22.1]
CONTROL PANEL BOTTOM DETAIL
(28mm EUROPEAN BUILD)
21 [0.8]
1298mm EUROPEAN BUILD
822 [32.4]
254 [10.0]
269 [10.6]
35 [1.4]
3” VICTAULIC
INLET
3” VICTAULIC
INLET
MOUNTING
HOLES TYPE
MOUNTING
HOLES TYPE
35 [1.4]
WATER CONNECTIONS
1753 [69.0]194 [7.6]
2434 [95.8]
15.9 [0.63]
MOUNTING
HOLES TYPE
FRAME LENGTH
3613 [142.2]
3244 [127.7]
3696 [145.5]
WATER CONNECTIONS
1222 [48.1]
1256 [49.5]
588 [23.1]
686 [27.0]
1276 [50.2]
(OPTIONAL HEAT
RECOVERY UNIT)
OPTIONAL
DISCONNECT SWITCH
(STANDARD ON CE)
OVERALL WIDTH
FRAME WIDTH
288 [11.3] OR 288.0 [11.34]
DIMENSION VARIES BASED
ON CHILLER SELECTED
2242 [88.3]
2254 [88.8]
(1497mm (50Hz))
1595 [62.8] (60Hz)
FRAME HEIGHT
2248 [88.5]
OVERALL HEIGHT DEPENDS ON BUILD LOCATION
REFER TO NOTES 5 ADN 6 ABOVE
2077 [81.8]
82 [3.2]
83 [3.3]

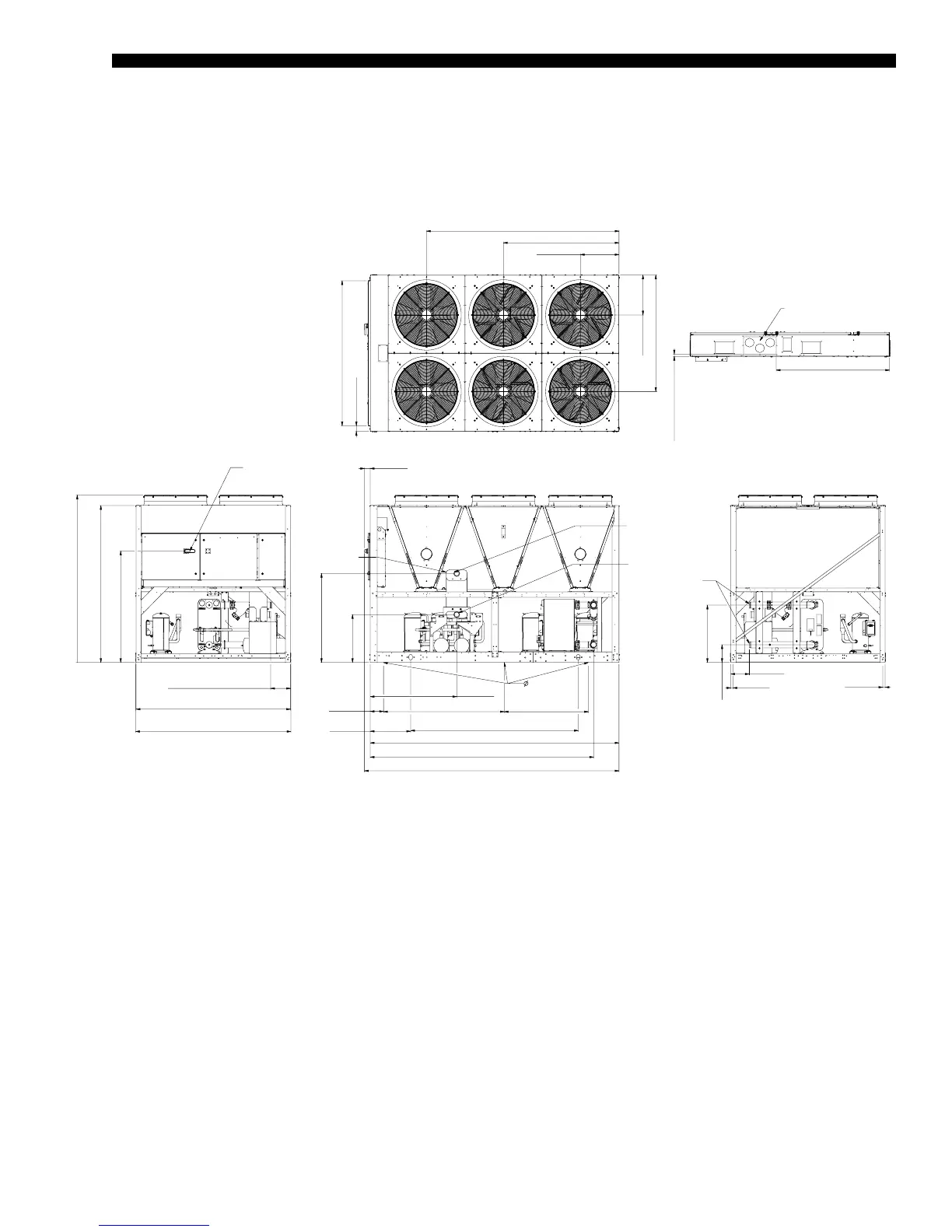

Unit Dimensions (Cont'd)
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-
outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
