QUANTECH
FORM QTC3-EG6 (1118)
28
LD23533
1678 [66.1]
1222 [48.1]
588 [21.1]
3” VICTAULIC INLET
2256 [88.8]
2242 [88.3]
(1497mm (50Hz))
1595 [62.8] (60Hz)
FRAME HEIGHT
2248 [88.5]
OVERALL HEIGHT DEPENDS ON BUILD LOCATION
REFER TO NOTES 5 ADN 6 ABOVE
035-24059-004 REV-E
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
(190mm x 120mm EUROPEAN BUILD)
CONTROL PANEL BOTTOM DETAIL
(28mm EUROPEAN BUILD)
21 [0.8]
822 [32.4]
254 [10.0]
269 [10.6]
35 [1.4] 35 [1.4]
3” VICTAULIC
OUTLET
3” VICTAULIC
OUTLET
(OPTIONAL HEAT
RECOVERY UNIT)
51.4 [2.02]
686 [27.0]
1276 [50.2]
1753 [69.0]
194 [7.6]
1256 [49.5]
16mm [5/8”]
MOUNTING
HOLES TYP
FRAME LENGTH
3022 [119.0]
3245 [127.8]
3696 [145.5]
WATER CONNECTIONS
OVERALL WIDTH
FRAME WIDTH
289 [11.4] 288.0 [11.34]
DIMENSION VARIES BASED
ON CHILLER MODEL SELECTED
OPTIONAL
DISCONNECT SWITCH
(STANDARD ON CE)
561 [22.1]
1669 [65.7]
1132 [44.6]
573 [22.5]
2077 [81.8]82 [3.2]
1298mm EUROPEAN BUILD
1177 [46.4]
QTC3095TSE

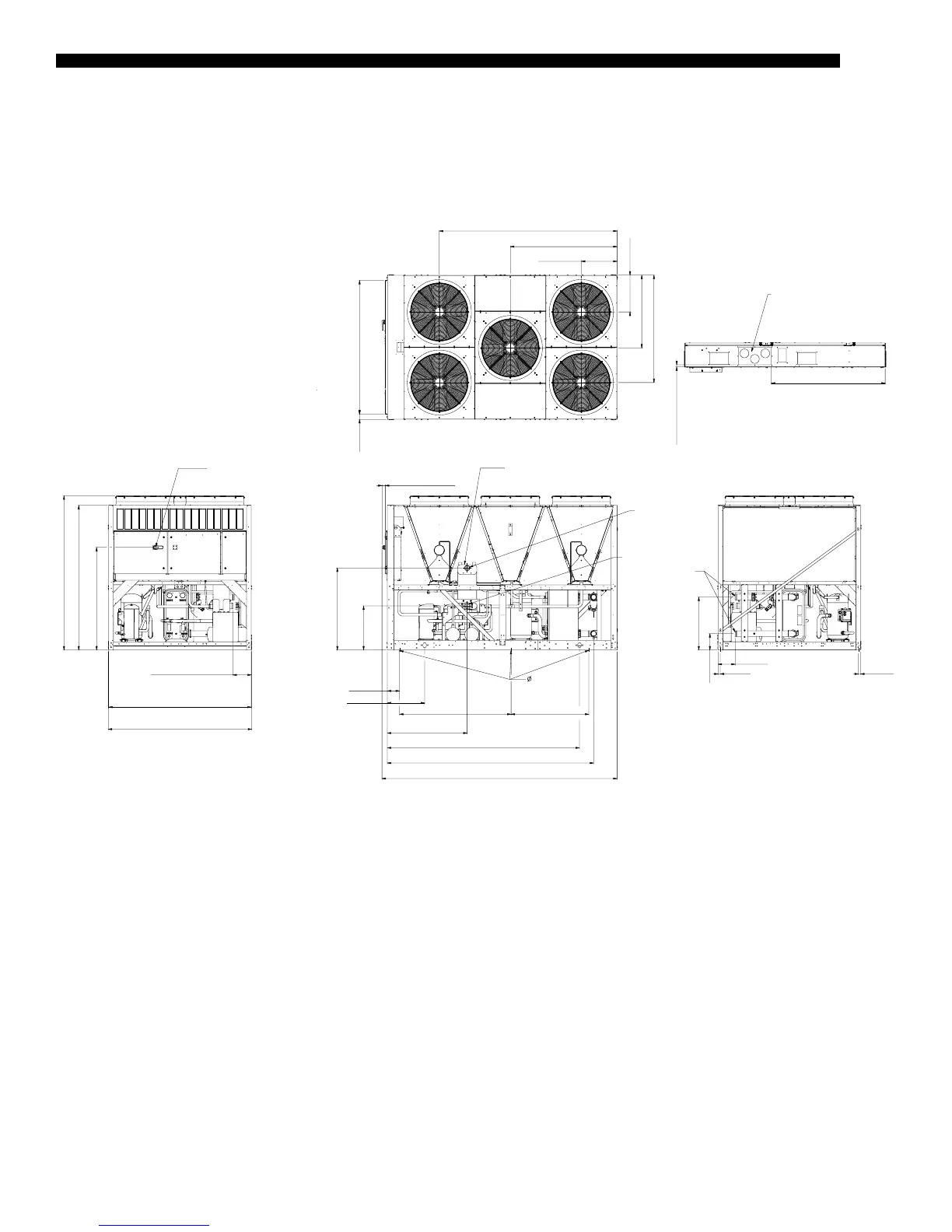

Unit Dimensions (Cont'd)
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airow patterns and possible diminished performance. The unit controls will optimize operation without nuisance high-pressure safety cut-
outs; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
