Quantum Data 701A User Manual

11
Calibrating
Locking Calibration Settings
The generator uses an internal hardware jumper to enable and disable changes to calibration settings.
If the Options > Calibration option is available, the jumper is set to enable re-calibration.
To prevent users from changing calibration settings:
1. Turn the generator off, and remove the back cover.
2. Locate the J10 jumper, which is near the lower-right corner of the board.
3. Connect the jumper to only one pin to disable user calibration. Connect both bins to enable user
calibration.
4. Install the back cover.
Adjusting Horizontal Scanning Frequency

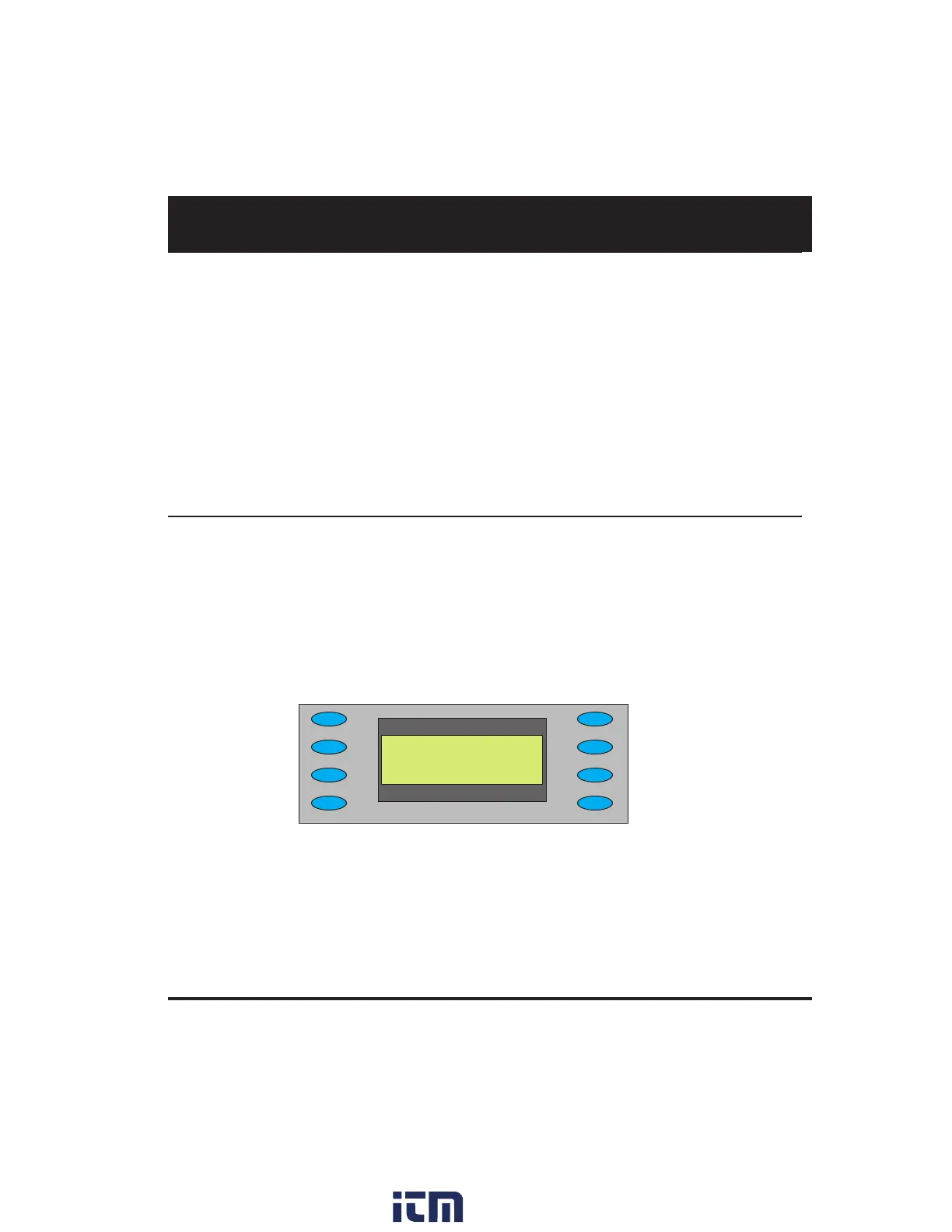

Select Test > Freq Shift, and then press the +/- buttons to increase or decrease the horizontal scan-
ning frequency of the current video format +/- 10% in 2% increments. The ^ character indicates the
percent deviation. The bottom number is the actual frequency.

  


w ww . . co m
information@itm.com1.800.561.8187

Quantum Data 701A Specifications

Horizontal Timing

horizontal frequency	1 KHz to 250 KHz
total pixels	144 to 4096
active range	16 to 4096 pixels

Vertical Timing

vertical frequency	1 Hz to 650 Hz
active lines	1 to 4096
scan types	Progressive, 2:1 Interlace

Video Outputs

timing accuracy	2%
SDI/HD-SDI bit stream	1.485 Gb/s and 1.485/1.001 Gb/s
signal swing	800 mV

Audio Outputs

connector	3.5 mm stereo phone jack
left signal tone	1 KHz
right signal tone	2 KHz

Power

battery type	Six AA 1500 mA-H rated rechargeable NiMH batteries
battery use time	8 hours
AC input	100-240 VAC @ 47-63 Hz

Size and Weight

size	H 5.5 x W 8.25 x D 2 inches
metric size	H 140 x W 210 x D 51 mm
ship weight	4 lbs
