6
Selecting Formats

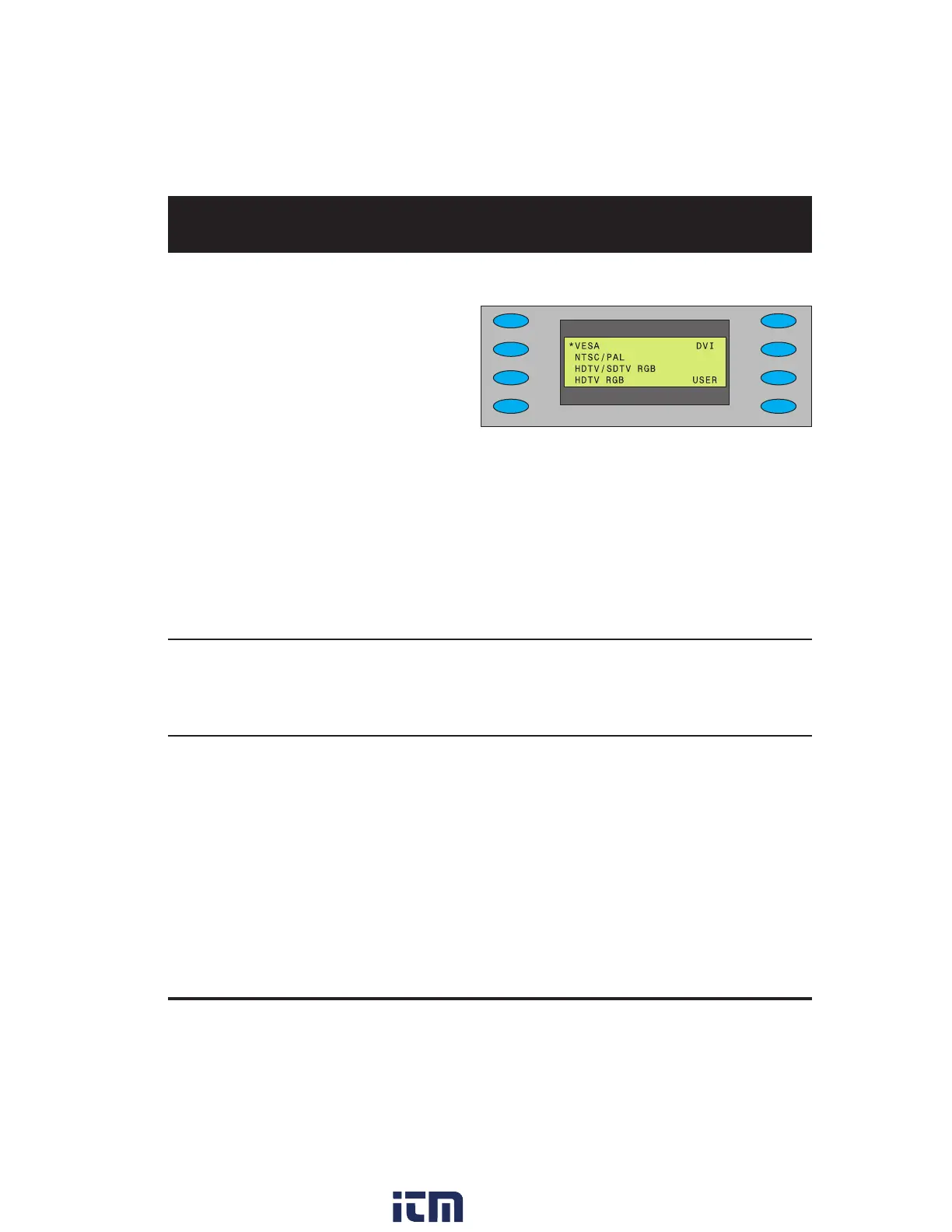

Viewing Formats by Signal Type
Press the Signal Type button, and then select a signal type, to list formats based on the selected signal
type.
VESA Red, green, blue component color video
per VESA standards. (DVI-to-VGA adaptor
used for outputs.)
NTSC/PAL Composite color baseband video
signal (BNC connector) and Separate Lu-
minance and Chrominance video signals
(S-Video connector) or RGB component video per NTSC and PAL standards.
Names of formats using modulated RF output end with _Cnn, where nn is the NTSC-M or PAL-G
television channel used.
HDTV/SDTV-RGB Luminance plus color difference signals per HDTV standards
HDTV RGB RGB component color video signals per HDTV standards
HD/SDI Digital video signals (701A only)
USER User-dened formats, of any type, stored in non-volatile memory
Selecting Formats
Press the Format button to select from a list of video formats of the type selected from the Signal Type
menu.
Reloading Standard Formats
If you modify or delete standard formats, you can restore the original formats by reloading the standard
formats.
To reload the standard formats:
1. Select Options > Clr_Fmts to delete all formats, including user-created formats.
2. Select Options > Reload Fmts to restore the standard formats to their original memory locations.
The standard formats will replace any user-created formats in the original memory locations. User-
created formats in locations not previously occupied by a standard formats will not be replaced.
