Quantum Data 701A User Manual

8
Options Menu

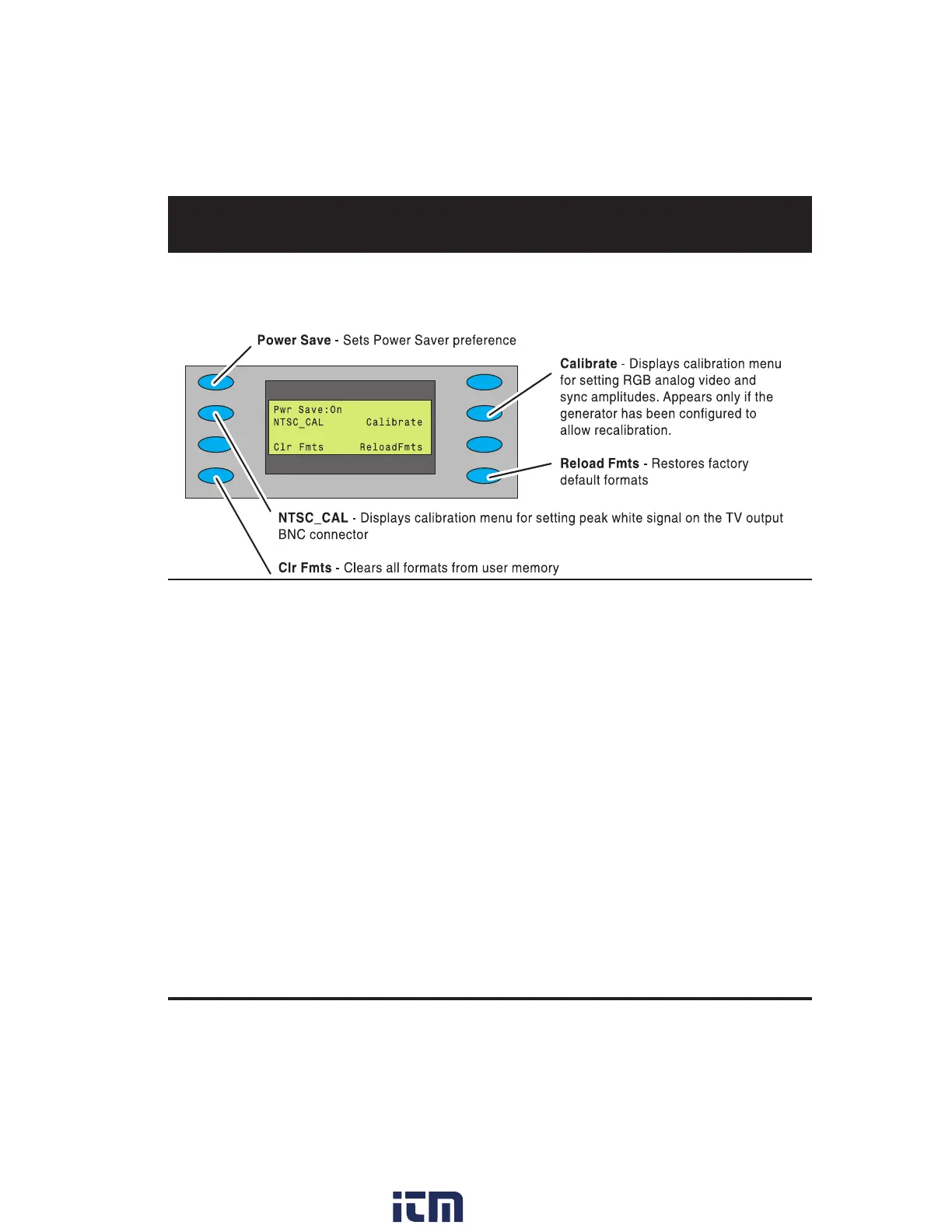

Press the Options button to set system-level options.
Setting Power Save Preferences
Hot Plug:In
Setting Power Save Preference
When the Power Save preference is on, and the generator is on battery power, the generator will turn
off after 30 minutes of no front panel activity.
If the generator is running a test sequence in Burn-in mode, the Power Save preference is ignored.
To set the Power Save preference, select Options > Pwr Save.
w ww . . co m
information@itm.com1.800.561.8187

Quantum Data 701A Specifications

Horizontal Timing

horizontal frequency	1 KHz to 250 KHz
total pixels	144 to 4096
active range	16 to 4096 pixels

Vertical Timing

vertical frequency	1 Hz to 650 Hz
active lines	1 to 4096
scan types	Progressive, 2:1 Interlace

Video Outputs

timing accuracy	2%
SDI/HD-SDI bit stream	1.485 Gb/s and 1.485/1.001 Gb/s
signal swing	800 mV

Audio Outputs

connector	3.5 mm stereo phone jack
left signal tone	1 KHz
right signal tone	2 KHz

Power

battery type	Six AA 1500 mA-H rated rechargeable NiMH batteries
battery use time	8 hours
AC input	100-240 VAC @ 47-63 Hz

Size and Weight

size	H 5.5 x W 8.25 x D 2 inches
metric size	H 140 x W 210 x D 51 mm
ship weight	4 lbs
