Determining the DXi4700 Model
Quantum DXi4700 Installation Guide 17
Item Description
3 Array/Expansion module
4 Accessory Kit
5 Bezel
6 Box
Determining the DXi4700 Model
You will need to determine if the DXi system is a DXi4700 G1 or DXi4700 G2. Model information is located
on the pull-out information tag on the front of the Node (see Figure 4 below).
l The DXi4700 G2 information tag includes “G2” in the part number (see Figure 5 below).
l The DXi4700 G1 information tag does not include “G1” in the part number (see Figure 6 below).

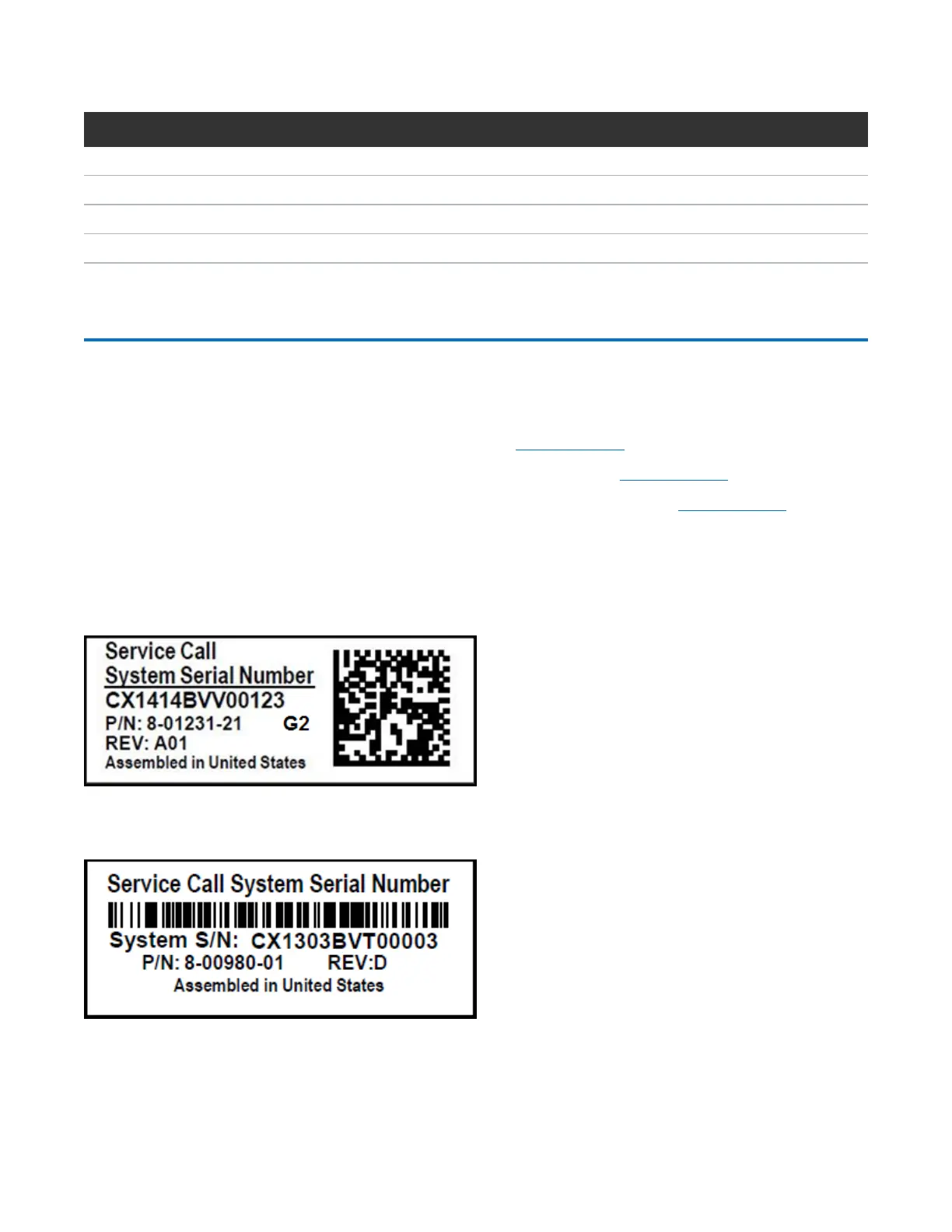

Figure 4: DXi4700 Information Tag
1. Information Tag
Figure 5: DXi4700 G2 Information Tag
Figure 6: DXi4700 G1 Information Tag
