Quantum DXi4700

Chapter 9: Configuration
System
Quantum DXi4700 User’s Guide 300

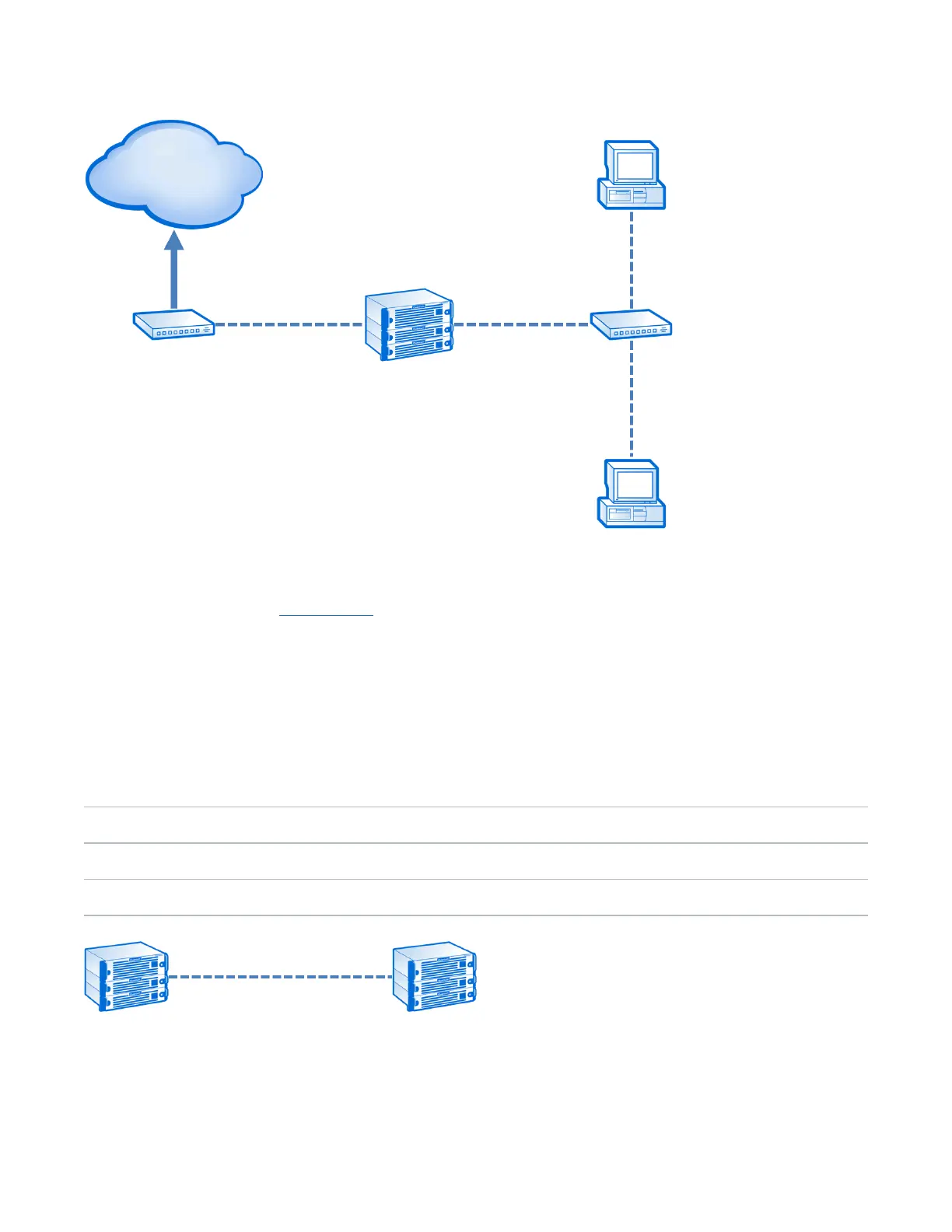

Example 2: Segments and Target on the Same Subnet
In the example below (see on page 290), the DXi has two segmented interfaces, one for data and
management traffic, and one for replication traffic:
l The source DXi management/data IP address, the source DXi replication IP address, and the target DXi
IP address are all on the same subnet (192.168.10.x).
l To make sure the replication segment is used when communicating with the target DXi, you must add a
host route in the Routing Details section on the source DXi.
In this example, you would specify the following routing details for the replication interface on the source
DXi:
Destination Use the IP address of the target DXi (192.168.10.200).
Dest Netmask Use 255.255.255.255.
Dest Gateway Use the replication IP address of the source DXi (192.168.10.100).
