Quantum DXi4700 User Manual

Chapter 10: Utilities
Analyzer
Quantum DXi4700 User’s Guide 345

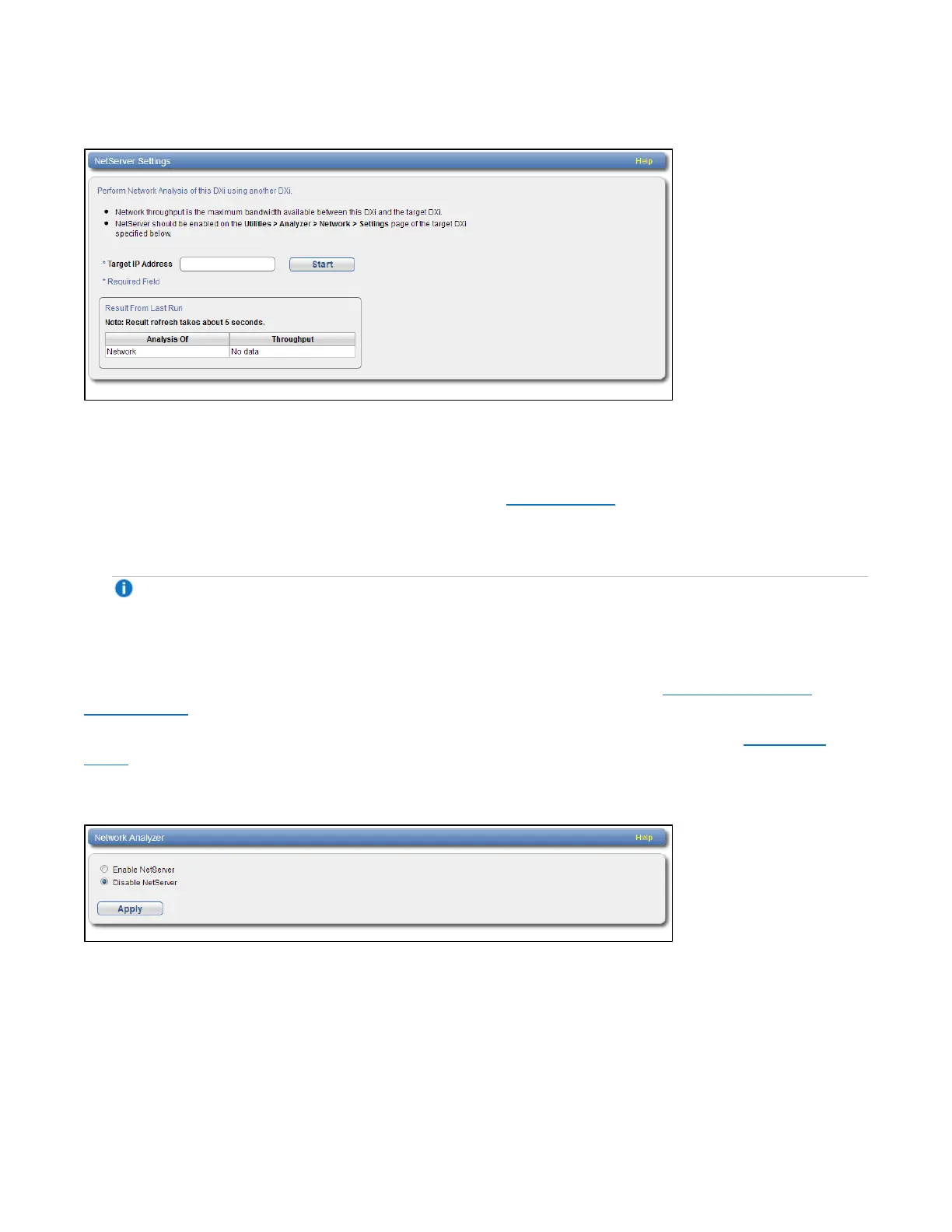

Figure 226: Performance Page
To perform network analysis:
1. In the Target IP Address box, enter the IP address of the system to perform network analysis with.
The target system must have NetServer enabled (see Settings below).
2. Click Start.
The throughput result is displayed under Result From Last Run in MB/s.
Note: It takes approximately 5 seconds to refresh the results.
Settings
The Settings page allows you to enable or disable NetServer on the DXi4700. NetServer must be enabled
on the target DXi4700 system to perform network analysis with the system (see Performance on the
previous page).
To access the Settings page, on the Network Analyzer page, click the Settings tab (see Figure 227
below).
Figure 227: Settings Page
To enable or disable NetServer on the target DXi4700:
1. Select Enable NetServer to enable NetServer.
Or select Disable NetServer to disable NetServer.
