Quantum DXi4700

Chapter 4: Configuration Wizards
Replication Wizard
Quantum DXi4700 User’s Guide 93

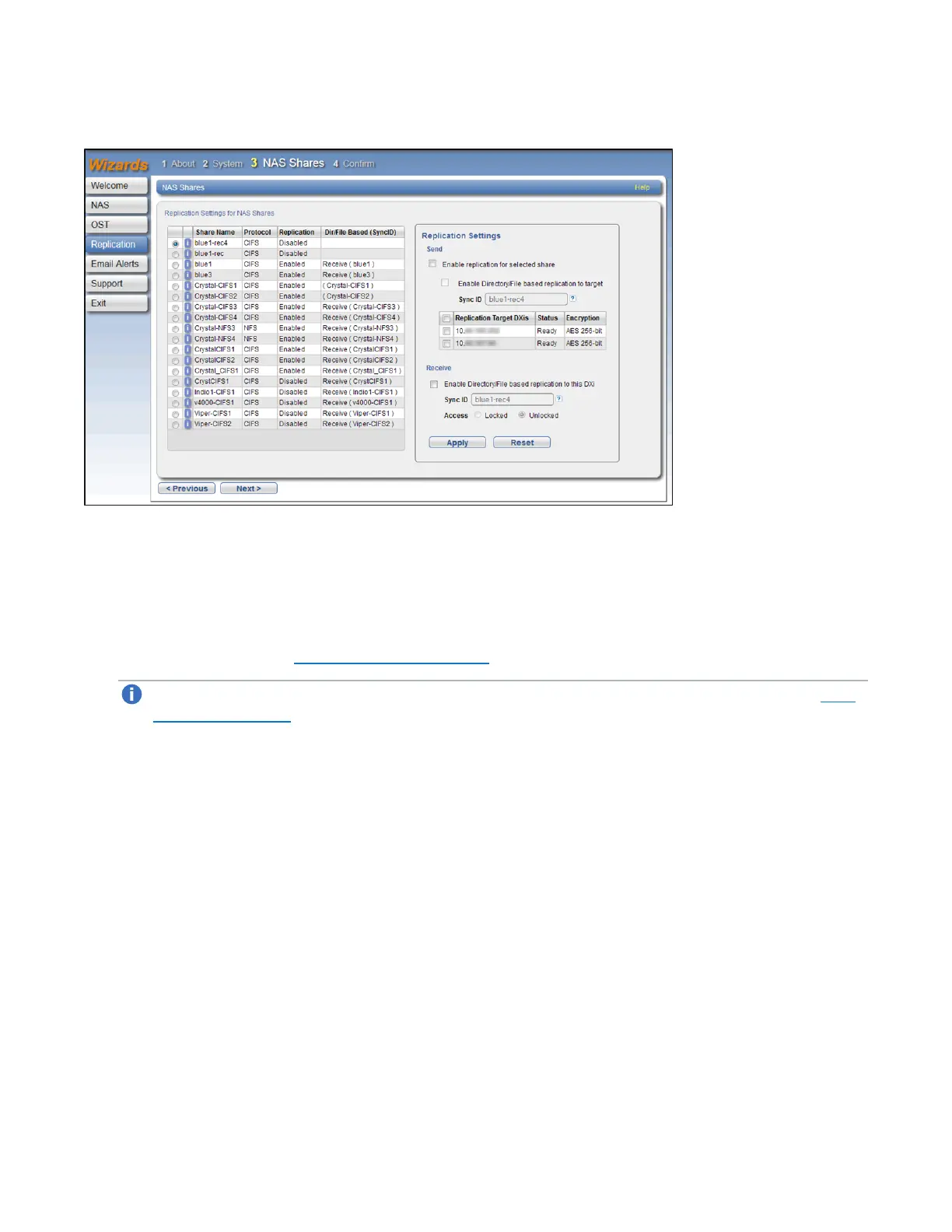

Figure 59: Replication Wizard: NAS Shares
Step 3: VTL Partition (DXi4700 VTL and Multi-Protocol Configurations
Only)
1. Select a VTL partition in the Replication Settings for VTL Partitions section to manage its
replication settings (see Figure 60 on the next page).
Note: For help adding VTL partitions to the system, use the VTL Configuration Wizard (see VTL
Wizard on page 75).
2. To configure the partition to replicate its data to another DXi system, enter the following information
under Send:
a. Select the Enable replication for selected partition check box to enable replication for the
partition.
b. (Optional) Select the Enable Cartridge based replication to target check box to enable
Cartridge Based Replication for the partition, and then enter a Sync ID in the box.
With Cartridge Based Replication, a cartridge is automatically replicated when it is unmounted.
After replication, the replicated cartridges are immediately available on the target system.
The Sync ID is used to identify the target partition that will receive replicated data from the source
partition. The Sync ID must be identical to the Sync ID of the target partition on the target system.
c. Select the check box for each replication target you want to replicate the partition to. When the
partition is replicated, its data will be sent to all selected targets.
3. To configure the partition to receive replicated data from another DXi system, enter the following
information under Receive:
