Installing Components in the DXi6900 Node
Quantum DXi6900 Installation Guide 25
a. Align the tabs on the cooling shroud with the securing slots on the chassis (see Figure 16 below).

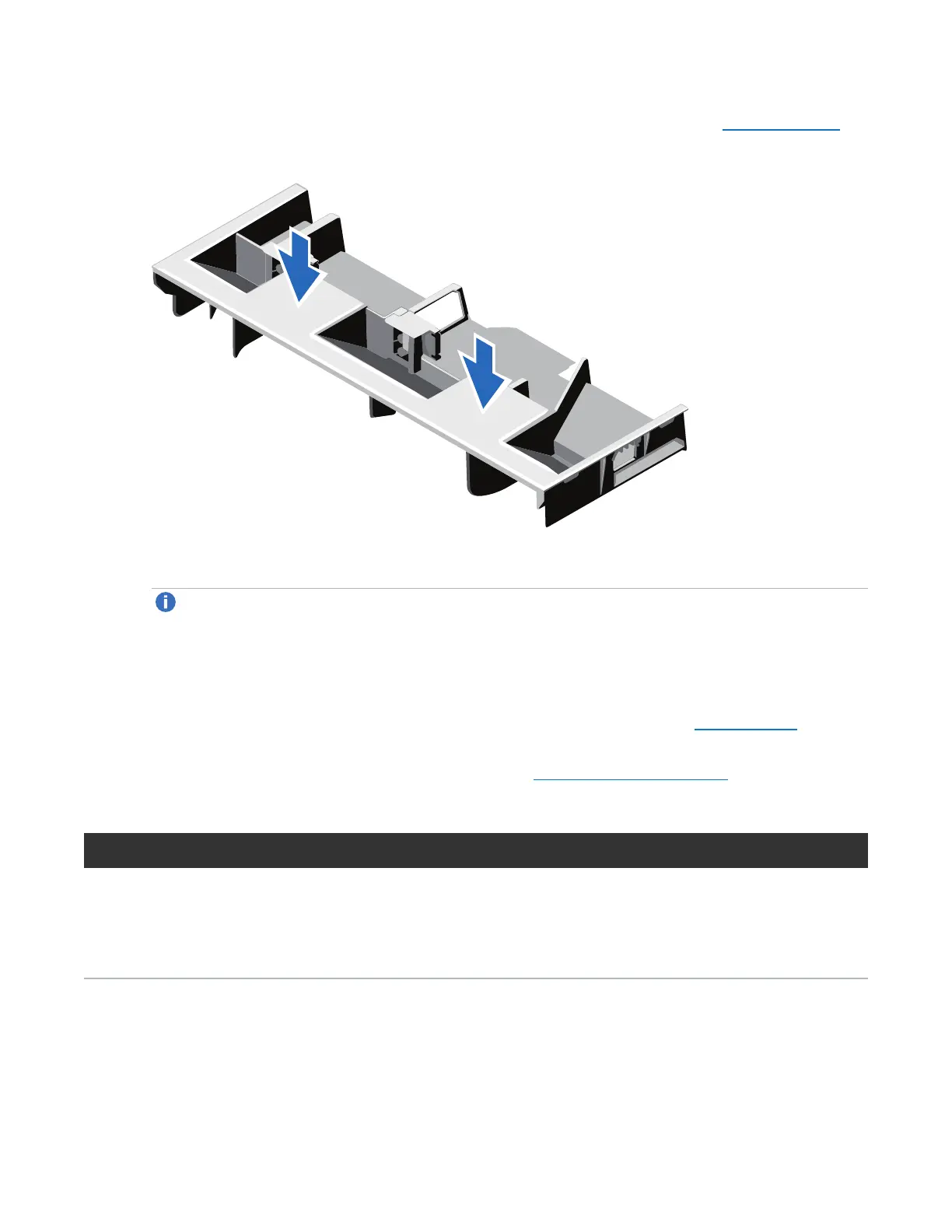

Figure 16: Replacing the Cooling Shroud
b. Lower the cooling shroud into the chassis until it is firmly seated.
Note: For proper seating of the cooling shroud in the chassis, ensure that the cables inside
the system are routed along the chassis
Installing the Optional Network Cards
The following network card options are available for all DXi6900 configurations (see Table 2 below):
The additional Ethernet ports can be used for management, replication, or data traffic. If ordered with the
configuration, install the provided optional network cards (see Figure 17 on the next page).
Table 2: DXi6900 Network Card Options
DXi6900 Configuration Actions to Take
DXi6900 G1 If ordered with the configuration, install one of the following
network card options in PCIe slot 2:
l Quad port i350 1 GbE card
l Dual port X520 10 GbE card (optical or Twinax)
