2. M3 offset mounting screws1. M3 mounting screws

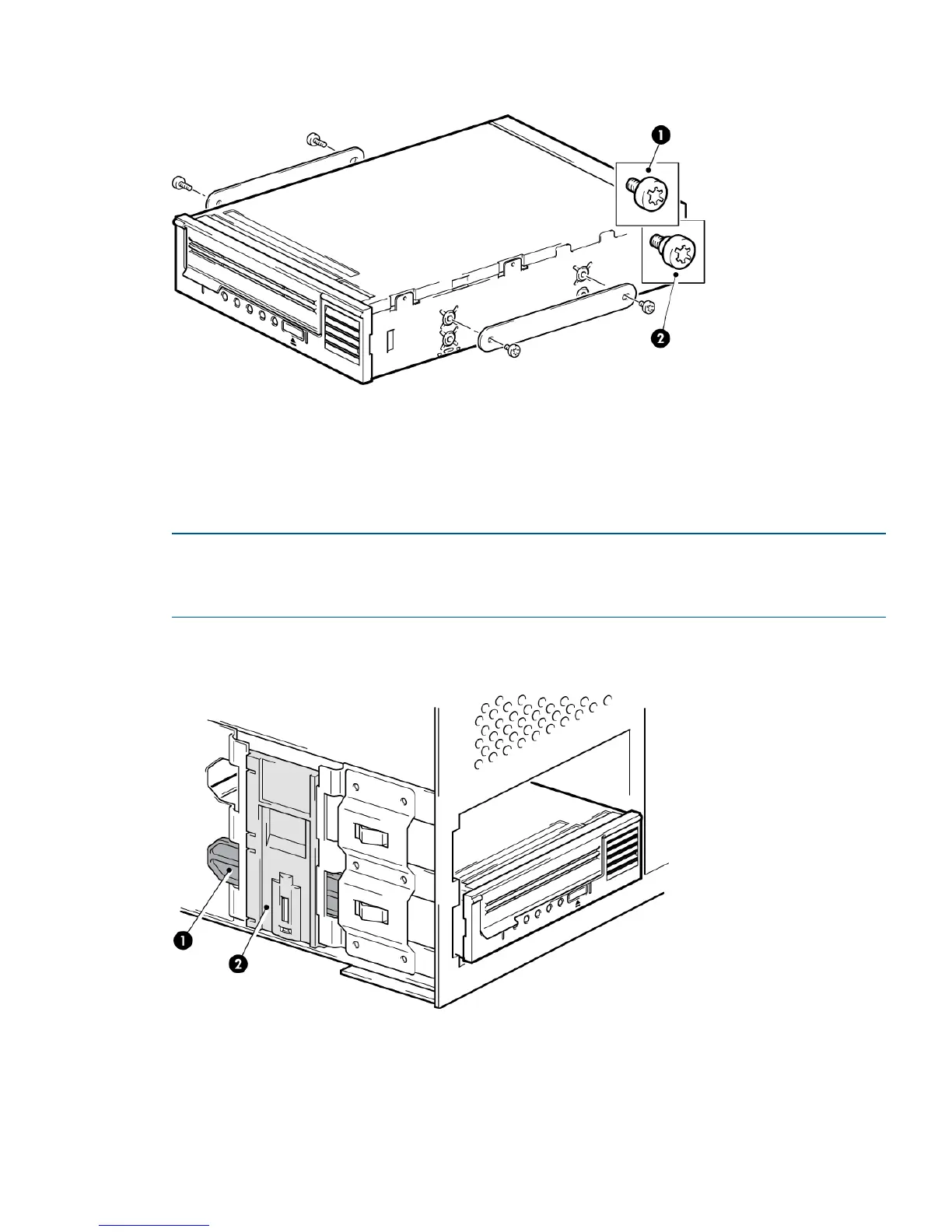

Figure 3 Attaching locating screws to a half-height tape drive
Install drive
NOTE: If cable access for the tape drive bay is awkward, it may be easier to access power and other
connections if the tape drive is installed in the top bay. You may need to move other devices to lower
bays to achieve this. Refer also to your server documentation.
Slide the tape drive into the open bay, aligning the tray or rails with the slots in the bay, as shown in
the following figure.
Figure 4 Installing tape drive
Install drive 9
