QXS-4 Series Specifications 23
56 Drive Expansion Chassis: Rear Panel Components

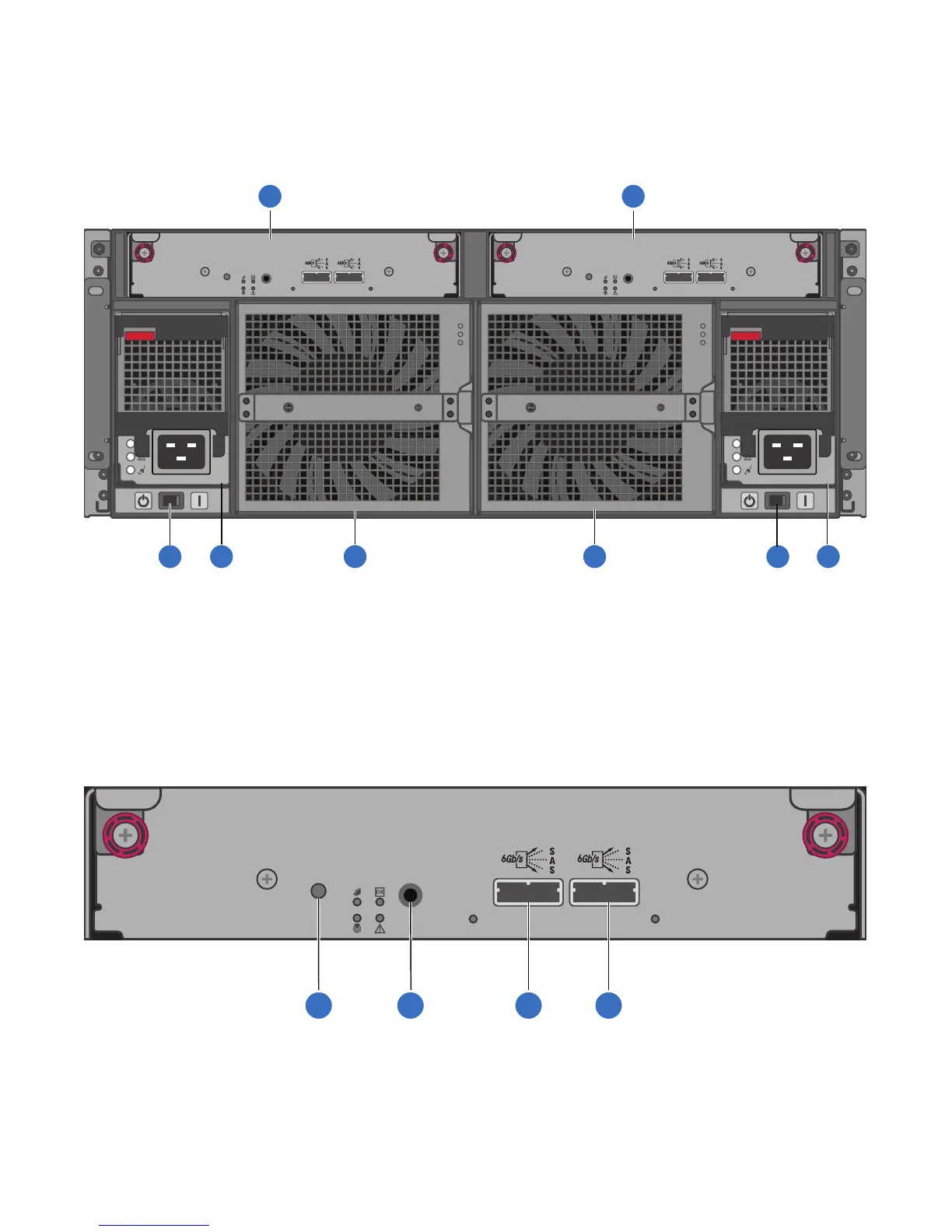

Figure 22 provides the 4U56 drive expansion chassis (rear panel components).
Figure 22 4U56 Drive Expansion Chassis (rear panel components)
Figure 23 provides the 4U56 drive expansion I/O module (ports identified).
Figure 23 Expansion I/O Module (ports identified)
LINKLINK
SERVICE
TUONI
LINKLINK
SERVICE
TUONI
3 4 5 5 3 4
12
1 Expansion I/O module A 2 Expansion I/O module B
3 AC power supply switch 4 Power supply module
5 Fan control module (FCM)
LINKLINK
SERVICE
TUONI
1
2
3
4
1 Disabled button (used by engineering/test only) 2 Service port (used by service personnel only)
3 mini-SAS In port 4 mini-SAS Out port
