Quantum QXS Series User Manual

Chapter 3: Connecting Hosts
Connect the Chassis to Hosts
QX and QXS Setup Guide 101

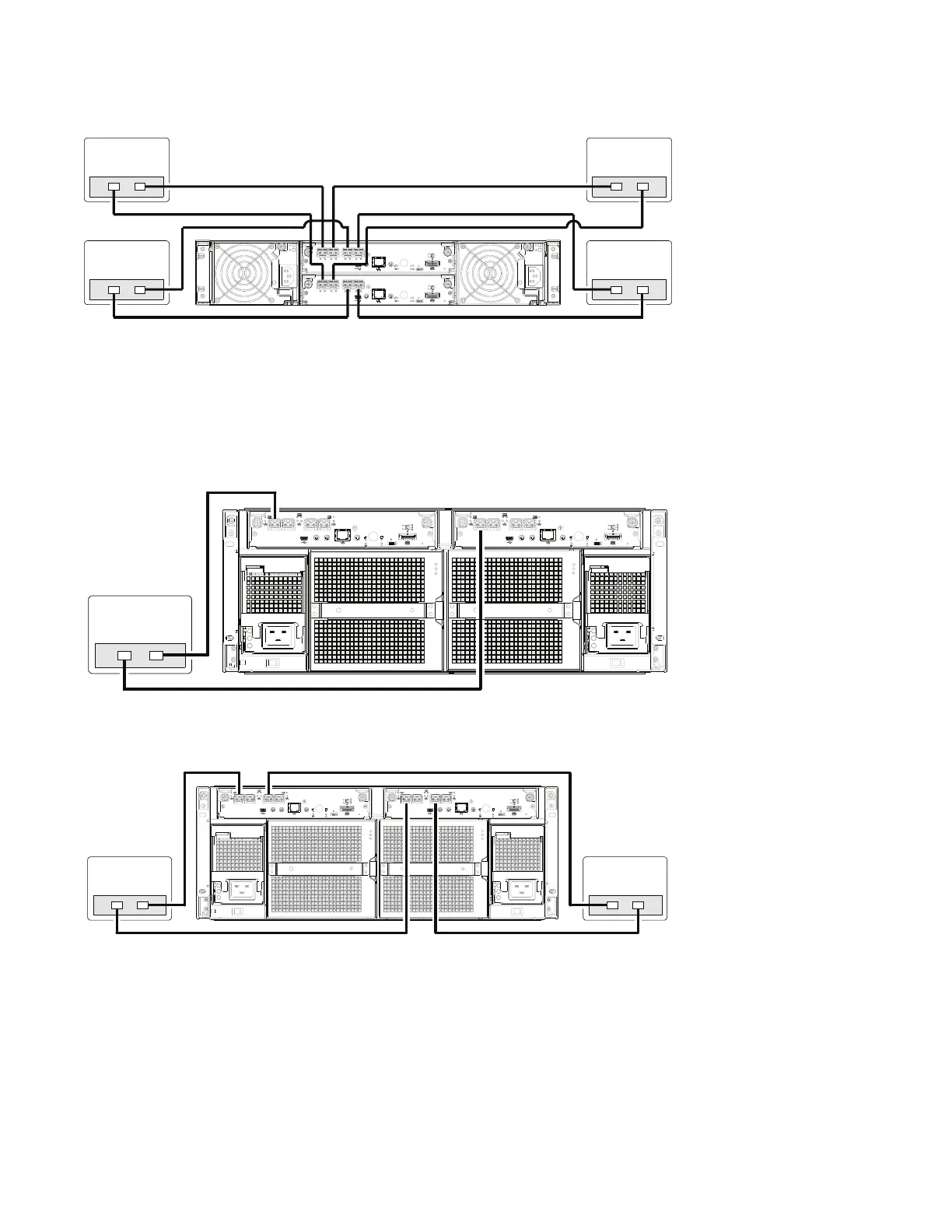

Figure92:Connecting hosts: Four servers and one HBA per server, dual path
6Gb/s
6Gb/s
S
S
A
S
S
A
56-Drive System
This section provides representative illustrations connections to hosts.
Figure93:Connecting hosts: direct attach—one server/one HBA/dual path
6Gb/s 6Gb/s
Figure94:Connecting hosts: direct attach—two servers/one HBA per server/dual path
6Gb/s 6Gb/s
