Quantum QXS Series User Manual

Chapter 1: Components
QXS-656 System
QX and QXS Setup Guide 38

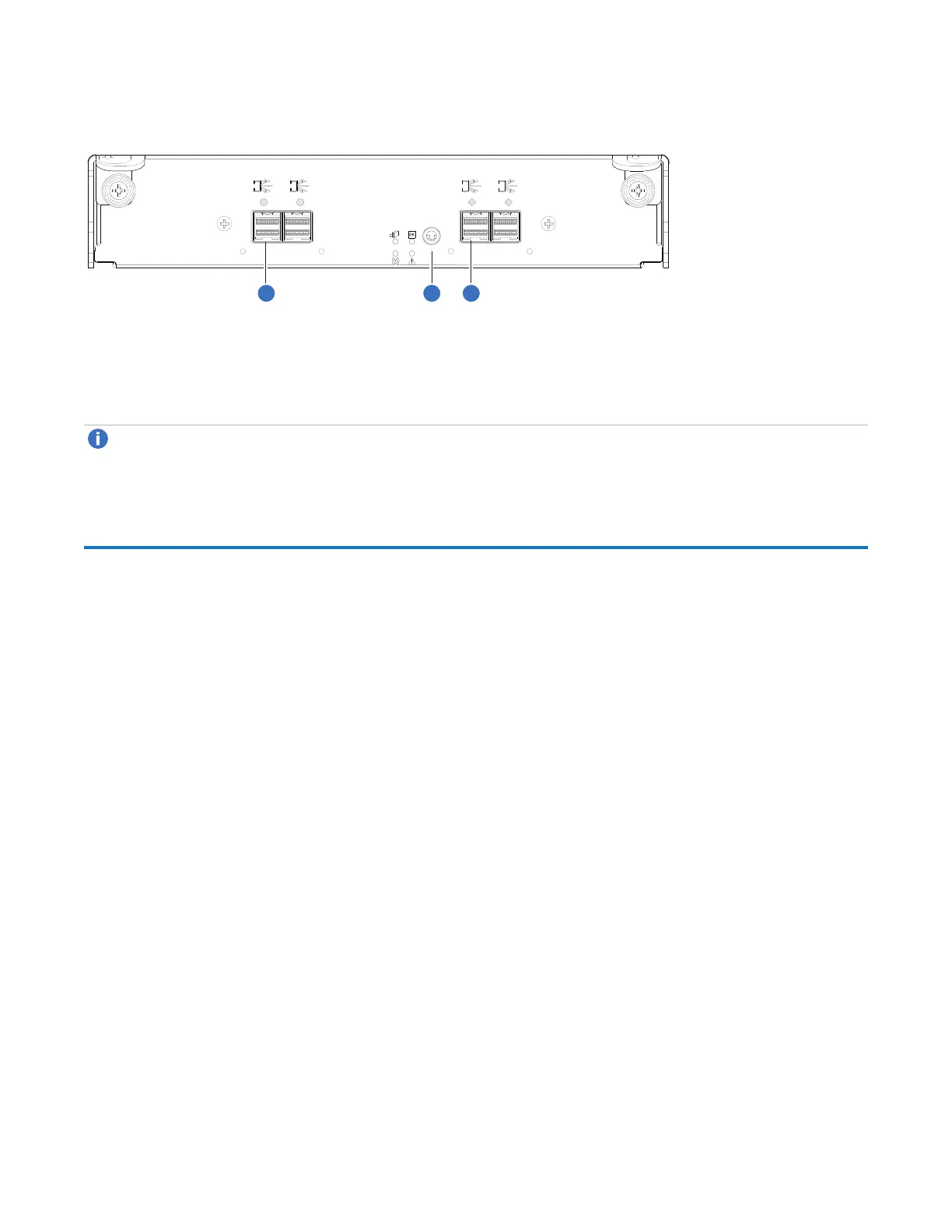

Figure46:Closeup of Expansion I/O Module
S ERVICE
IN
LINK LINK
6Gb/s
S
S
A
6Gb/s
S
S
A
OUT
LINK LINK
6Gb/s
S
S
A
6Gb/s
S
S
A
2 31
1 2
3
1. HDMini-SASPorts–SASIn
2. ServicePort(usedbyservice
personnelonly)
3. HDMini-SASPorts–SASOut
Note:The 2U48 RAID chassis support a number of expansion chassis. Refer to the Release Notes for
the number of expansion chassis and number of drives supported.
QXS-656 System
The bezel, comprised of a vented cover attached to an electro-magnetic interference (EMI) shield, is pre-
assembled and packed within a box contained in the master shipping container. Instructions for
attaching/removing the bezel are provided in the QX and QXS Bezel Installation Guide.
The 4U56 drive chassis is used in QXS-656 system.
