Chapter 1: Components
QXS-648 System
QX and QXS Setup Guide 35
Host CNC Ports Configured with SFPs (FC or iSCSI)
The following figure shows CNC ports configured with SFP+ transceivers that support 4, 8, or 16 Gb FC, or
10 GbE iSCSI connections. The SFPs look identical. Refer to the CNC LEDs that apply to the specific
configuration of your CNC ports.

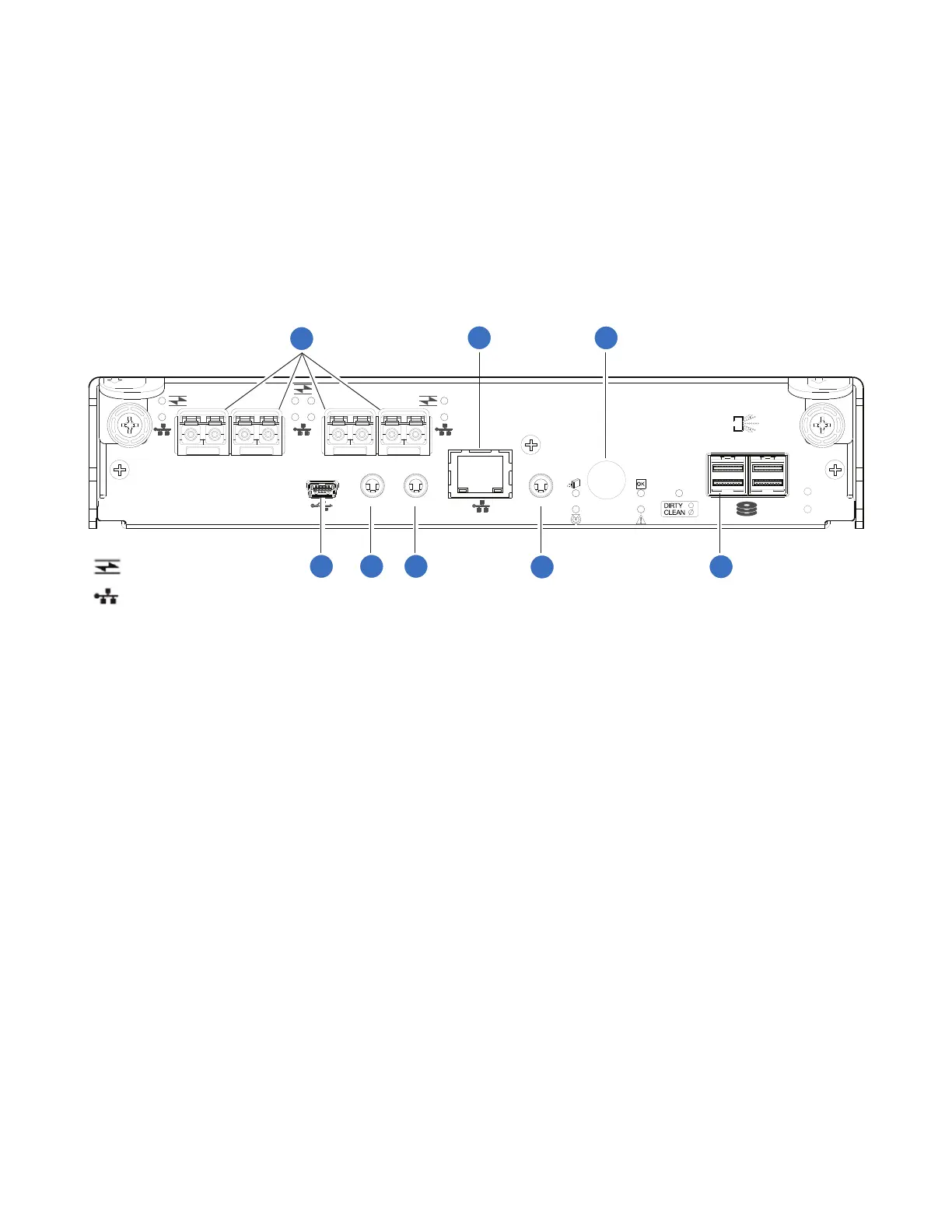

Figure42:Controller I/O Module with FC or iSCSI Host CNC Ports
CACHE
CLI
CLI
LINK
ACT
S ERVICE−1S ERVICE−2
PORT 0 PORT 1 PORT 2 PORT 3
MGMT
EXP 0 EXP 1
6Gb/s
S
S
A
LINK 0
LINK 1
5
2 3 6 8
1
7
4
= FC LEDs
= 10GbE iSCSI LEDs
1
2
3 4
5
6
7
8
1. CNCFCoriSCSISFP+(portsusedforhost
connectionorreplication)
2. CLIPort(USB-TypeB)
3. ServicePort2(ServicePersonnelUseOnly)
4. ReservedforFutureUse
5. NetworkPort
6. ServicePort1(ServicePersonnelUseOnly)
7. DisabledButton(usedbyengineeringonly)
(Stickershowncoveringtheopening)
8. Mini-SASExpansionPort
