Quantum Scalar i500: Rackmount Kit Installation
6-01492-04 Rev A
December 2013
Installing Additional Modules Into the Rack 15
b Place the cage nut in the desired hole. Insert one hinge in the hole first,
then pinch the cage nut and push it into the hole until it snaps into
place. (You may want to use a screwdriver to help push the hinge into
the hole.)
5 To prepare the module to be stacked in the rack, open the module’s access
door and raise the guide pin by pulling it up and turning it slightly, as if it
were a screw. Otherwise, the guide pin may scratch the front doors of the
module on which you are stacking it (see
Figure 8).

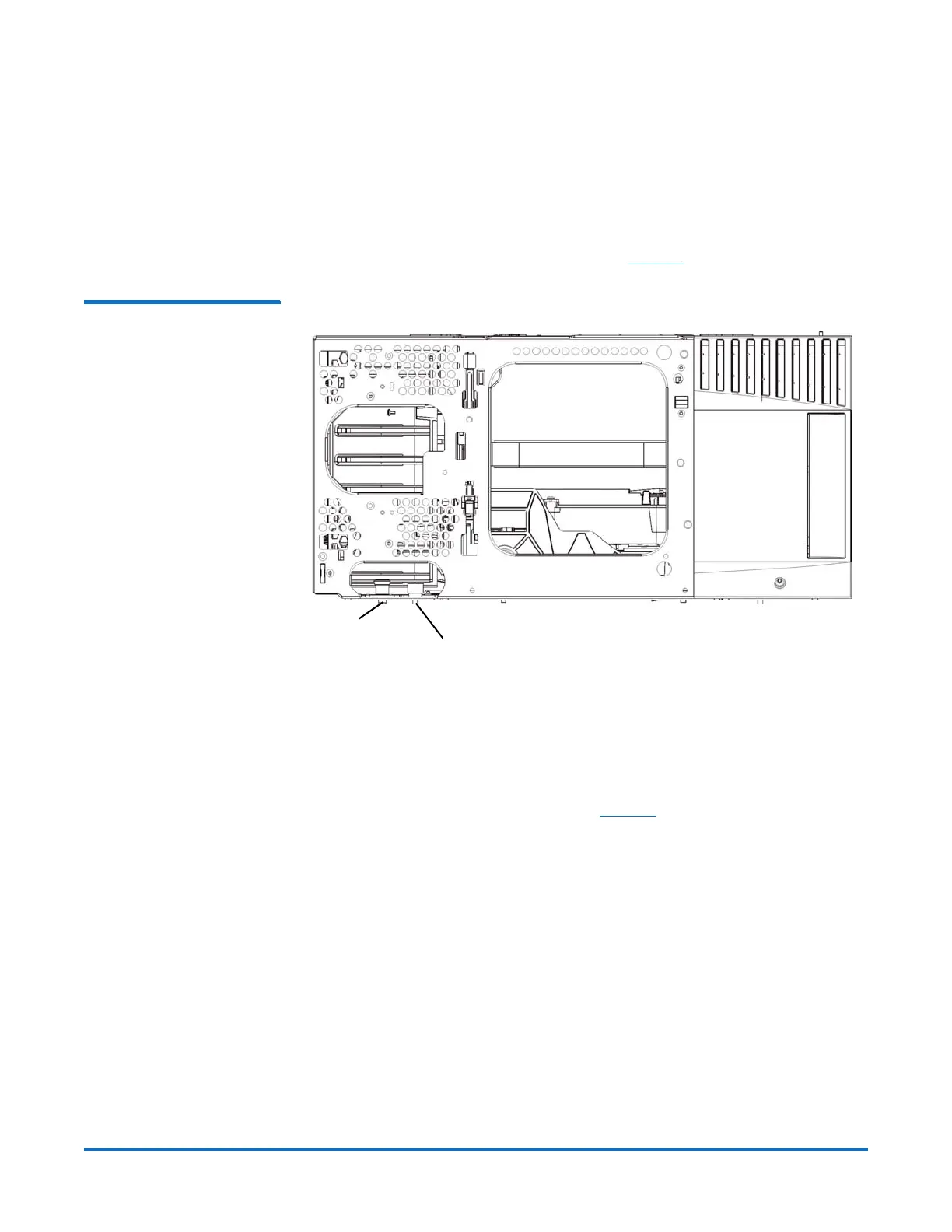

Figure 8 Guide Pins
6 Lift the module, align it so that it is parallel with the module below it, and
slide it into place.
7 Lower the module’s guide pin by turning it and pushing it down.
8 Secure the module to the module beneath it by tightening the thumbscrews
located at the base of the front and back of the module. Press down the
thumbscrew, and then tighten it (see
Figure 9 on page 16).
