Quantum Scalar i500: Rackmount Kit Installation
6-01492-04 Rev A
December 2013
Installing Additional Modules Into the Rack 17

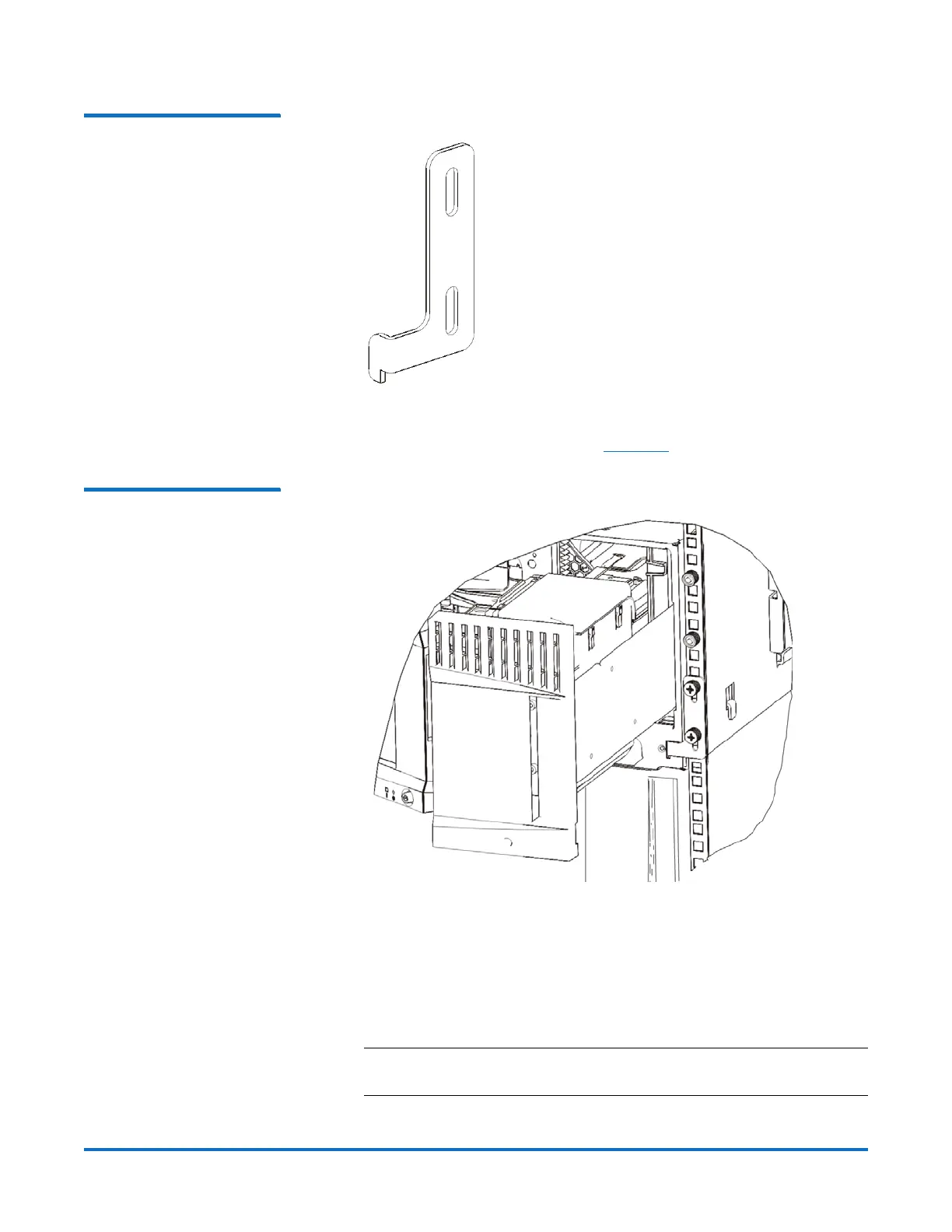

Figure 10 Right Rack Ear Hinge
b Using two M5 thumbscrews, fasten the rack ear to the rack. The
thumbscrews should thread through the nut clips (or cage nuts) and
fasten completely and evenly (see
Figure 11).
Figure 11 Rack Hinges on the
To p R i gh t o f M od u l e
10 Install the left rack ear:
a With the I/O station door open, open the left door (the access door) of
the module and pull the door toward you in order to access the slot
located in the lower left corner of the module. (The flexible door hinge
allows the door to be pulled away from the module, providing access to
the slot.)
Note: You may need to pull the door toward you in order to access
the slot.
b Install the left rack ear in the same manner as the right rack ear.
