Quantum Scalar i500: Rackmount Kit Installation
6-01492-04 Rev A
December 2013
8 Installing the Rackmount Shelves
e Install the shelf’s front studs in the rack’s front mounting holes (see
Figure 3).

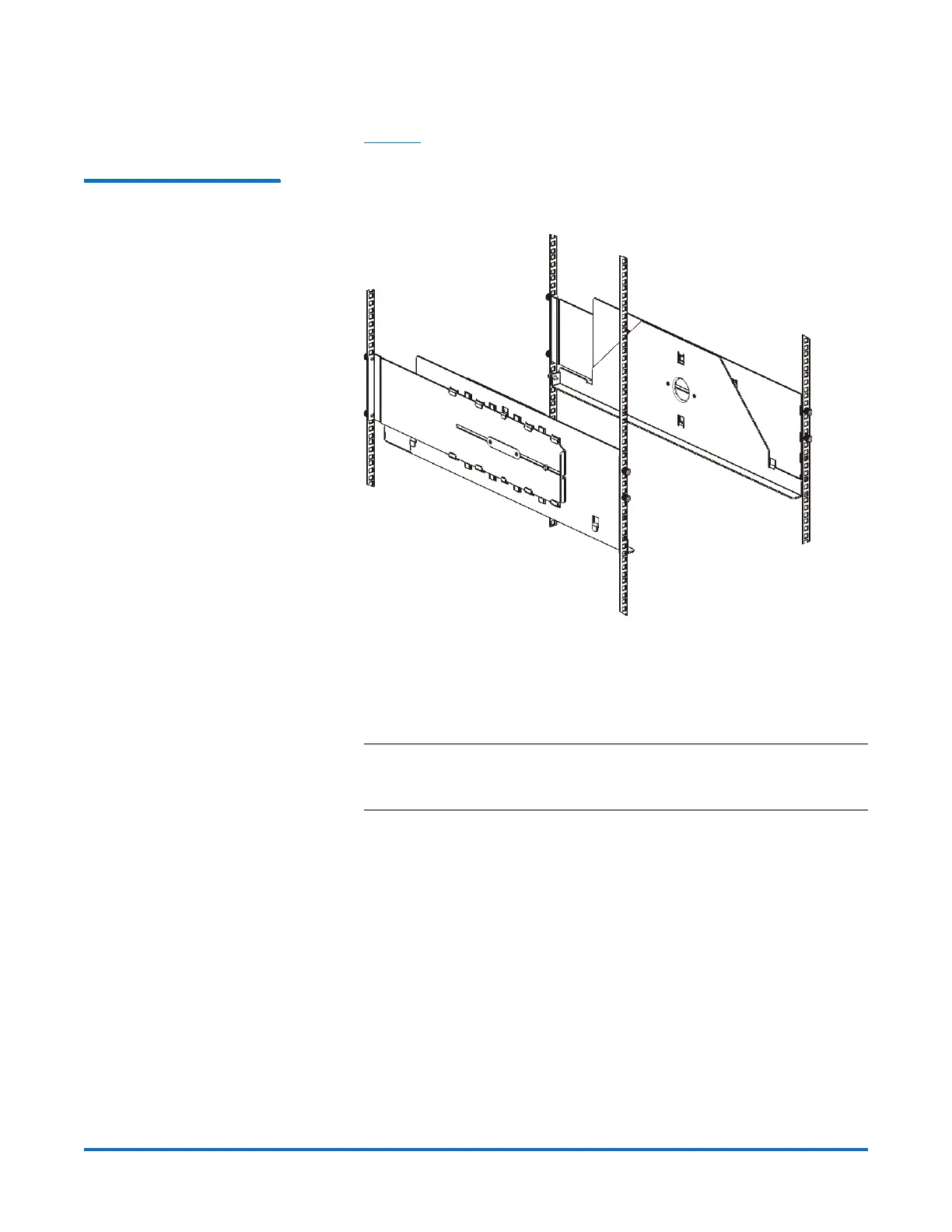

Figure 3 Front of Rails
f If the studs do not reach the mounting holes, pull the front of the shelf
toward you to extend it to the necessary length. Hold the base of the
shelf with one hand, and pull the extensible part of the shelf with your
other hand.
Note: Extending the shelves can be difficult, but they are designed to
be resized by hand. Do not use tools to resize the shelves, and
never take them apart.
g Insert the shelf’s front studs into the rack’s front mounting holes.
h Fasten a thumbnut to the end of each stud. Secure the rack tightly, so
that the ferrule fits snugly within the hole in the rack.
4 Visually make sure that both shelves are level, and that they are aligned
properly within the rack.
5 Make sure that all thumbnuts are fastened tightly. Some thumbnuts may
have loosened during installation.
