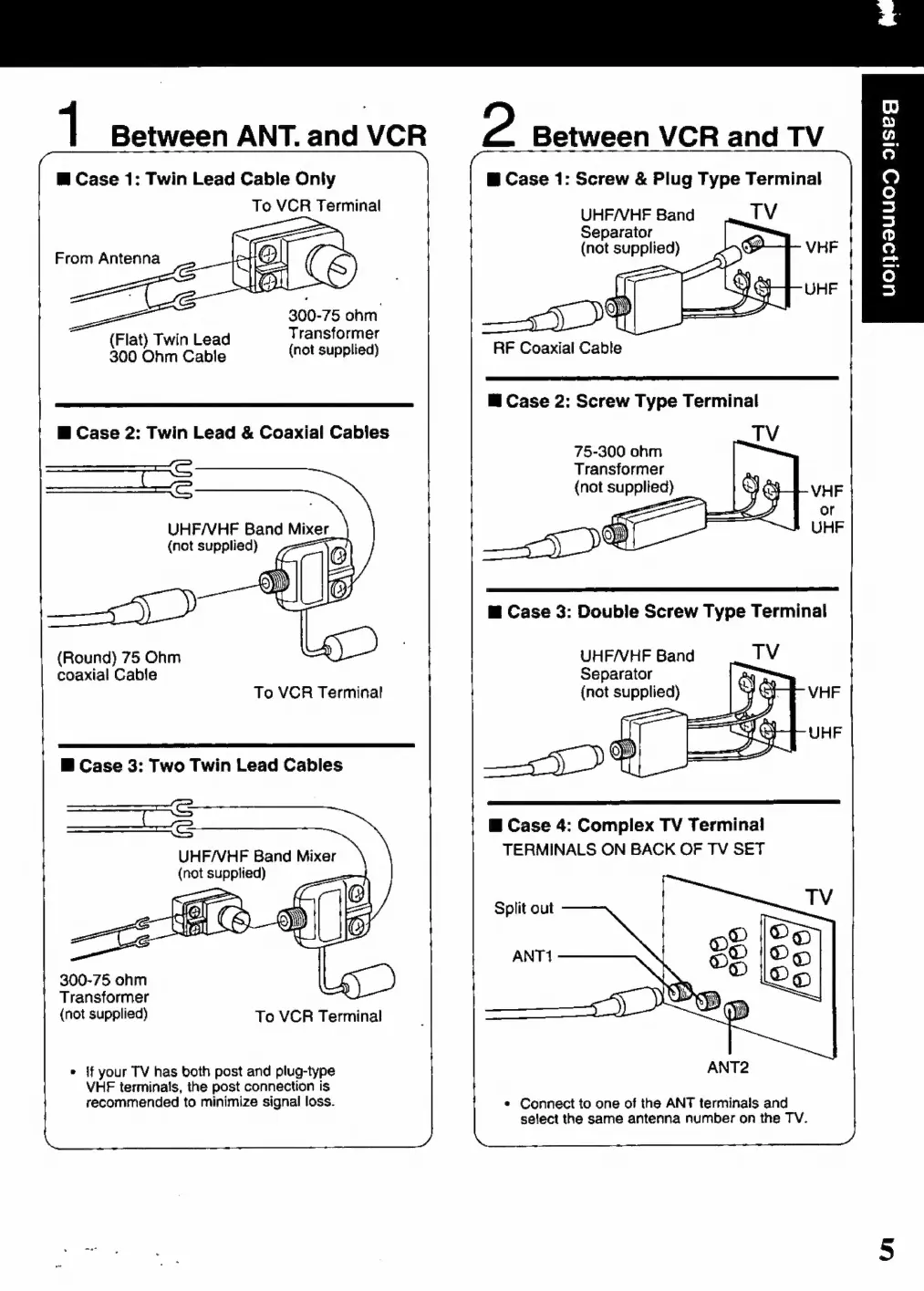

1 Between ANT. and VCR
Ш Case 1: Twin Lead Cable Only
To VCR Terminal
From Antenna
300-75 ohm
Transformer
(not supplied)
(Flat) Twin Lead
300 Ohm Cable
BB Case 2: Twin Lead & Coaxial Cables
== е
UHF/VHF Band Mixer
(not supplied)
(Round) 75 Ohm
coaxial Cable
To VCR Terminal
В Case 3: Two Twin Lead Cables
ар
UHF/VHF Band Mixer
(not supplied)
300-75 ohm
Transformer
(not supplied) To VCR Terminal
* if your TV has both post and plug-type
VHF terminals, the post connection is
recommended to minimize signal loss.
Ш Case 1: Screw & Plug Type Terminal
UHF/VHF Band
Separator
(not supplied)
RF Coaxial Cable
Ш Case 2: Screw Type Terminal
75-300 ohm
Transformer
(not supplied) -
UHF/VHF Band TV
Separator à
(not supplied)
Ш Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Split out
ANT2
« Connect to one of the ANT terminals and
select the same antenna number on the TV.
иоцэәииод DISEG
