Queclink GV500MA - Parts List; Interface Definition

GV500MAUserManual
TRACGV500UM0011
2.2. Parts List
Table 3: Part List
Name
GV500MA Locator
49.49mm*48.5mm*21.9mm
2.3. Interface Definition
The GV500MA has an OBD II connector. The sequence and definition of the OBD II connector
are shown in following figure:

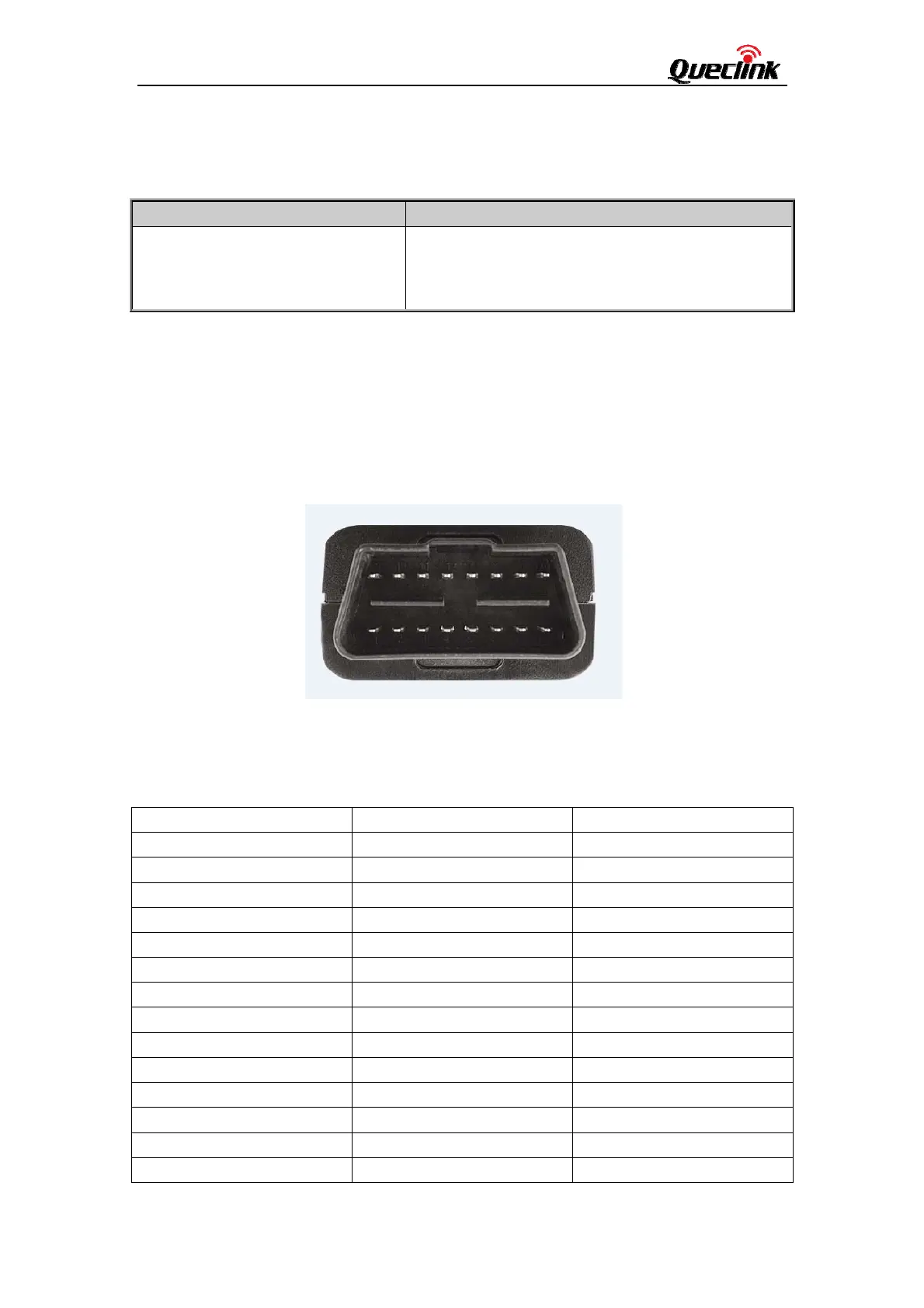

Figure 2. The OBD II connector on the GV500MA
Table 4: Description of OBD II Connections
Index Description Comment
1 reserved
2 reserved
3 NC
No connect
4 GND Power and digital ground
5 GND Power and digital ground
6 NC
No connect
7 reserved
8 reserved
9 reserved
10 reserved
11 NC
No connect
12 reserved
13 reserved
14 NC
No connect
1
2
3 4
5
6 7
8
1615
1413
12
1110
9
‐8‐
